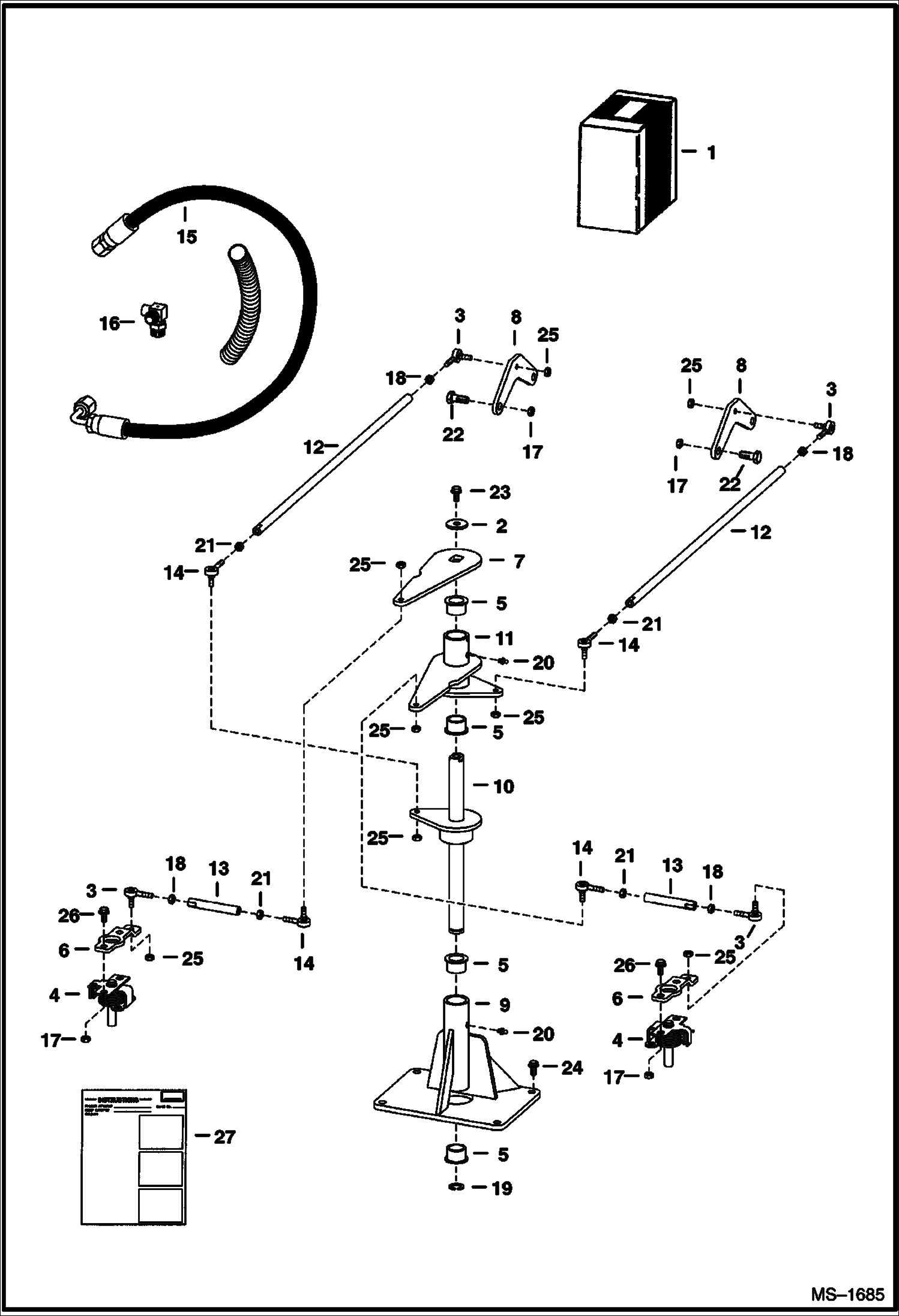

Запчасти Bobcat 800s PEDESTAL STEERING KIT (S/N 5144 18904, 5145 20062, 5146 20146 & Below) ACCESSORIES & OPTIONS

1

6714927

KIT Ref. 2-27

2

619021

WASHER, 5

3

6578363

ROD END

4

6673241

SPRING must be replaced in pairs - Was 6672767 - A

5

6703879

BUSHING, PLASTIC W/tab

6

6715967

LEVER

7

6715109

BRACKET

8

6716602

MOUNT Was 6715110 - A

9

6716291

PEDESTAL

10

6715117

SHAFT

11

6715121

SHAFT

12

6715123

LINK

13

6715124

LINK

14

6715126

BALL JOINT

15

6715127

HOSE

16

6715653

TEE

17

95D6

NUT Was 91D000006B - A

18

8D4

NUT

19

9JM150

RETAINER

20

10H25

FITTING, GREASE 5

21

13D4

NUT

22

17C620

BOLT

23

45C620

BOLT

24

84G3720

BOLT

25

86D4

NUT

26

35C612

BOLT

27

6900442

INSTRUCTIONS
