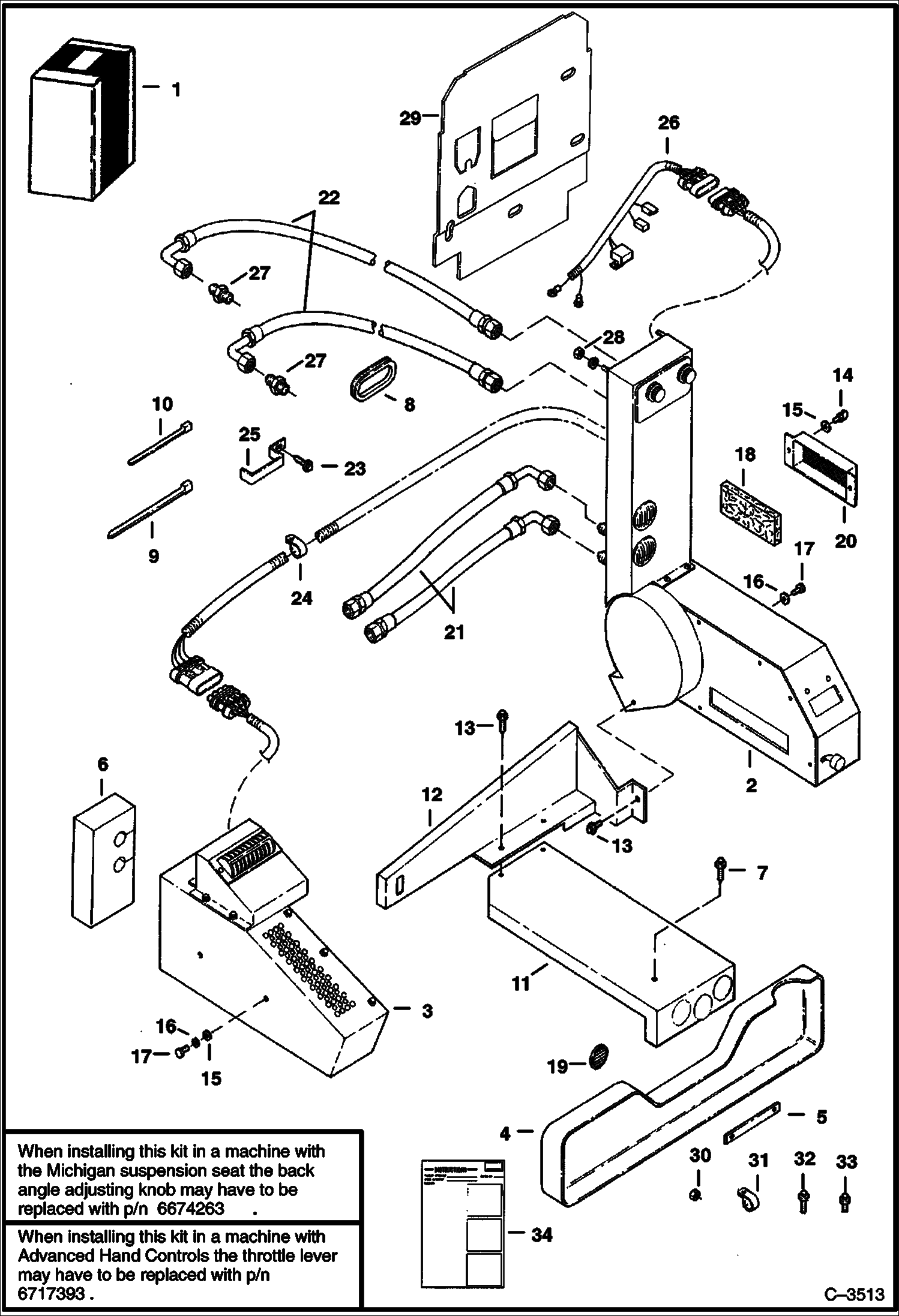

Запчасти Bobcat 800s HEATER KIT - DUAL (Fresh Air) ACCESSORIES & OPTIONS

1

6717252

HEATER KIT Ref. 2-34

2

6673893

HEATER See Illustration HEATER - DUAL/ E2447 left

3

6673894

HEATER See Illustration HEATER - DUAL/ C3516 right

4

6717447

SHIELD not in kit

5

6717433

BRACKET

6

6674021

INSULATION

7

84G3120

SCREW

8

6512067

GROMMET

9

6624289

STRAP, TIE

10

6660883

TIE

11

6669652

DUCT underseat

12

6669650

VENT side

13

6705792

SCREW

14

6660930

THUMBSCREW

15

25E14

WSHR flat

16

4E4

WASHER lock

17

17C412

BOLT 5

18

6660880

FILTER, AIR HEATER CAB

19

6660885

LOUVER

20

6674151

COVER

21

6673896

HOSE

22

6673895

HOSE

23

84G3712

BOLT 5

24

30H33

CLIP

25

6660795

GUIDE

26

6660894

HARNESS

27

6710276

CONNECTOR

28

6670142

NUT

29

6717834

INSULATION seat back

30

83D5

NUT 5

31

31H46

CLAMP

32

84G3110

SCREW

33

35C520

BOLT

34

6900655

INSTRUCTIONS
