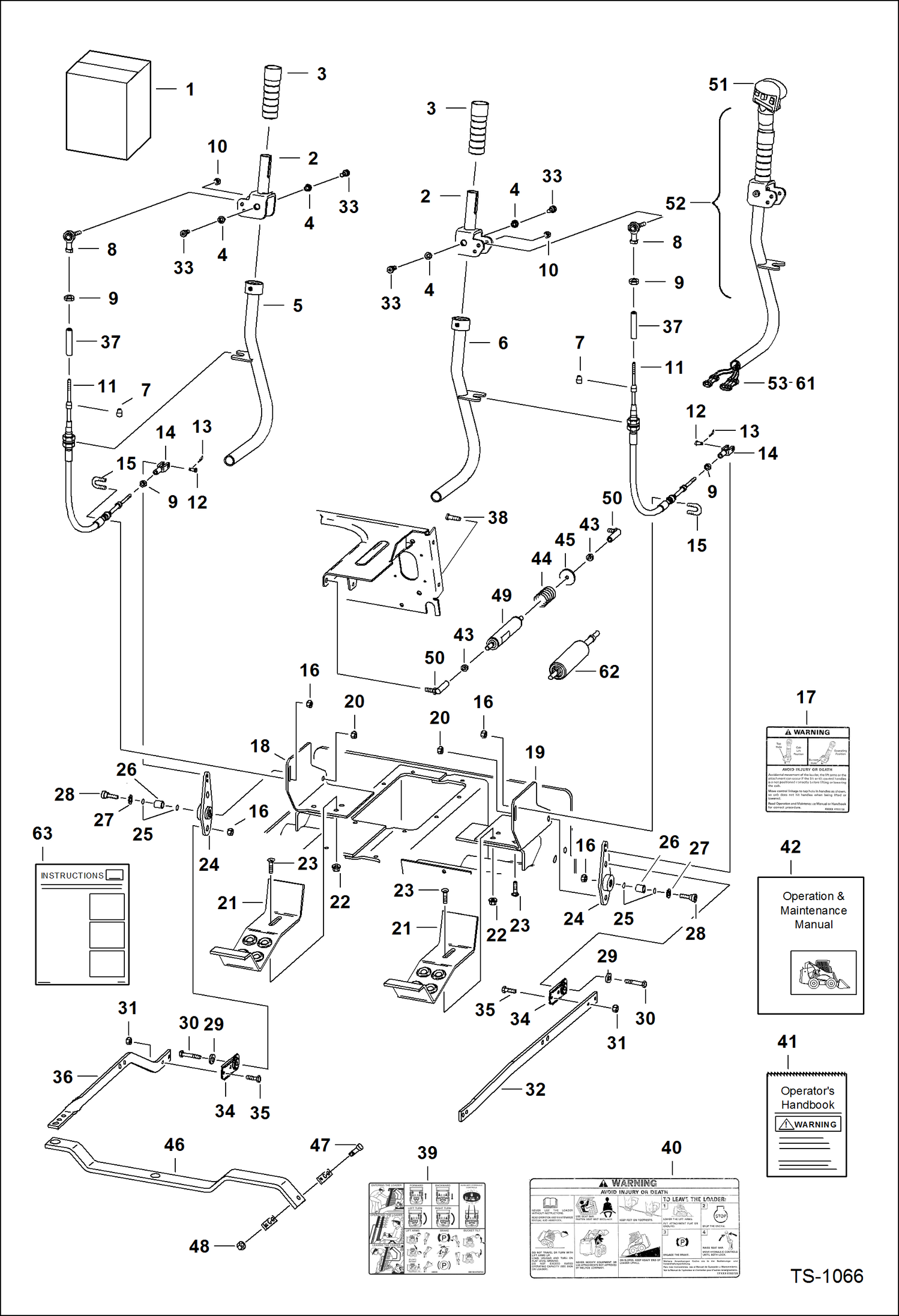

Запчасти Bobcat 800s HAND CONTROLS KIT ACCESSORIES & OPTIONS

1

KIT NLA - Multi switch handle - Ref. 2-45, 47, 48, 52 & 62 - Order components - Was SALES - A

2

6707349

LEVER

3

6707367

GRIP

4

6702990

BUSHING bronze sleeve

5

6707351

LEVER

6

6707352

LEVER

7

6666534

SEAL

8

6631036

JOINT

9

8D4

NUT

10

86D4

NUT

11

6666379

CABLE - Was 6658613 - B

12

4F4051

PIN

13

6513495

COTTER PIN

14

2J4200

CLEVIS

15

6592766

U-BOLT

16

83D5

NUT 5

17

6703726

DECAL warning

18

6706420

MOUNT cable

19

6706421

MOUNT cable

20

85D6

NUT, 5

21

6702776

BRACKET

22

57D6

NUT 5

23

37C620

BOLT carriage

24

6706281

BELLCRANK W/Ref. 26

25

58K014

O-RING 10

26

6702782

BUSHING bronze

27

6655781

BEARING thrust

28

38C816

BOLT shoulder

29

6563914

WASHER

30

38C610

BOLT - Was 6704285 - A

31

85D4

NUT 5

32

6712046

LINK tilt - Was 6703122 - B

33

38C606

BOLT

34

6658682

BEARING swivel

35

17C410

BOLT 10

36

6712047

LINK lift - Was 6702773 - B

37

6658930

BOOT

38

25G612

SCREW socket hex head

39

6703724

DECAL operating

40

6703725

DECAL warning

41

6708159

HANDBOOK, OPERATOR'S W/WIRE ROPE

41

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

41

6558310

SLEEVE wire rope

42

6724035

MANUAL operator

43

8D6

NUT 5 not in kit

44

6703463

SPRING

45

619021

WASHER, 5

46

LINK See Illustration CONTROL PEDALS/ B20130 not in kit

47

38C612

BOLT

48

59D6

NUT

49

GAS SPRING NLA - Japan Option - Order Ref. 62 - Was 6649551 - A

50

6599744

BALL JOINT not in kit

51

6680457

HNDL/4 SWITCH PWM R.H. - multi switch - PWM - Also Order Ref. 56, 57, 60 & 61 - Was 6675466 - A

51

6640690

PIN

51

6641176

SEAL

51

6662257

PIN

51

6680412

HANDLE ASSY L.H. - multi switch - Also Order Ref. 53, 54, 55, 58 & 59 - Was 6707976 - A

51

6640690

PIN

51

6640691

PIN

51

6641176

SEAL

51

6662257

PIN

51

6680447

DECAL Was 6677370 - A

52

LEVER ASSY. NLA - R.H. - multi switch style - W/Ref. 2 - 4, 6, 33, 51, 56, 57, 60 & 61 - Order component parts - Was 6710754 - A

52

LEVER ASSY. NLA - L.H. - multi switch style - W/Ref. 2 - 5, 33, 51 & 53, 54, 55, 58 & 59 - Order component parts - Was 6707366 - A

53

6641179

CONNECTOR 2-pin

53

6640699

CONNECTOR 3-pin

54

6641180

LOCK Use W/ 2-pin connector

54

6640700

LOCK 3-pin

55

6641178

CONNECTOR 2-pin

56

6641173

CONNECTOR 6-pin

57

6641181

LOCK 6-pin

58

6664599

CONNECTOR 3-pin triangle

59

6664800

LOCK 3-pin triangle

60

6662246

CONNECTOR 6-pin

61

6662252

LOCK 6-pin

62

7188108

GAS SPRING

63

6724592

INSTRUCTIONS - Was 6722847 - B
