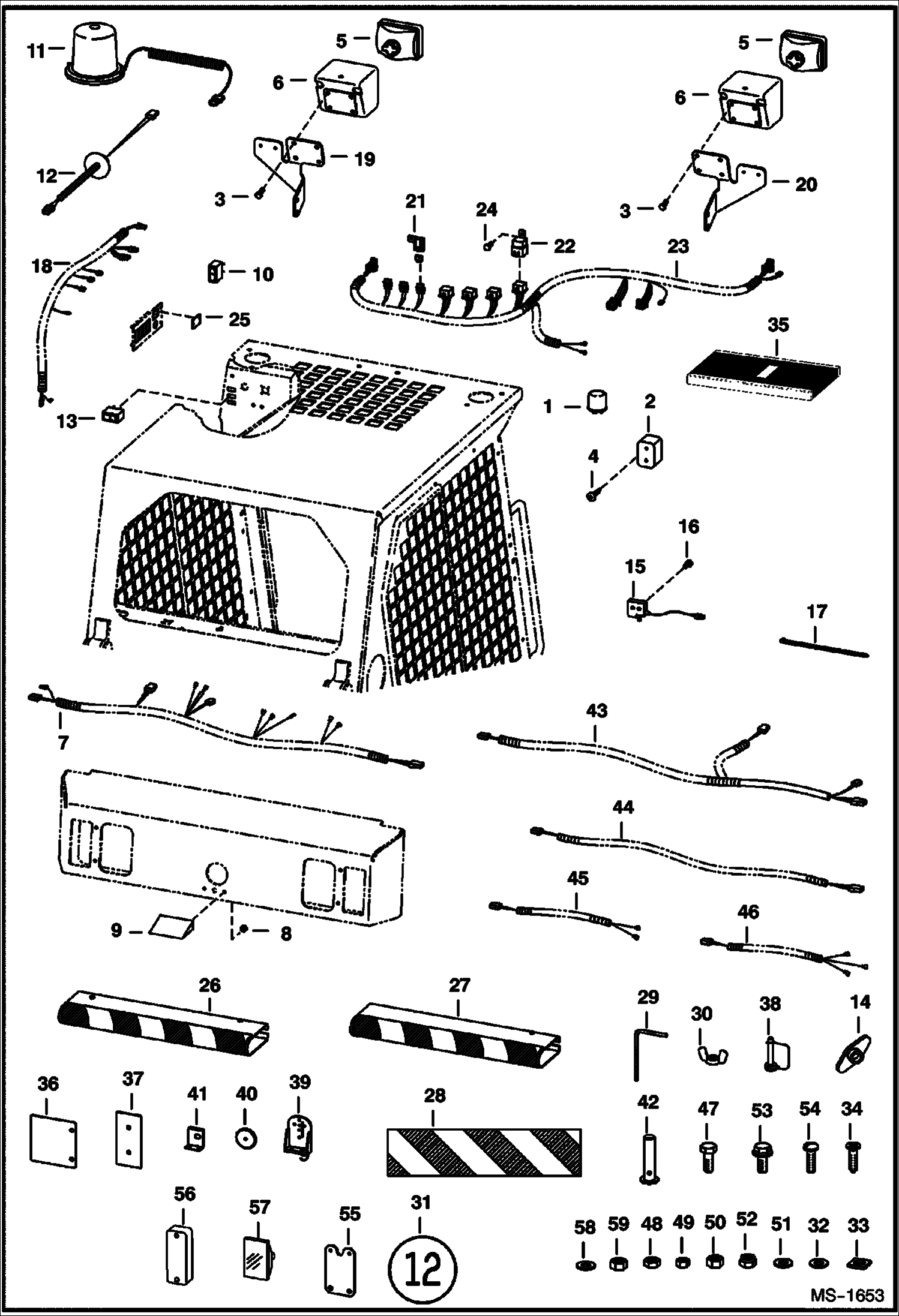

Запчасти Bobcat 800s EUROPEAN ACCESSORIES (Road Kit) ACCESSORIES & OPTIONS

1

6557904

FLASHER

2

6665727

LIGHT

2

6666567

BULB 5W

2

6666568

BULB 21W

2

6666563

LENS

3

17C508

BOLT

4

58G808

SCREW

5

6665728

LIGHT front

5

6666570

BULB 40/45W

5

6666564

HOUSING

5

6666565

LENS

5

6666566

GASKET

6

6707804

HOUSING light

7

6709048

HARNESS for two-piece door

7

6714546

HARNESS for one-piece door

8

1DM6

NUT

9

6665729

LIGHT license plate

9

6666569

BULB 5W

10

6668816

SWITCH

11

6665730

LIGHT

12

6708318

HARNESS beacon

13

6668815

SWITCH hazard

14

6647668

KNOB clamping

15

6661150

SWITCH, ROLLER MICRO

16

85G616

SCREW 10

17

6610510

TIE

18

6710481

HARNESS side console

19

MOUNT NLA - light - L.H. - Was 6713150 - A

20

MOUNT NLA - light - R.H. - Was 6713151 - A

21

6654805

FUSE 10A Was 6961388 - A

21

6657305

HOLDER fuse

21

6657306

CAP, FUSE

22

6670312

SWITCH, MAGNETIC relay

23

6711728

HARNESS boom light

24

84G2516

BOLT

25

6669144

INDICATOR

26

6713842

SHIELD L.H. - W/Ref.

27

6713841

SHIELD R.H. - W/Ref.

28

DECAL NLA - stripe - Was 6713840 - A

29

6714086

SCREW clamping

30

35DM8

WING NUT

31

6714351

DECAL speed

32

6557831

WASHER

33

6559447

WASHER square

34

6669225

BOLT

35

6665860

KIT side mirror

36

6713401

COVER rear work light

37

6713992

COVER tail light

38

6670668

PIN

39

6670620

MOUNT

40

6670621

LENS

41

6713724

BRACKET brake light switch

42

6713990

PIN

43

6713985

HARNESS Euro light

44

6713995

HARNESS brake light

45

6713993

HARNESS marker light

46

6713994

HARNESS headlight

47

1CM825

BOLT

48

7D6

NUT

49

12D6

NUT 10

50

12D10

NUT

51

17E6

WASHER 10 helical spring lock

52

49DM8

NUT

53

84G3716

SCREW 5

54

85G1010

SCREW

55

6713269

MOUNT rear work light

56

6707789

LIGHT

56

6666568

BULB 21 W

56

6667887

BULB 21/5 W

56

6668007

SCREW

56

6668010

LENS

57

6671027

LIGHT for one-piece rear door

58

25E11

WASHER

59

4DM5

NUT
