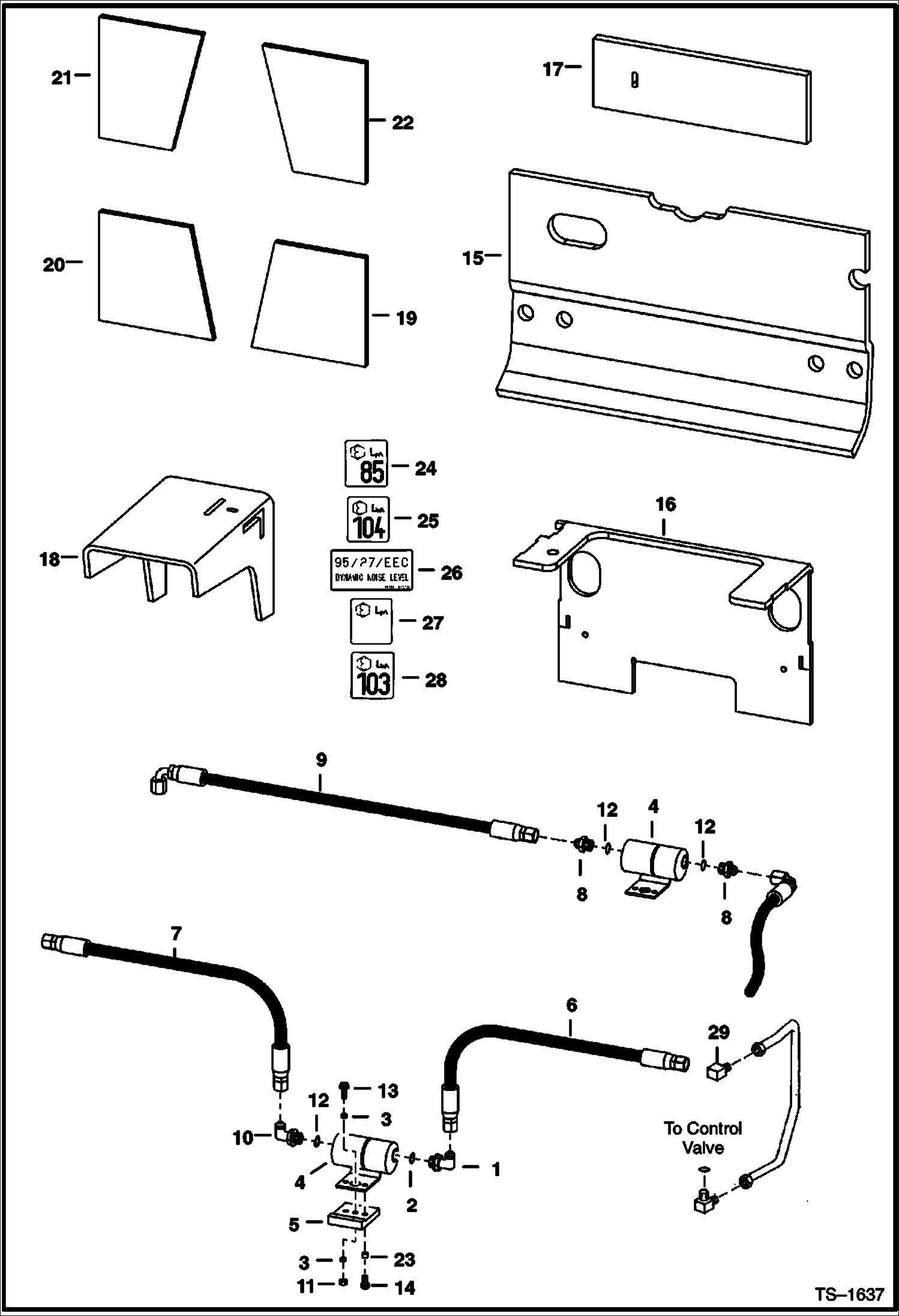

Запчасти Bobcat 800s EUROPEAN ACCESSORIES (Insulation & Hydraulic Muffler) ACCESSORIES & OPTIONS

1

6539896

ELBOW W/Ref. 2

2

79K12

O RING 10 Was 91F000008B - A

3

6562619

BUSHING throttle

4

6659982

MUFFLER

5

6705333

MOUNT

6

HOSE NLA - Order 6717219 & Ref. 29 - Was 6714949 - A

6

6717219

HOSE

6

6718073

HOSE

7

6714950

HOSE

7

6718072

HOSE

8

6715717

ADAPTER W/Ref. 12 - tapered boss face - Was 6715392 - A

8

97K10

O-RING 10 flared end

9

6715436

HOSE

10

17KB1212

FITTING, HYD ELBOW W/Ref. 12 - tapered boss face - Was 17KN00008B

10

17KB1212

FITTING, HYD ELBOW W/Ref. 12 - tapered boss face - Was 17KN00008B

10

97K12

O'RING flared end

11

85D6

NUT, 5

12

99K12

O RING tapered boss face

13

35C616

BOLT 5

14

84G3724

BOLT

15

6715106

INSULATION rear door

16

6715195

INSULATION steering

17

6715389

INSULATION pedal

18

6715390

INSULATION trans

19

6731534

INSULATION panel - Was 6715391 - A

20

6715393

INSULATION panel

21

6731535

INSULATION panel - Was 6715434 - A

22

6715435

INSULATION panel

23

6715744

BUSHING

24

6579385

DECAL noise level - Europe

25

6579404

DECAL noise level - Europe

26

6715428

DECAL dynamic noise level - Europe

27

6719399

DECAL noise level - Europe

28

6579403

DECAL noise level - Europe

29

11K8

ELBOW W/Ref. 12 - tapered boss face - Was 11KN00008B - A

29

77F8

ELBOW W/Ref. 12 - tapered boss face - Was 77FN00008B - A

29

97K12

O'RING flared end
