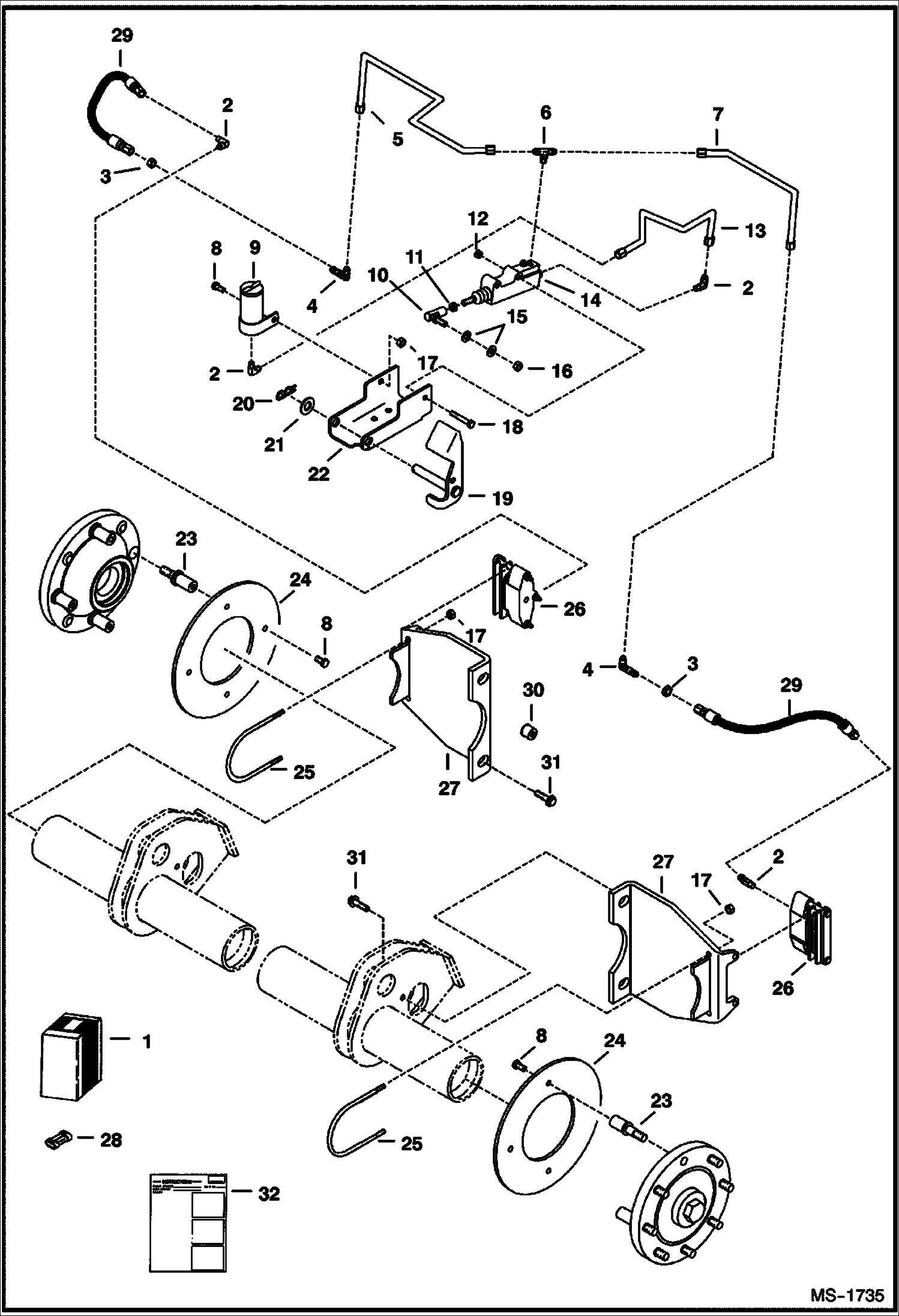

Запчасти Bobcat 800s EUROPEAN ACCESSORIES (Caliper Brake Kit) (S/N & Above) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-31 - Was 6732096 - A

2

83F3

ELBOW 5

3

86F3

LOCKNUT

4

88F3

ELBOW 5

5

6709398

TUBE

6

TEE NLA - Was 98F000003B - A

7

6709399

TUBE

8

17C612

BOLT 5

9

6661117

TANK

10

6599744

BALL JOINT

11

8D6

NUT 5

12

91D5

NUT 5

13

6709400

TUBE

14

6666933

CYLINDER See Illustration EUROPEAN ACCESSORIES/ C3403

15

25E17

WASHER 5

16

62D6

NUT 5

17

95D6

NUT Was 91D000006B - A

18

17C532

BOLT 5

19

6709239

PEDAL ASSY.

20

1318565

COTTER PIN

21

25E25

WASHER 10

22

6709236

MOUNT pedal

23

6709229

BOLT

24

6709234

DISC

25

6709361

CLAMP

26

6666932

BRAKE See Illustration EUROPEAN ACCESSORIES/ C3403

27

6732070

MOUNT caliper - Was 6713517 - B

28

6667139

CAP

29

6713518

HOSE

30

6732072

SPACER

31

31C1232

SCREW

32

6901702

INSTRUCTIONS Was 6724380 - A
