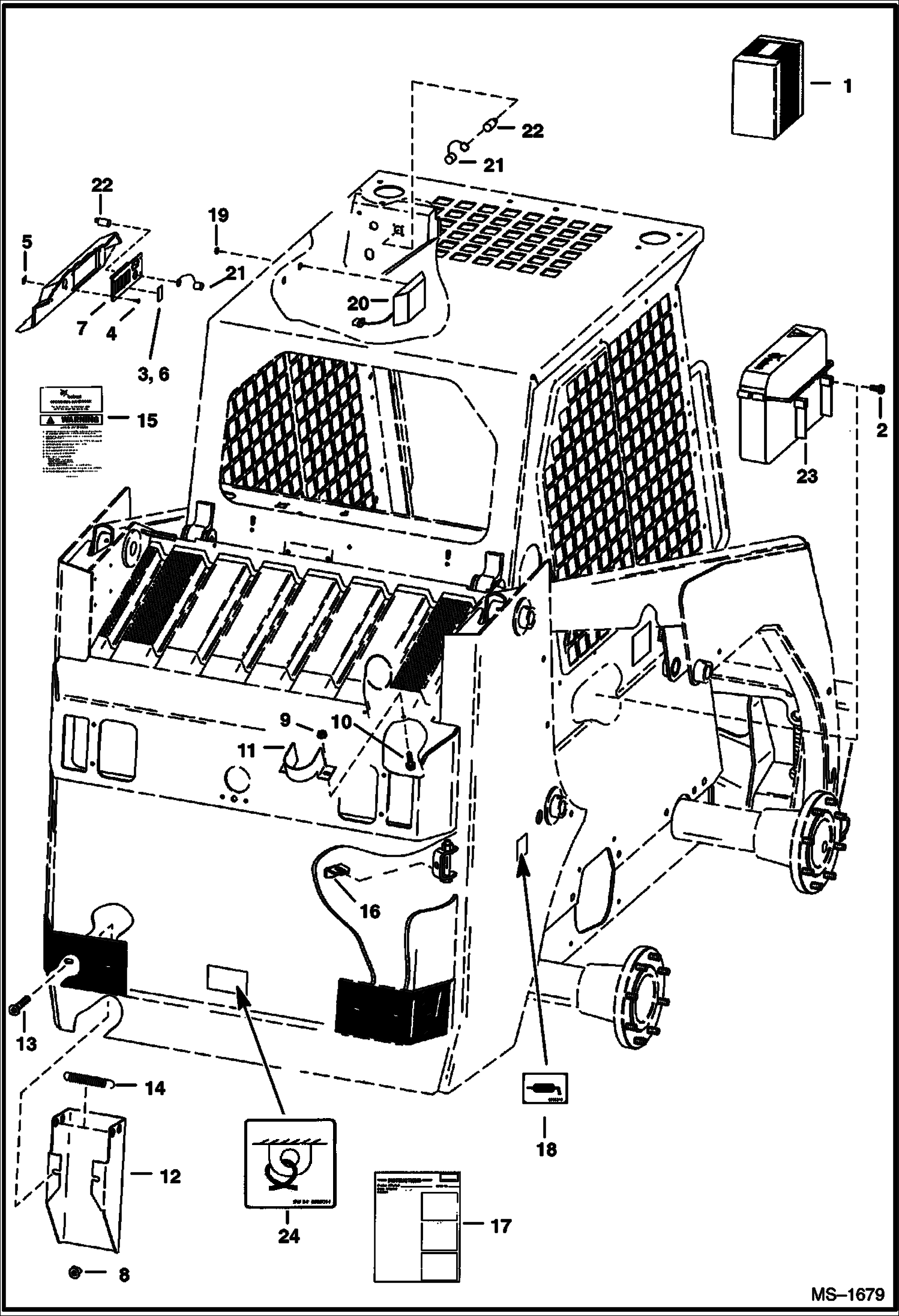

Запчасти Bobcat 800s EUROPEAN ACCESSORIES ACCESSORIES & OPTIONS

1

KIT SALES - Export accessories

2

6702642

SCREW

3

6668742

SWITCH travel control

4

6669224

BOLT

5

6669091

CLIP

6

6665314

PLUG Was 6719038 - A

7

6710527

PANEL

8

55D6

NUT Use W/ 6714064 tool holder

9

57D4

NUT Use W/ 6709092 shield

9

61D5

NUT Use W/ 6714624 shield

10

35C412

BOLT

11

6709092

SHIELD exhaust - Use W/ steel hood - Was 6704653 - A

11

6714624

SHIELD exhaust - Use W/ one-piece rear door

11

6719808

SHIELD exhaust - Use W/ 6717731 bracket

12

6709379

TOOL HOLDER Use W/ two-piece rear door - Was 6705100 - A

12

6715318

TOOL HOLDER Use W/ one-piece rear door - Was 6714064 - A

13

9G636

BOLT 5 Use W/ 6709379 tool holder

13

37C612

BOLT Use W/ 6714064 tool holder

14

6579072

SPRING Was 6700743 - A

15

6708155

KIT handbook - Was 6704832 - A

16

6701883

STOP rear door - not required for one-piece rear door

17

6722300

INSTRUCTIONS For Ref. 12-14

18

6705340

DECAL, GREASE

19

6664221

RETAINER snap in

20

6680326

LIGHT dome - Was 6664368 - A

20

6665367

BULB

20

6665353

SWITCH

21

6664224

CAP

22

6664223

OUTLET

23

6708827

CONTAINER manuals

24

6595014

DECAL tow hook - Was 6707867 - A
