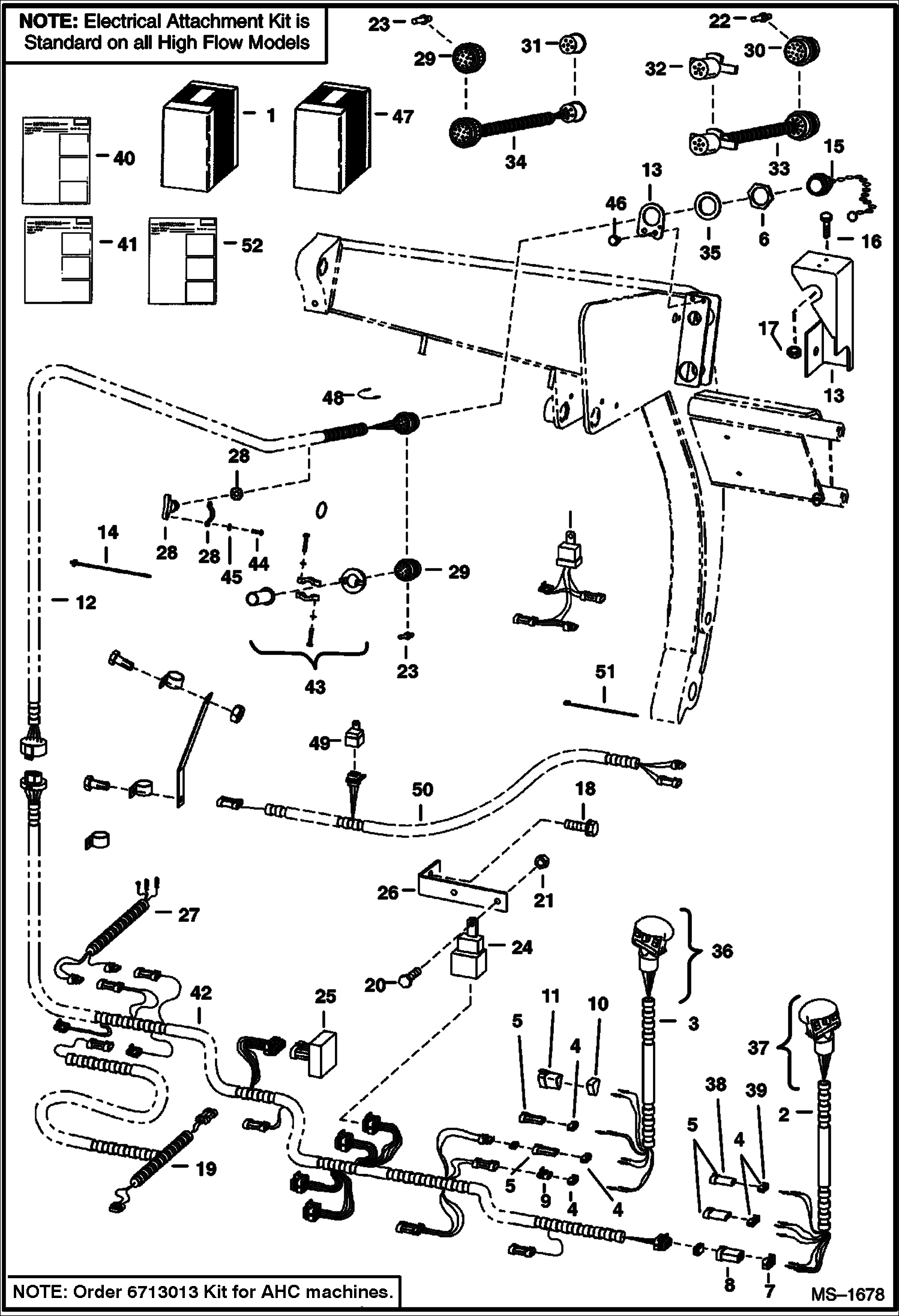

Запчасти Bobcat 800s ELECTRICAL CONTROLS KIT (Attachments) ACCESSORIES & OPTIONS

1

6712820

KIT controls - W/handles - Ref. 2-30 & 42 - SEE NOTE

2

6680413

HANDLE ASSY R.H. - Also Order Ref. 4, 5, 7 & 8 - Was 6706340 - A

2

6680457

HNDL/4 SWITCH PWM R.H. - Also Order Ref. 7, 8, 38 & 39 - PWM - Was 6675466 - A

2

6640690

PIN

2

6641176

SEAL

2

6640690

PIN PWM

2

6641176

SEAL PWM

2

6662257

PIN PWM

3

6680412

HANDLE ASSY L.H. - Also Order Ref. 4, 5 & 9-11 - Was 6707976 - A

3

6640690

PIN

3

6640691

PIN

3

6641176

SEAL

3

6662257

PIN

3

6680447

DECAL Was 6677370 - A

4

6641180

LOCK Use W/ 2-pin connector

4

6640700

LOCK 3-pin

4

6641180

LOCK Use W/ 2-pin connector - PWM

4

6640700

LOCK 3-pin

5

6641179

CONNECTOR 2-pin

5

6640699

CONNECTOR 3-pin

5

6641179

CONNECTOR 2-pin - PWM

5

6640699

CONNECTOR 3-pin - PWM

6

6664036

NUT

7

6641181

LOCK 6-pin

8

6641173

CONNECTOR 6-pin

9

6641178

CONNECTOR 2-pin

10

6664800

LOCK 3-pin triangle

11

6664599

CONNECTOR 3-pin triangle

12

6710299

HARNESS, ATTACHMENT PWM

13

6711621

MOUNT box shaped

13

6714999

MOUNT flat - one hole for harness

14

6624289

STRAP, TIE Was 6610510 - A

15

6664035

CAP

16

45G508

BOLT

17

50D5

NUT

18

84G3712

BOLT 5

19

6706552

HARNESS for grader

20

45G1212

BOLT

21

50D12

NUT

22

6664040

PIN

23

6664041

SOCKET

24

6670312

SWITCH, MAGNETIC relay - Was 6665005 - A

25

6664388

DIODE memory

26

6702650

MOUNT

26

6717863

MOUNT

27

6706446

HARNESS

28

6649028

CLAMP

29

6665001

CONNECTOR, ELECTRICAL W/Ref. 43 - not in kits - also Order (6) of Ref. 23 - Was 6664034 - A

30

6667569

CONNECTOR, RECEPTACLE W/Ref. 43 - Also Order (14) of Ref. 22 - Was 6664039 - A

31

6664181

CONNECTOR not in kits

32

6664182

CONNECTOR not in kits

33

6706392

HARNESS not in kits - connects old loader harness to new attachment harness - W/Ref. 30 & 34

34

6706391

HARNESS not in kits - connects new loader harness to old attachment harness - W/Ref. 31 & 32

35

6664037

WASHER

36

6706568

KIT handle - Ref. 3-5 & 9-11 & 40

37

6706567

KIT handle - W/Ref. 4, 5, 7, 8 & 40

37

6706735

KIT handle - W/Ref. 7, 8 & 38-40 - PWM

38

6662246

CONNECTOR 6-pin - PWM

39

6662252

LOCK 6-pin - PWM

40

6722759

INSTRUCTIONS for ref. 3-36

41

6722758

INSTRUCTIONS for control elec. kit

42

6710300

HARNESS

43

6669286

CLAMP W/ saddles

44

45G1212

BOLT

45

25E6

WSHR

46

84G3110

SCREW Was 84G003112B - B

47

6716799

KIT dual function aux. - Ref. 48-52

48

6716844

HARNESS jumper

49

6670312

SWITCH, MAGNETIC relay

50

6716798

HARNESS KP diverter

51

6624289

STRAP, TIE

52

6900601

INSTRUCTIONS
