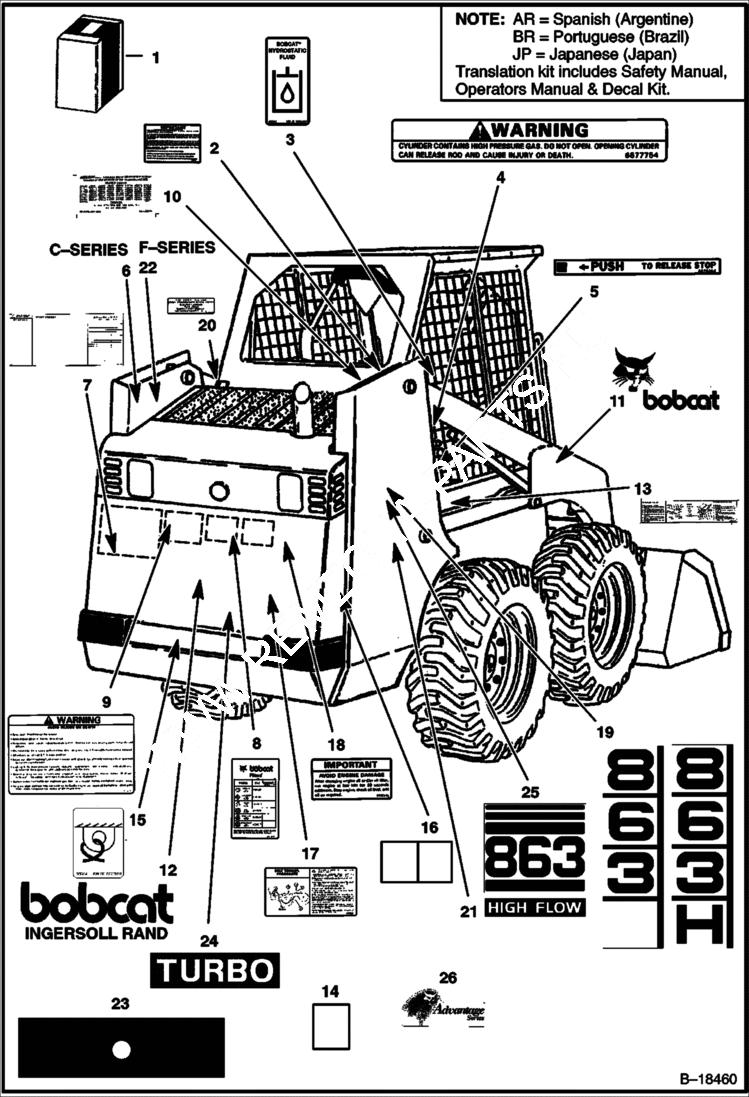

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

6713266

KIT decal - Ref. 2-16 - also Ref. 2-18 on Ill. B-18459 - model decal not included

1

6715609AR

KIT translation - SEE NOTE

1

KIT NLA - translation - SEE NOTE - Was 6715609BR - A

1

6715611AR

KIT decal - SEE NOTE

1

6715611BR

KIT decal - SEE NOTE

1

6715611JP

KIT decal - SEE NOTE

2

6560573

DECAL spark arrestor - Was 6708937 - A

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6708207

DECAL ''C'' series

7

DECAL NLA - service - Order 6734534 - Was 6710457 - A

7

6734534

DECAL, SERVICE service/warning/filters - Was 6718298 - B

8

DECAL NLA - filters - Order 6734534 - Was 6710455 - A

9

DECAL NLA - warning - Order 6734534 - Was 6579511 - A

10

DECAL NLA - patent - Was 6557224 - C

11

6727309

DECAL, LOGO RH R.H. - Bobcat head - Was 6702826 - A

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - Was 6702827 - A

12

DECAL NLA - Bobcat Logo - two piece door - 9'' (229mm) x 22.75 (578mm ) - Was 6727307 - A

12

DECAL NLA - Logo - one piece door 10.3'' (262mm) x 28.5 (723mm) - Was 6727311 - A

13

6706558

DECAL, OPERATION lift arm support

14

6565200

DECAL, FILTER

15

6727595

DECAL Was 6595014 - B

16

6715991

DECAL fuse - Was 6707786 - A

17

6705221

DECAL belt tension

18

6702942

DECAL warning

19

6710450

DECAL model no. 863 R.H.

19

6713007

DECAL model no. 863H R.H. - not in kit

20

6708929

DECAL, COOLANT propylene glycol

21

6727913

DECAL high-flow - not in kit - Was 6714534 - A

22

6714858

DECAL ''F'' series

23

6714242

DECAL tailgate - for one piece door

24

6727912

DECAL turbo - for one piece door - Was 6714526 - A

25

6731474

DECAL model no. - Was 6714536 - A

26

6718272

DECAL advantage series - R.H. - not in kit
