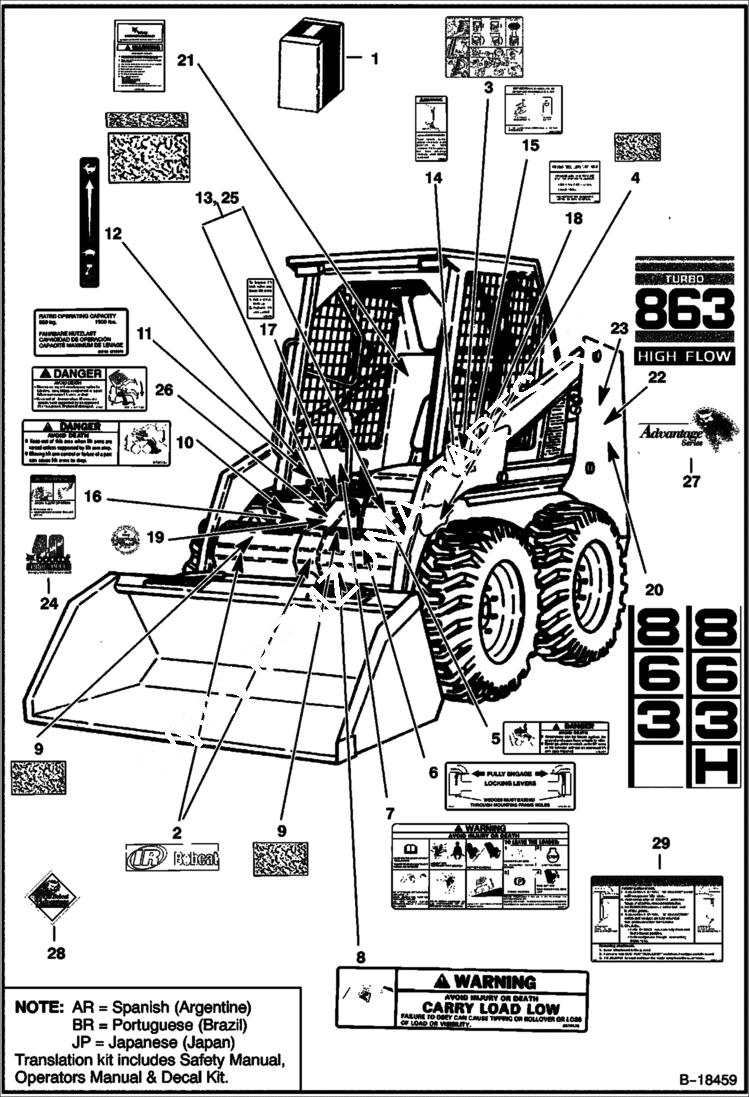

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

6713266

KIT decal - Ref. 2-18 - also includes Ref. 2-16 on Ill. B-18460 - model decal not included

1

6715609AR

KIT translation - SEE NOTE

1

KIT NLA - translation - SEE NOTE - Was 6715609BR - A

1

6715611AR

KIT decal - SEE NOTE

1

6715611BR

KIT decal - SEE NOTE

1

6715611JP

KIT decal - SEE NOTE

2

DECAL NLA - Ingersoll Rand - Was 6727310 - A

3

6703723

DECAL operating

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6702301

DECAL, DANGER

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6579510

DECAL warning

8

6579528

DECAL, WARNING carry load low

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6702302

DECAL, DANGER

11

7184775

DECAL, CAPACITY LIFT Was 6710449 - A

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6577949

SAFETY TREAD 6.8'' x 8.75'' - (172,7 mm x 222,3 mm)

14

6705720

DECAL lock shield

15

6708942

DECAL pre heat

16

6710358

DECAL warning

17

6711840

DECAL lift lock - Was 6706809 - B,D

18

6707255

DECAL seat & seat bar operating - W/seat sensor - Was NLA - D

18

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

18

6717639

DECAL seat & seat bar operating - AHC - Was 6717043 - A

18

6717639

DECAL seat & seat bar operating - AHC - W/O seat sensor

19

6705088

DECAL America's Best

20

6710451

DECAL model no. 863 L.H. - Not in Kit

20

6713008

DECAL model no. 863H L.H. - Not in Kit

21

6708154

HANDBOOK, OPERATOR'S W/WIRE ROPE

21

6708154ES

KIT handbook - Spanish

21

6708155

KIT handbook - W/ wire Rope - Not in Kit - Europe

21

6708158

HANDBOOK, OPERATOR'S W/WIRE ROPE for AHC

21

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

21

6558310

SLEEVE wire rope

21

84G3110

SCREW

22

6727913

DECAL high flow - not in kit - Was 6714534 - A

23

6731474

DECAL model no. 863 - Was 6714536 - A

24

6715912

DECAL 40th anniversary

25

6710746

SAFETY TREAD 1.5'' x 15'' (38,1mm x 381mm)

26

6717343

DECAL, DANGER

27

6718271

DECAL advantage series - L.H. - not in kit

28

6718275

DECAL Bobcat advantage

29

6717842

DECAL operation
