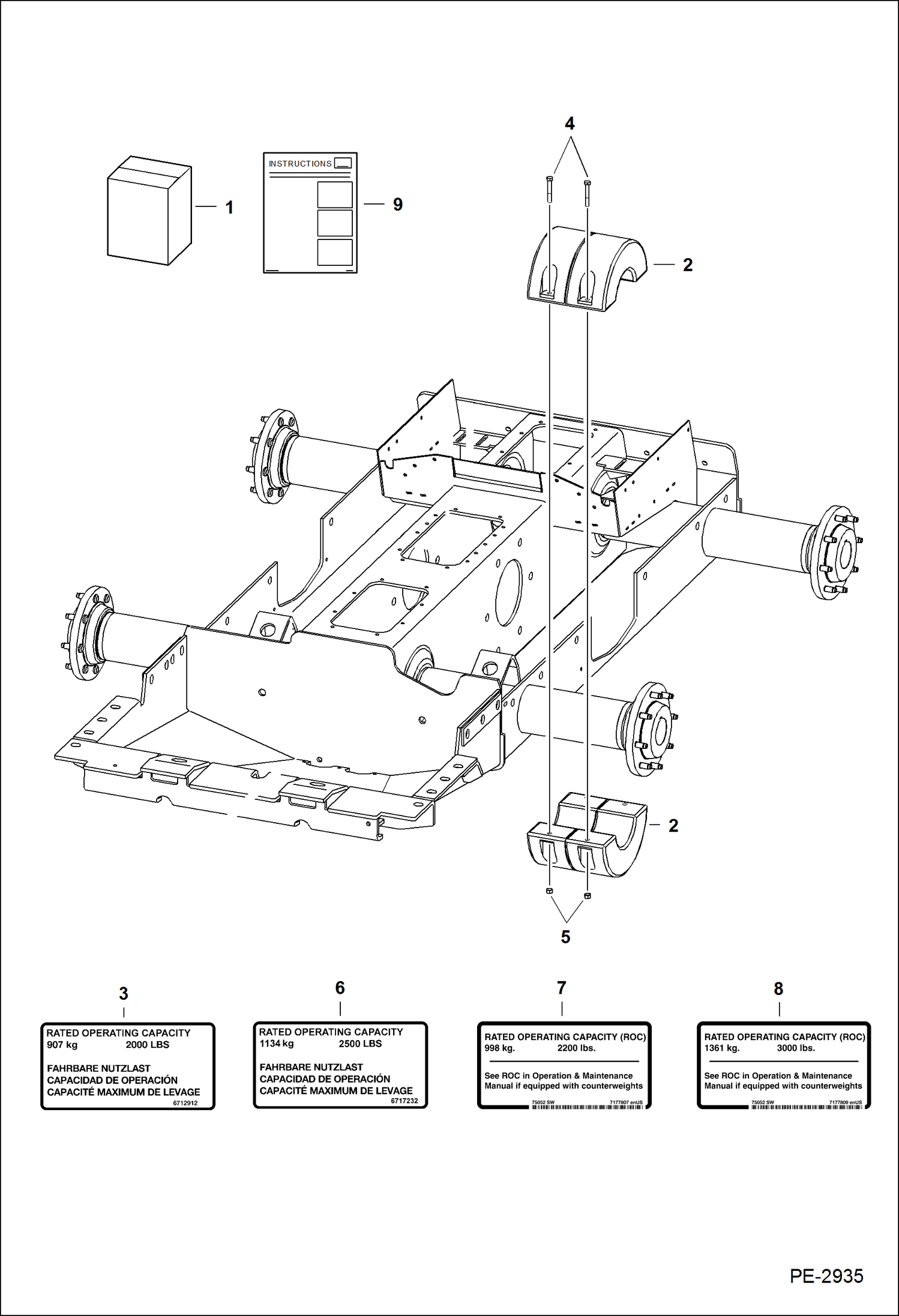

Запчасти Bobcat 800s COUNTERWEIGHT KIT (Rear Axle) ACCESSORIES & OPTIONS

1

6712911

KIT, COUNTERWEIGHT counterweight

2

WEIGHT NLA - rear axle - 19.5 lbs (8,8 kg) - 2.25'' (57,2mm) wide - Was 6712894 - A

2

6714362

COUNTERWEIGHT, AXLE REAR rear - 19,4 kg (42.8 lbs) - 114,3 mm (4.5'') wide

3

6712912

DECAL 907 kg (2000 lbs)

4

17C640

BOLT 5

5

61D6

NUT 5

6

7177808

DECAL, ROC 1134 kg (2500 lbs) - Was 6733924 - A

7

7177807

DECAL, ROC 998 kg (2200 lbs)

8

7177809

DECAL, ROC 1361 kg (3000 lbs)

9

6900366

INSTRUCTIONS Was 6724583 - A
