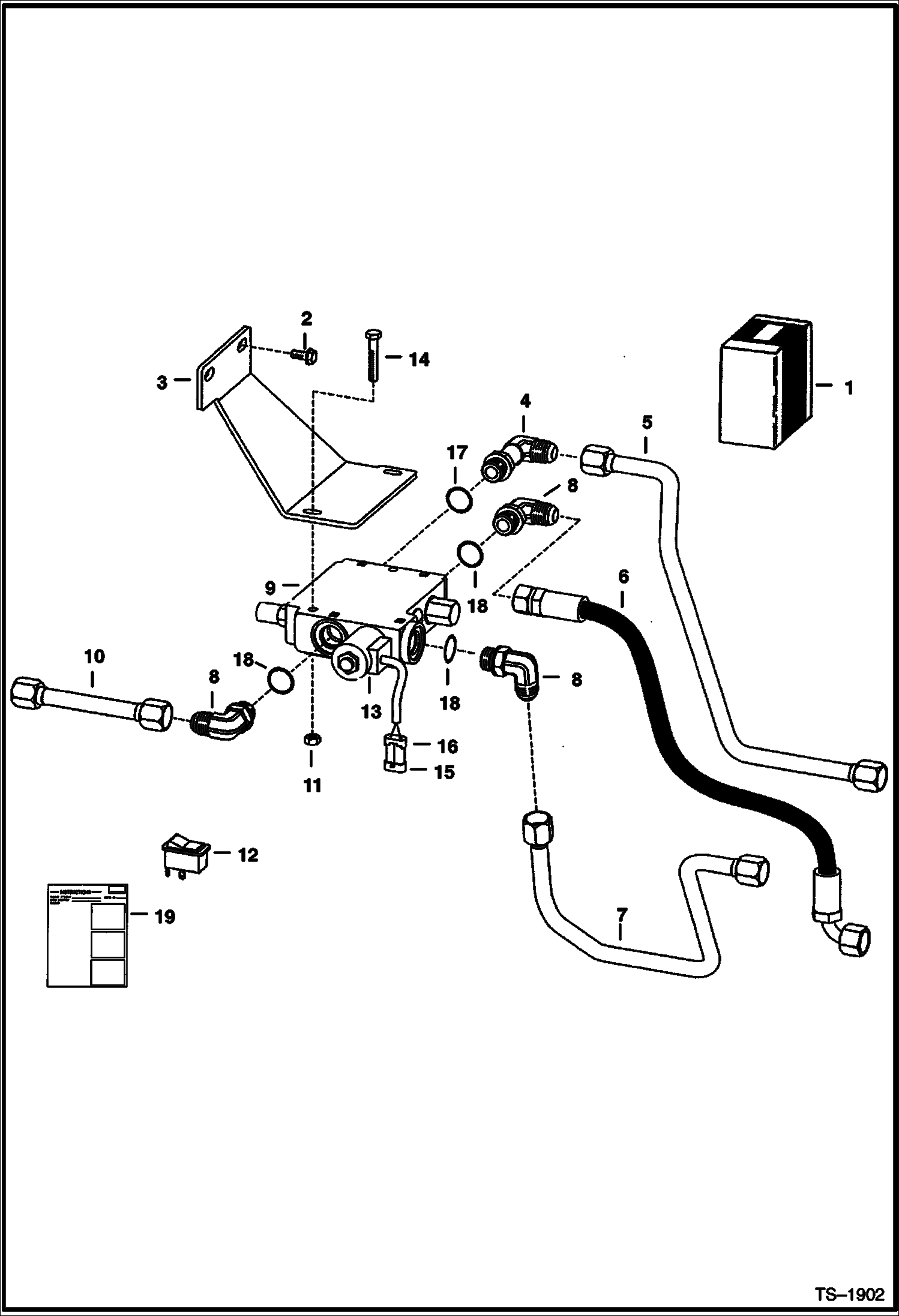

Запчасти Bobcat 800s BUCKET POSITIONING KIT (S/N 5144 28656 & Above) ACCESSORIES & OPTIONS

1

6718550

KIT Ref. 2-14 & 19

2

84G3716

SCREW 5

3

6716174

MOUNT

4

6519195

ELBOW W/Ref. 17

5

6716163

TUBELINE tilt

6

6718044

HOSE

7

6716162

TUBELINE lift

8

17KB1010

FITTING, HYD ELBOW W/Ref. 18 - tapered boss face - Was 17KV00007B - A

8

97K10

O-RING 10 flared end

9

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - Order 6673959 valve - If loader is not equipped with an on/off switch, also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 loa

10

6716160

TUBELINE

11

85D5

NUT 5

12

6668814

SWITCH

13

6672863

VALVE, SOLENOID W/Ref. 15 & 16

13

6671527

NUT

13

6670634

SEAL KIT

14

17C540

BOLT

15

6641179

CONNECTOR 2-pin

16

6641180

LOCK Use W/ 2-pin connector

17

79K10

O RING 10

18

99K10

O'RING

19

6900845

INSTRUCTIONS
