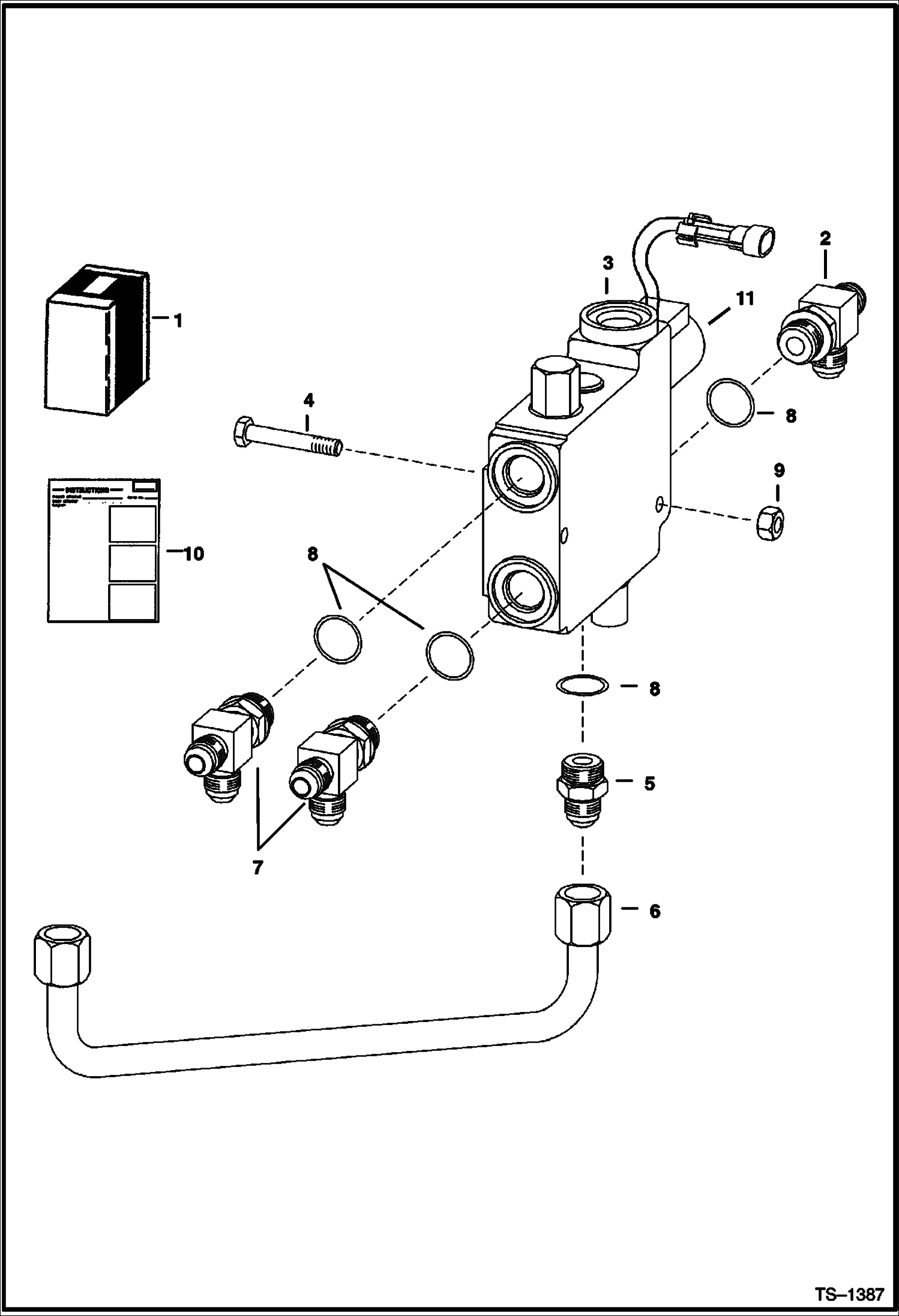

Запчасти Bobcat 800s BUCKET POSITIONING KIT (S/N 5144 28655 & Below) ACCESSORIES & OPTIONS

1

6711826

KIT See Illustration BUCKET POSITION ON-OFF KIT/ B14243 Ref. 2 - 10 & Ref. 1

2

6578183

TEE W/Ref. 8 - flat boss face

2

21KB0810

FITTING, HYD TEE W/Ref. 8 - tapered boss face - Was 6715187 - A

2

97K8

O-RING flared end

3

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA- Order 6673959 valve- If loader is not equipped with an on/off switch, also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 load

4

17C540

BOLT

5

15K7

FITTING W/Ref. 8 - flat boss face

5

15KB1010

FITTING, HYD CONNECTOR W/Ref. 8 - tapered boss face - Was 15KV00007B - A

5

97K10

O-RING 10 flared end

6

6710798

TUBELINE lift

6

6717656

TUBELINE lift

7

21K7

TEE W/Ref. 8 - flat boss face

7

21KB1010

FITTING, HYD TEE W/Ref. 8 - tapered boss face - Was 21KN00007B - A

7

97K10

O-RING 10 flared end

8

79K10

O RING 10 flat boss face

8

99K10

O'RING tapered boss face

9

85D5

NUT 5

10

6724505

INSTRUCTIONS

11

SOLENOID See Illustration BUCKET POSITION ON-OFF KIT/ B14243
