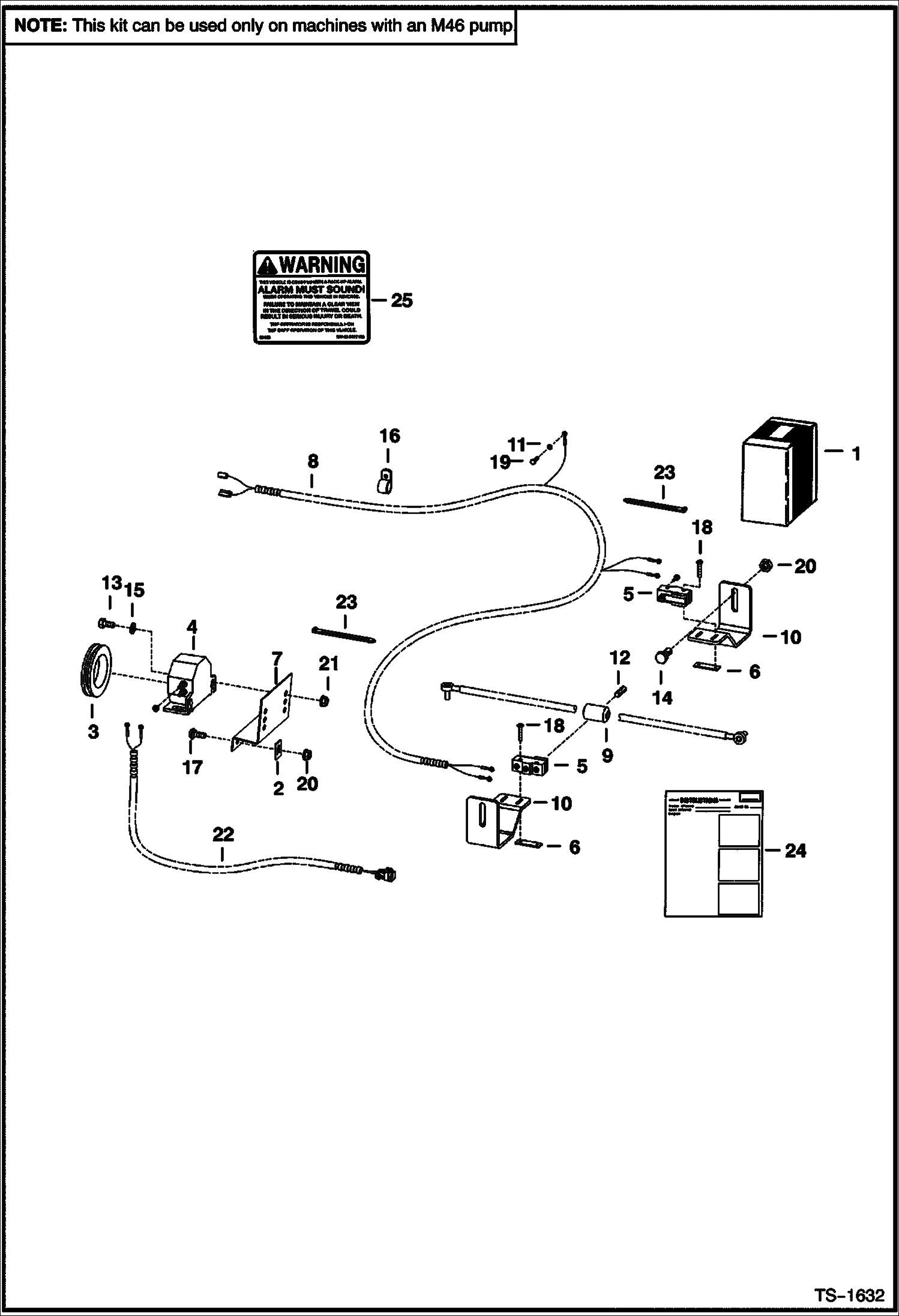

Запчасти Bobcat 800s BACK-UP ALARM KIT (For Pedestal Steering) (M46 Pump only) (S/N 5144 18905-24999, 5145 20063-24999, 5146 20147-24999) ACCESSORIES & OPTIONS

1

6716113

KIT SEE NOTE - back-up alarm - Ref. 2-24

2

774220

NUT

3

6577545

GROMMET

4

6651512

ALARM, BACK-UP Was 6599931 - A

5

6646781

SWITCH

6

6702593

SPACER

7

6733970

MOUNT Was 6707726 - A

8

6704815

HARNESS

9

6716107

COLLAR

10

6716108

MOUNT

11

12E10

WASHER

12

16G506

SCREW

13

17C410

BOLT 10

14

17C510

BOLT

15

25E13

WASHER 5

16

30H23

CLAMP

17

37C512

BOLT

18

59G620

BOLT

19

59G1008

SCREW

20

61D5

NUT

21

83D4

NUT 10

22

6715659

HARNESS

23

6610510

TIE

24

6900560

INSTRUCTIONS

25

6737189

DECAL, WARNING backup alarm
