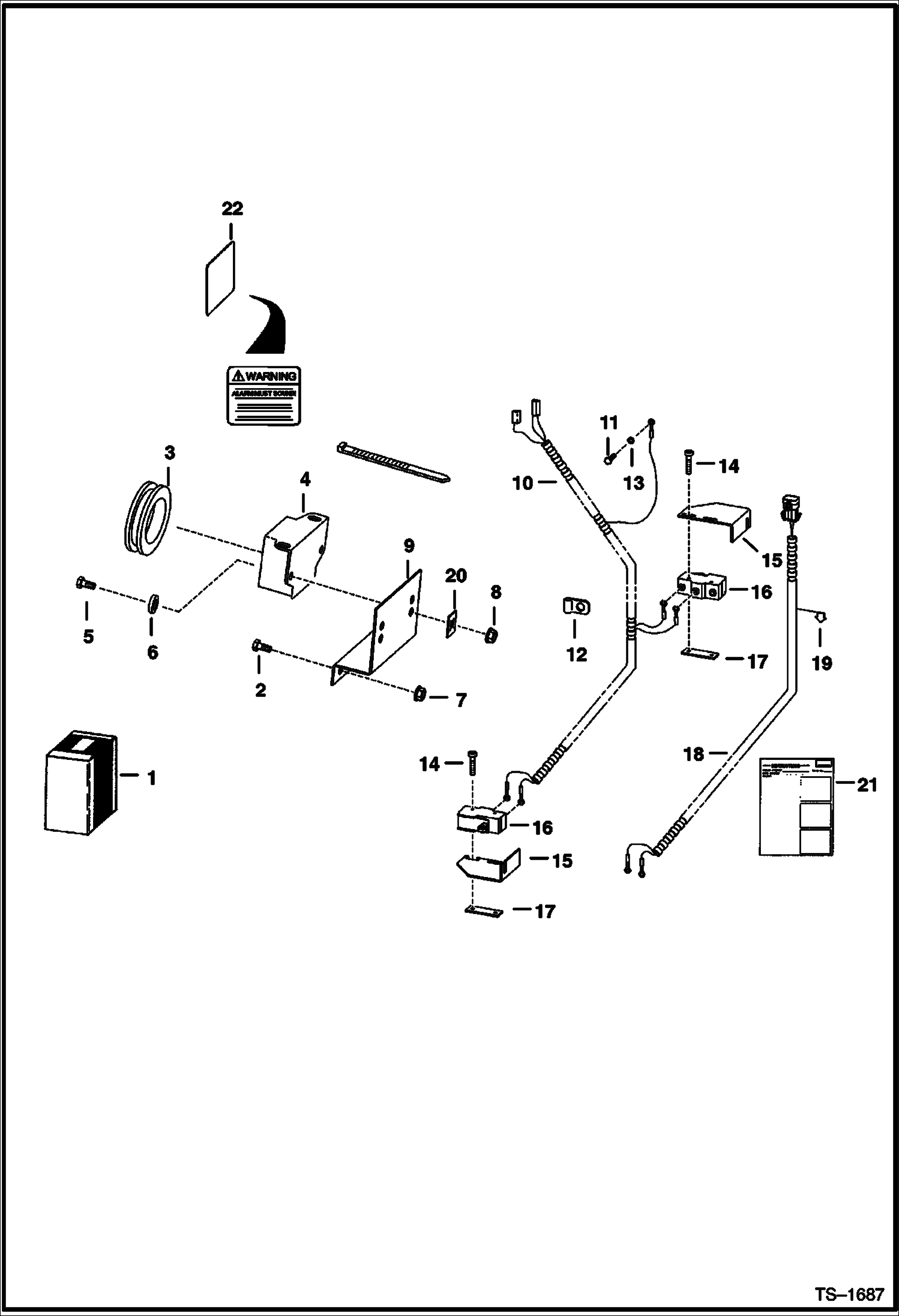

Запчасти Bobcat 800s BACK-UP ALARM KIT (For 1-Piece Rear Door) (Cable Steering) (M46 Pump) (S/N 5144 15610-18904, 5145 11107-20062, 5146 11153-20146) ACCESSORIES & OPTIONS

1

6714981

KIT backup alarm - Ref. 2-21

2

37C512

BOLT

3

6577545

GROMMET

4

6651512

ALARM, BACK-UP Was 6599931 - A

5

17C410

BOLT 10

6

25E13

WASHER 5

7

61D5

NUT

8

83D4

NUT 10

9

6733970

MOUNT Was 6707726 - A

10

6704815

HARNESS

11

59G1008

SCREW

12

30H23

CLAMP insulated

13

12E10

WASHER

14

59G616

SCREW 10

15

6702589

MOUNT switch

16

6646781

SWITCH alarm

17

6702593

SPACER mounting

18

6715659

HARNESS Use for machines without rear lights - W/Ref. 19

19

6672492

RETAINER

20

774220

NUT

21

6722235

INSTRUCTIONS

22

6737189

DECAL, WARNING backup alarm
