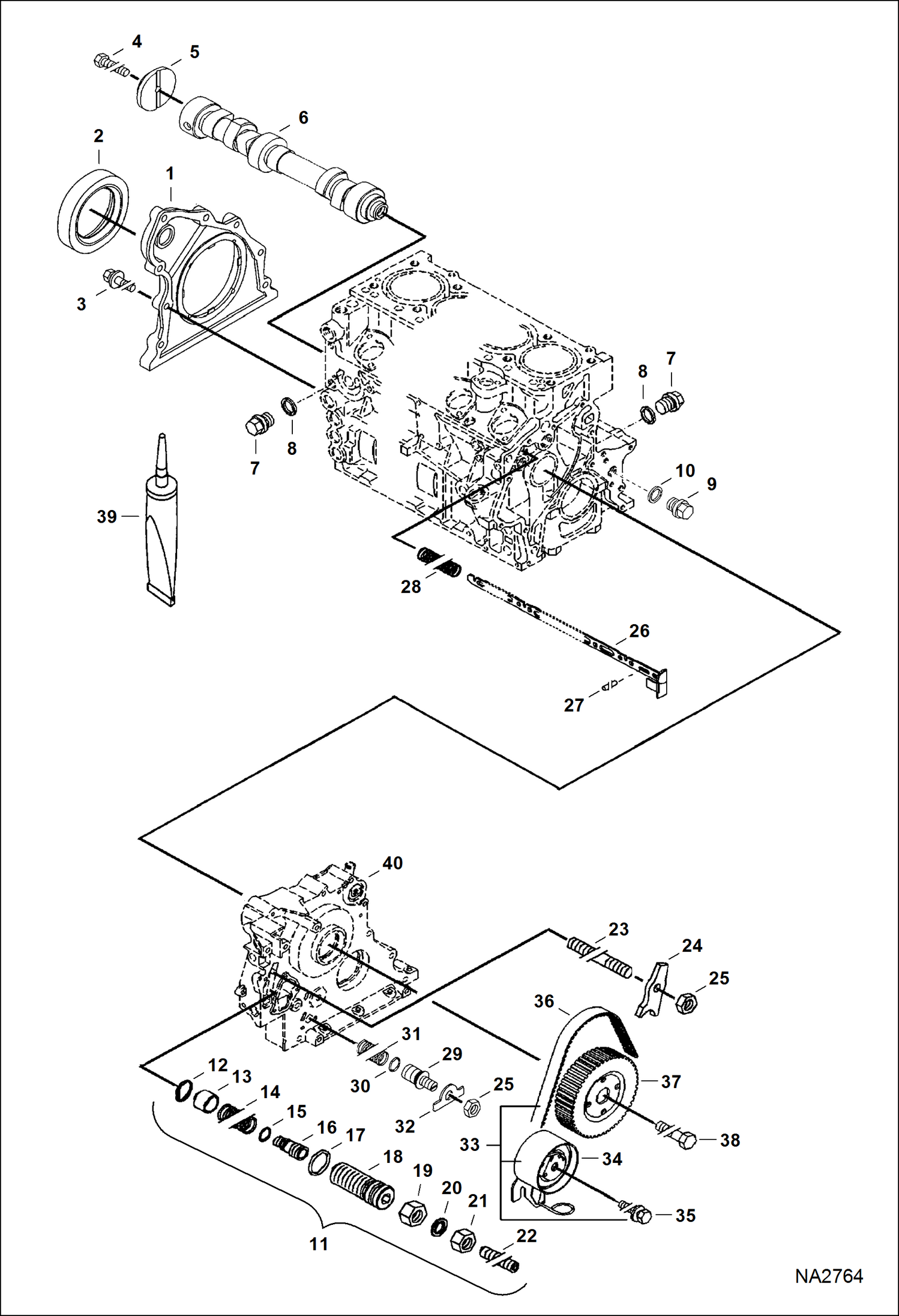

Запчасти Bobcat 800s CAMSHAFT REPLACEMENT ENGINE

1

6688307

COVER REAR rear - Use W/Ref. 39

2

6666490

SEAL lip - rear main

3

6666412

BOLT

4

6688150

BOLT

5

6666469

WASHER thrust Was 6690616 - A

6

6690617

CAMSHAFT

7

6666690

PLUG

8

6666393

SEAL RING

9

6666399

PLUG

10

6666394

SEAL RING

11

6690623

CONTROL ASSBLY. Ref. 12-22

12

6666389

CIR CLIP

13

6672941

STOP limit

14

6666483

SPRING

15

6688158

O-RING

16

6690621

ADJUSTING SCREW

17

6690622

O-RING

18

6690620

SET SCREW adjusting

19

6666450

NUT

20

6666426

SEAL RING

21

6666390

NUT

22

6672942

SET SCREW

23

6666406

STUD

24

6666475

CLAW

25

16DM6

NUT

26

6666503

ROD

27

6666496

PIN locating

28

6666465

SPRING

29

6690631

HOLDER, SPRING W/Ref. 25 & 30-32

30

6673165

O-RING

31

6688305

SPRING

32

6673166

WASHER

33

6688217

REPAIR KIT Ref. 34-36

34

PULLEY NLA - tension - Order Ref. 33

35

BOLT NLA - Order Ref. 33

36

BELT NLA - timing - Order Ref. 33

37

7018619

PULLEY camshaft

38

6666711

BOLT

39

6632823

GASKET liquid - between Ref. 1 & block also between Ref. 40 & block

40

COVER, FRONT See Illustration FRONT COVER/ NA2765
