Запчасти Bobcat 800s FRONT COVER POWER UNIT

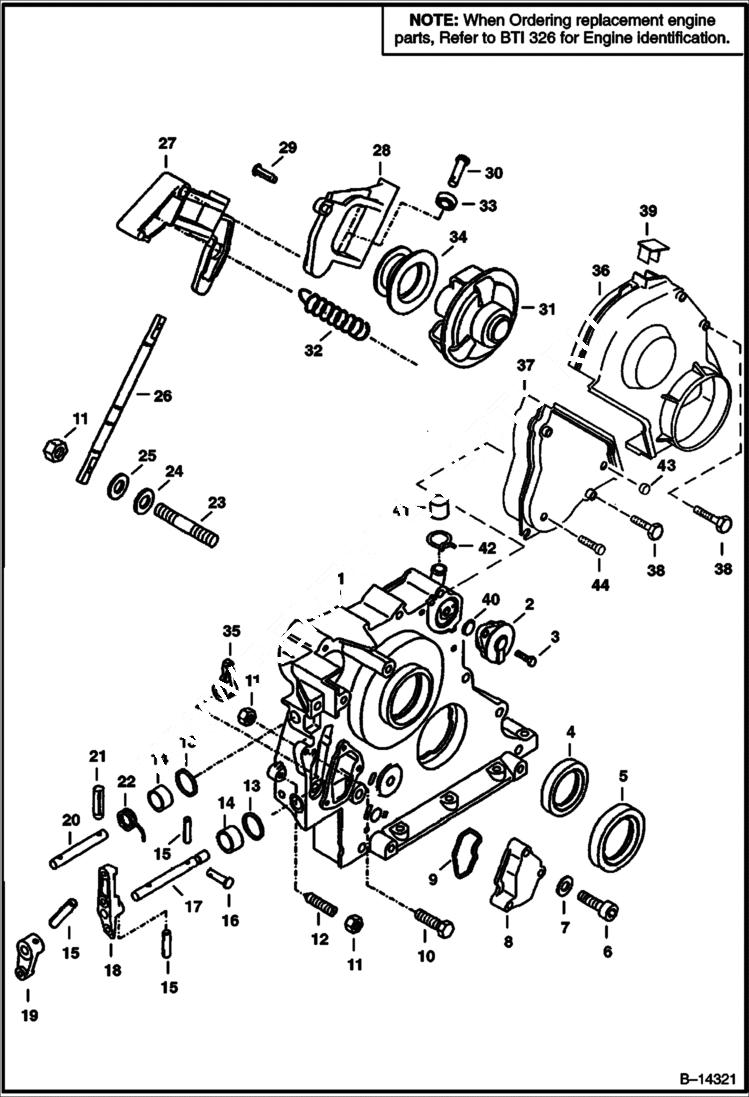

Схема запчастей Bobcat 800s - FRONT COVER POWER UNIT

Артикул

Название

Примечание

Количество

1

6666748

COVER, FRONT front

2

6666749

BREATHER vent - W/Ref. 40

3

6666695

BOLT

4

6666731

SEAL camshaft

5

6666730

SEAL front main - crankshaft

6

6666710

SCREW

7

6513740

WASHER long stroke - EPA & non-EPA

7

6672943

WASHER short stroke - EPA & non-EPA

8

6666757

COVER

9

6666753

WASHER

10

6666684

BOLT

11

1DM6

NUT short stroke - EPA & non-EPA

12

6666698

SET SCREW

13

6666714

O-RING

14

6666732

SLEEVE

15

6666688

PIN

16

6666694

PIN clevis

17

6666729

SHAFT lever

18

6672945

ARM lever - Was 6666728 - A

18

6672945

ARM lever

19

6666721

LEVER shut-off

20

6666726

SHAFT lever

21

6666686

PIN notched

22

6666727

SPRING

23

6666700

STUD

24

6666717

WASHER

25

6666723

WASHER

26

6666740

SHAFT

27

6672946

ARM lever

28

6666745

LEVER roller - W/Ref. 29, 30 & 33

29

6666687

NAIL notched

30

6666713

PIN

31

6666736

METER unit - short stroke - EPA & non-EPA

31

6672705

METER, FRONT COVER ENG unit - long stroke - EPA & non-EPA

32

6666735

SPRING

32

6672944

SPRING short stroke - EPA & non-EPA

32

6673168

SPRING long stroke - EPA & non-EPA

33

6666692

BEARING ball

34

6679571

SLEEVE Was 6666744 - A

35

6666733

ARM lever

36

6668763

SHIELD

37

SHIELD NLA - W/Ref. 43 - Order 6673153 - Was 6669553 - A

37

6673153

SHIELD W/Ref. 43

38

6666691

BOLT

38

6672898

BOLT

39

6668904

CAP

40

6669643

O-RING

41

6666761

CAP Was 6672886 - A

42

6666701

CLAMP

43

6672899

PLUG short & long stroke - EPA & non-EPA

44

6679667

SCREW tamper proof

Выбрано товаров: 51
