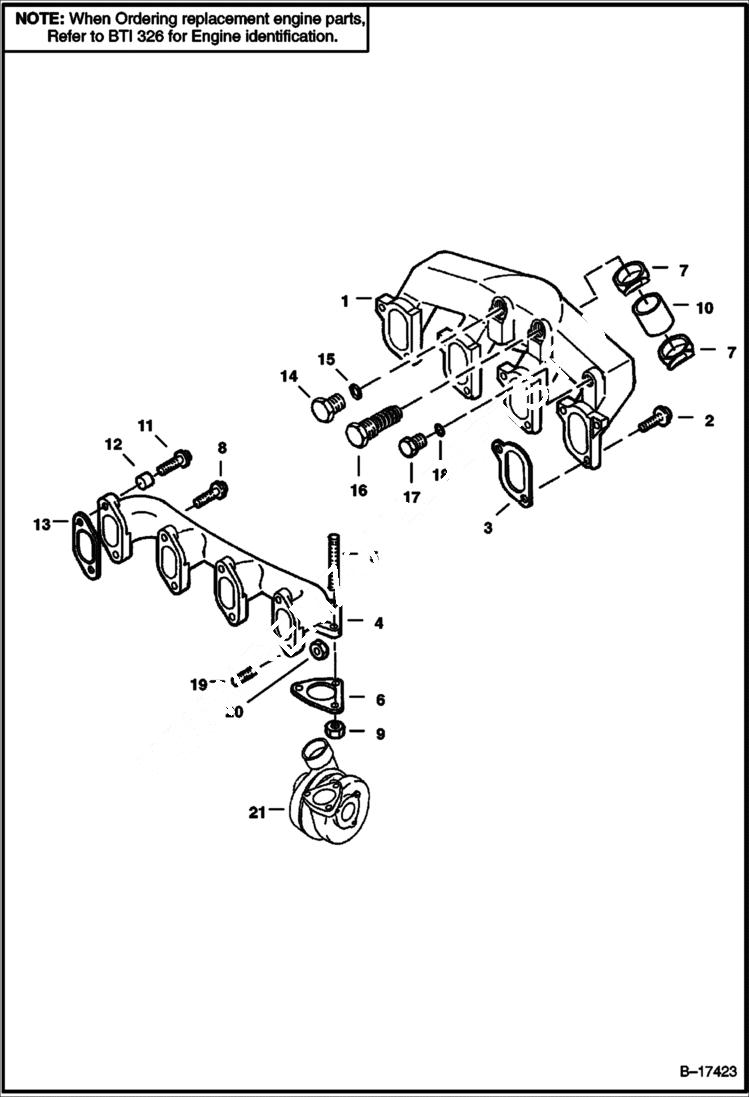

Запчасти Bobcat 800s MANIFOLDS POWER UNIT

1

6690619

MANIFOLD intake - Was 6670316 - A

2

6670313

BOLT

3

6670315

GASKET

4

MANIFOLD NLA - exhaust - short & long stroke - non-EPA - Order 6673170, 6673172 bolt & (7) of 6673171 bolt - Was 6668949 - A

4

6673170

MANIFOLD exhaust - short & long stroke - EPA

5

6666407

STUD

5

6672947

STUD short & long stroke - EPA & non-EPA

6

6666473

GASKET

7

6666419

CLAMP

8

6666427

BOLT

9

6666398

NUT

9

6672948

NUT

10

6670314

HOSE 3.25'' (82,6 mm) long

11

6673171

BOLT short & long stroke - non-EPA - Was 6666429 - A

11

6673171

BOLT short & long stroke - EPA

12

6666440

BUSHING short & long stroke - non-EPA

13

6666472

GASKET

14

6666397

PLUG

15

6668888

WASHER

16

6511720

PRE-HEATER

17

6672938

PLUG

18

6672939

O-RING

19

26CM1040

STUD

20

1DM10

NUT

21

TURBOCHARGER See Illustration CRANKCASE & OIL PAN/ B20128
