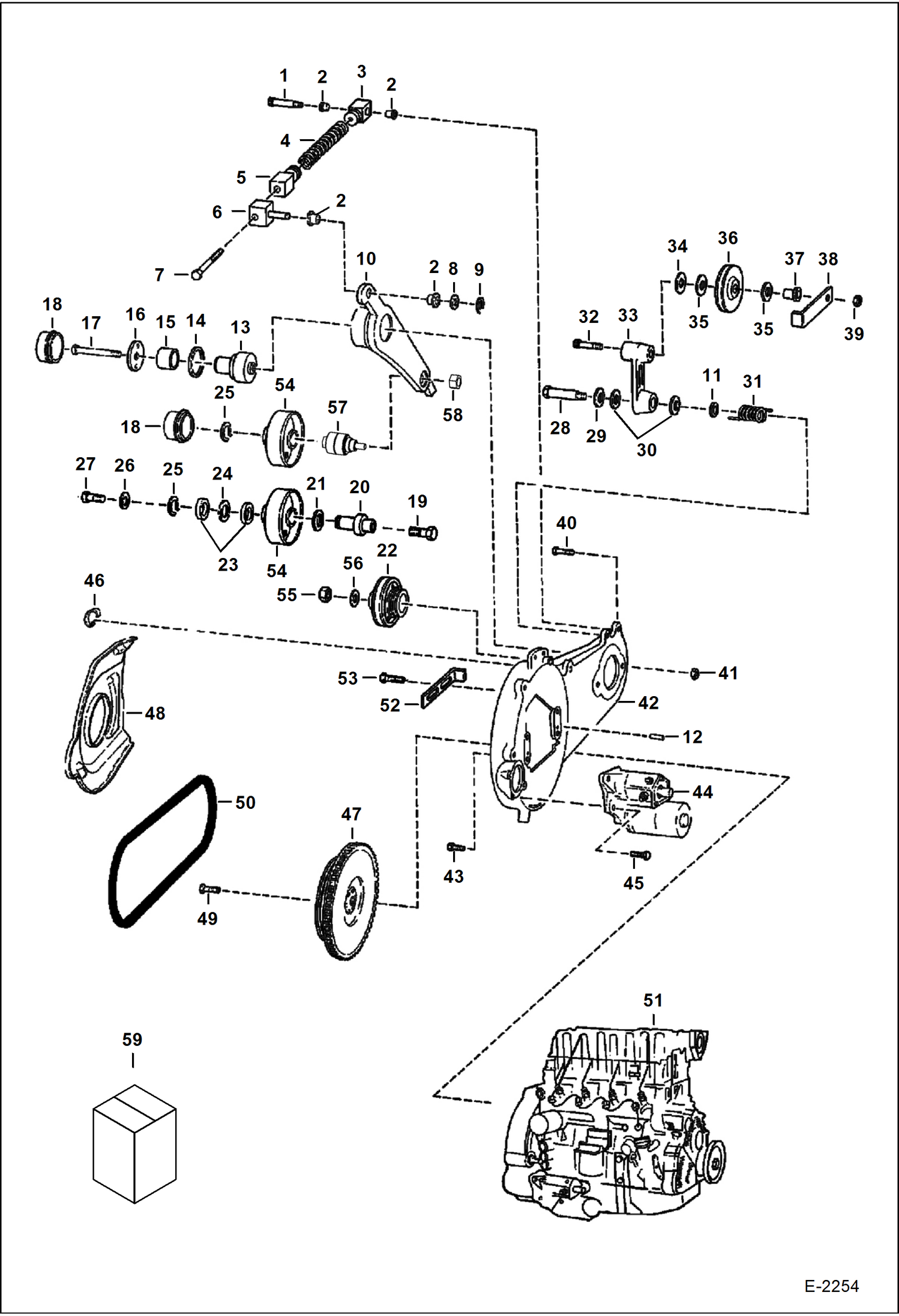

Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

38C828

BOLT shoulder

2

1313116

BUSHING

3

6568424

ADAPTER

4

6569498

SPRING ASSY

5

6568425

ADAPTER

6

6587182

SWIVEL PIN

7

6586710

BOLT

8

25E21

WASHER 5

9

6518955

SNAP RING

10

6735709

IDLER Was 6707607 - A

11

BEARING NLA - bronze - Was 6655780 - A

11

6670682

BEARING nylon

12

4JM1216

ROLL PIN

13

6707699

PIVOT

14

6661377

SEAL

15

6587765

BUSHING, PRESS FIT

16

6707698

WASHER

17

17C872

BOLT

18

6660967

CAP grease

19

BOLT NSS - Order Ref. 57 & 58 - Was 17C816 - B

20

SPINDLE NSS - Order Ref. 57 & 58 - Was 6707654 - B

21

SEAL NSS - Order Ref. 57 & 58 - Was 6665307 - B

22

6707584

PULLEY pump

22

6713287

PULLEY pump

23

BEARING NSS - Order Ref. 57 & 58 - Was 6661229 - B

24

SHIM NSS - Order Ref. 57 & 58 - Was 6701159 - B

25

6665308

SNAP RING

26

WASHER NSS - Order Ref. 57 & 58 - Was 6707697 - B

27

BOLT 5 NSS - Order Ref. 57 & 58 - Was 17C612 - B

28

38C820

SCREW

29

6655781

BEARING thrust

30

6704820

O-RING

31

6700115

SPRING, TORSION

32

73G656

SCREW

33

6725212

ARM W/Ref. 11 - Was 6707637 - A

34

6704444

WASHER

35

6660995

GREASE RING

36

6662997

PULLEY, FAN DRIVE IDLER cooling fan idler

37

6704443

BUSHING

38

6702474

RETAINER

39

61D6

NUT 5

40

17C832

BOLT hydrostatic pump mounting

41

85D8

NUT, 5 hydrostatic pump mounting

42

6715380

MOUNT, ENG See Illustration ENGINE & ATTACHING PARTS/ B18443 Was 6709920 - A

43

53CM1230

BOLT

44

STARTER See Illustration STARTER/ D2365

45

35C620

BOLT 5

46

6701160

CLIP

47

6707642

FLYWHEEL ASSY W/ ring gear - for short stroke engine

47

6715216

FLYWHEEL ASSY. W/ ring gear - for long stroke engine

47

6665222

GEAR, RING STARTER

48

6709921

SHIELD

49

6666452

BOLT

50

6662855

BELT, DRIVE 69'' - pump drive - for short stroke engine

50

6672129

BELT 71'' - pump drive - for long stroke engine

51

ENGINE See Illustration ENGINE & GASKET KITS/ B16399

52

6707714

STOP

53

35C612

BOLT

54

6708445

PULLEY drive idler

55

92D12

NUT

56

6576033

WASHER

57

6691330

BEARING idler

58

95D8

NUT
