Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) (S/N 5144 15609, 5145 11106, 5146 11152 & Below) POWER UNIT

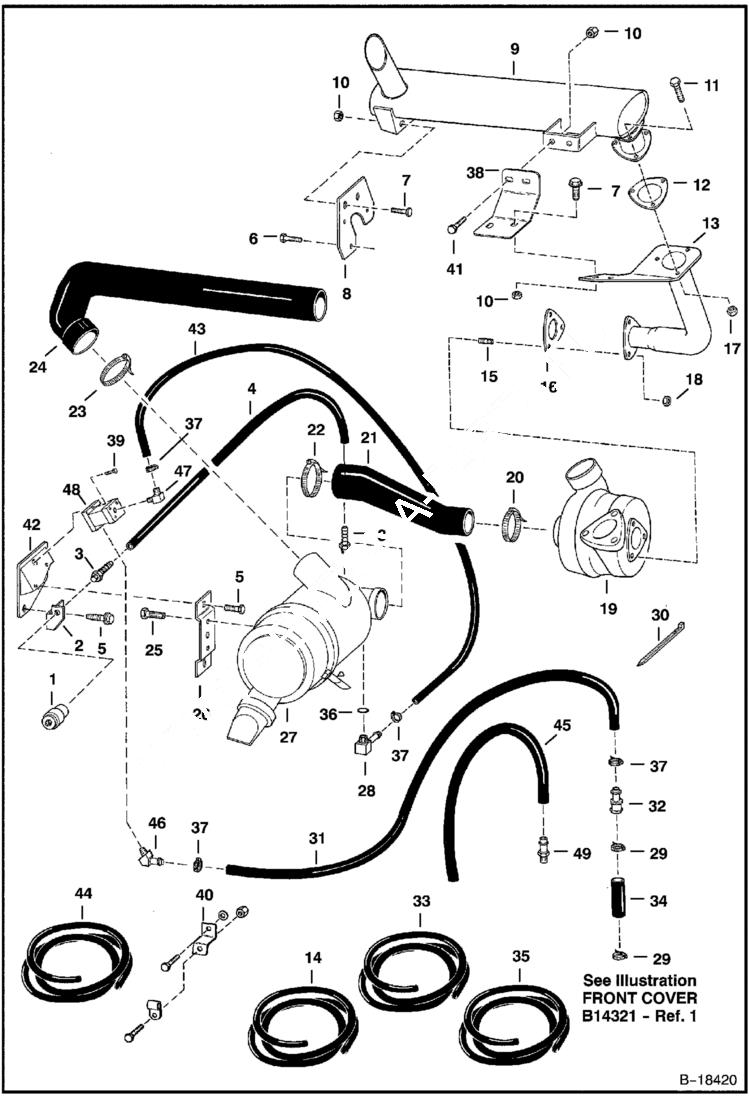

Схема запчастей Bobcat 800s - ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) (S/N 5144 15609, 5145 11106, 5146 11152 & Below) POWER UNIT

Артикул

Название

Примечание

Количество

1

6515007

GAUGE dust - W/O boss option

2

6704823

BRACKET W/O boss option

3

6505813

CONNECTOR barbed - W/O boss option

4

HOSE NLA - W/O boss option - 18'' (457mm) long - Order Ref. 35

5

84G3712

BOLT 5

6

55CM825

BOLT Was 55CM00825B - D

7

45C620

BOLT

8

6710508

SHIELD muffler

9

6667955

MUFFLER, EXHAUST spark arrestor - double insulated - Was 6667667 - B

10

83D6

NUT 5

11

17C616

BOLT 5

12

6707625

GASKET exhaust

13

6707628

TUBE exhaust

14

755622

HOSE-BULK/FOOT bulk - Sold Per Foot

15

6666407

STUD

16

6665910

GASKET

17

85D6

NUT, 5

18

6666398

NUT

19

TURBOCHARGER See Illustration CRANKCASE & OIL PAN/ B20128 Was 6666520

20

42H32

HS CLAMP5 Was 6518820 - A

21

6714505

HOSE Was 6707626 - A

22

42HL300

CLAMP Was 6598799 - A

23

42H52

CLAMP

24

6709958

HOSE

25

55CM816

BOLT Was 53CM-816 - A

26

6707582

BRACKET

27

AIR CLEANER See Illustration AIR CLEANER/ TS1241

28

6709878

ELBOW W/Ref. 36

29

44H20

CLAMP Was 6666864 - A

30

6610510

TIE

31

HOSE NLA - 40'' (1016mm) long - Order Ref. 44

32

6707974

ADAPTER

33

6654057

HOSE bulk - Sold Per Foot - Was 6709861 - B

34

HOSE NLA - 2.5'' (64mm) long - Order Ref. 14

35

6557720

HOSE bulk - Sold Per Foot

36

79K6

O RING 10

37

42H6

HOSECLAM5

38

6710739

BRACKET

39

84G3112

BOLT 5

40

6710463

BRACKET

41

45C616

BOLT

42

6712628

BRACKET

43

HOSE NLA - 26'' (660mm) long - Order Ref. 44

44

6586251

HOSE bulk - sold per foot

45

HOSE NLA - 36'' (915mm) long - Order Ref. 33

46

6712671

ELBOW 45 degrees

47

FTG ELBOW NLA - Was 6599481 - A

48

6712812

MODULE PCV

49

6712813

CHECK VALVE

Выбрано товаров: 49
