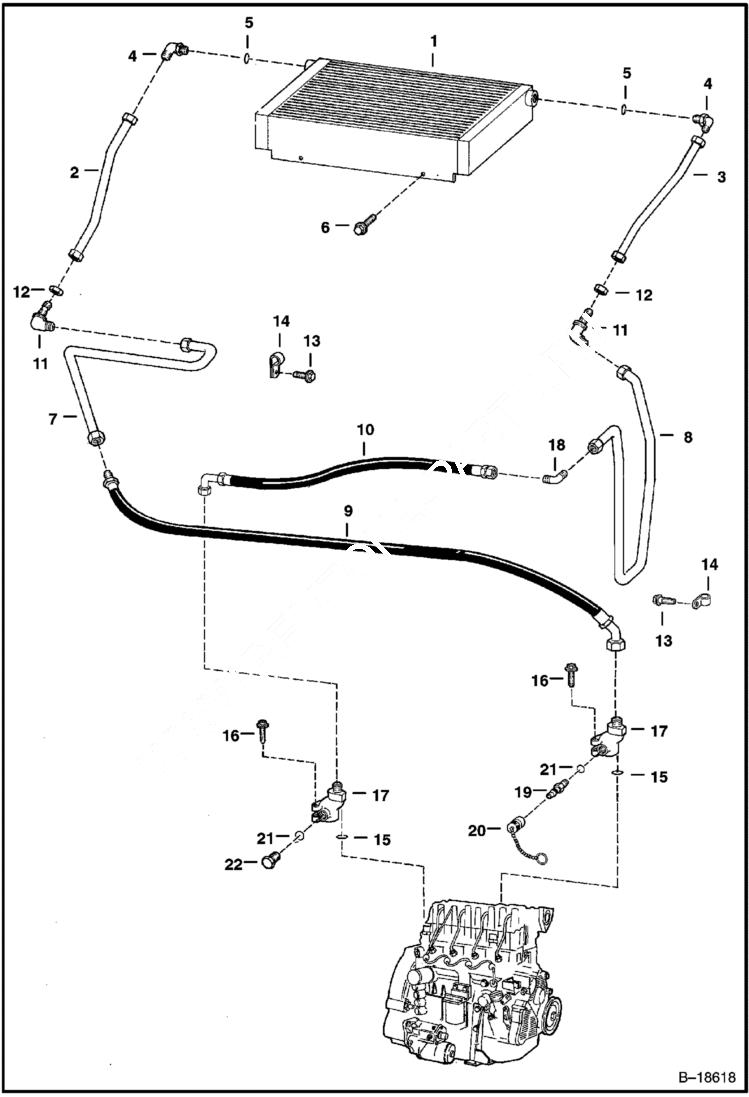

Запчасти Bobcat 800s COOLING SYSTEM POWER UNIT

1

6710791

COOLER oil

2

6709912

TUBE

3

6709916

TUBE

4

17K8

FITTING W/Ref. 5 - flat boss face

4

17KB1212

FITTING, HYD ELBOW W/Ref. 5 - tapered boss face - Was 17KV00008B - A

4

97K12

O'RING flared end

5

79K12

O RING 10 flat boss face

5

99K12

O RING tapered boss face

6

35C612

BOLT

7

6709914

TUBELINE

8

6709913

TUBE

9

6712143

HOSE Was 6711579 - D

10

6712144

HOSE, HYD ASSY Was 6711580 - D

11

88F8

FITTING flat boss face

11

88F8

FITTING tapered boss face - Was 88FN00008B - A

11

97K12

O'RING flared end

12

86F8

NUT 5

13

84G3712

BOLT 5

14

30H42

CLAMP

15

6666712

O-RING

16

6666696

BOLT

17

6666762

ADAPTER

18

77F8

ELBOW

19

ADAPTER NLA - oil fill - Order Ref. 22 - W/Ref. 21

20

6666879

CAP dust

21

6667339

O-RING

22

1KM14

PLUG W/Ref. 21
