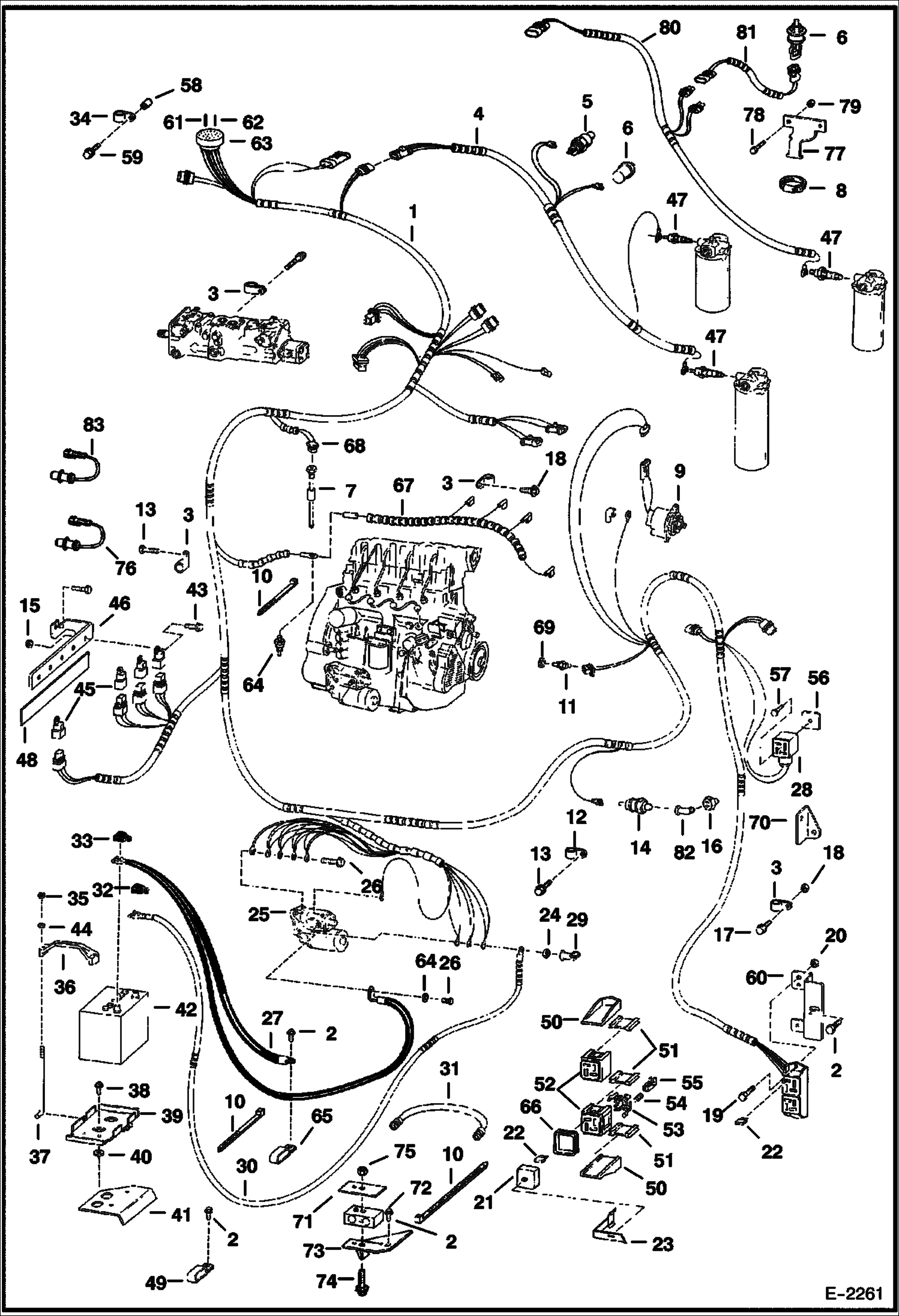

Запчасти Bobcat 800s ENGINE ELECTRICAL CIRCUITRY (W/O B.O.S.S. Option) ELECTRICAL SYSTEM

1

6711562

HARNESS See BTI352 engine - Was 6709896 - A

1

6718070

HARNESS, ENG BASE See BTI352 engine - for side console - W/4 glow plug head - Was 6715947 - A

2

84G3712

BOLT 5

3

30H49

CLAMP

4

6710729

HARNESS filter

5

6632633

SWITCH hyd temp

6

6667292

SWITCH hyd. charge pressure

7

SENSOR NLA - fuel - W/ O-ring - Order 6674209 sensor - Was 6669642 - A

7

79K14

O RING 10

7

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

7

6717579

GASKET

8

42H16

CLAMP, HOSE 5 1.5'' max. dia.

8

44H20

CLAMP Was 42H000020B - A

9

ALTERNATOR See Illustration ALTERNATOR/ C3312 - Was 6661611 - B

10

6610510

TIE

11

6717120

SENDER, TEMP OIL engine oil temp. - W/ black wire - Was 6666613 - A

12

30H57

CLAMP

13

1CM816

BOLT

14

6631010

SWITCH, PRESS OIL ENG engine oil pressure

15

55D4

NUT

16

6708580

ADAPTER

17

17C512

BOLT 5 Was 17C-3112 - B

18

85D5

NUT 5

19

45G1212

BOLT Was 45D000012B - B

20

50D12

NUT

21

6665358

COVER , FUSE fuses

22

6707620

FUSE, 10A MINI 5

22

6707621

FUSE, 15A MINI 5

22

6707623

FUSE, 25A MINI 5

22

6674099

BREAKER, 25A

23

6708437

CLIP spring

24

4DM5

NUT

25

STARTER See Illustration STARTER/ D2365 - Was 6685191 - B

26

45C620

BOLT Was 35C000620B - B

27

6713670

CABLE ground - Was 6713118 - C

28

6665659

CONNECTOR, SHUTDOWN fuel shutdown

29

6560172

COVER

30

6576188

CABLE positive - W/ 30'' (762 mm) of Ref. 31 - Was 6579809 - A

31

6563505

CONDUIT bulk - Sold Per Foot

32

2356058

BOOT

33

BOOT NLA - Was 6599652 - A

34

30H60

CLIP

35

59D5

NUT 5

36

6569203

CLAMP

37

6576280

BOLT

38

84G3716

SCREW 5

39

6712536

PAN Was 6577809 - A

40

6555455

WASHER

41

6579989

BRACKET

42

6665427

BATTERY, DRY 950 AMP Was 6634746 - D

43

17C412

BOLT 5

44

25E15

WASHER

45

6670312

SWITCH, MAGNETIC relay - Was 6665005 - A

46

6707649

MOUNT

47

6632053

SWITCH See Illustration HYDROSTATIC OIL FILTER/ C2818A filter

48

6707787

DECAL fuse location

49

30H46

CLIP

50

6665369

MOUNT fuse

51

6665411

WEDGE red

52

6665356

BLOCK fuse - W/Ref. 66

53

6665357

LOCK yellow

54

6650107

SEAL

55

PIN NLA - female - Order 6668719 pin for 16 ga. wire - Order 6668720 pin for 14 ga. wire - Was 6648311 - A

56

6668760

SEAL

57

6668761

BOLT

58

6712975

SPACER

59

84G3732

BOLT

60

6714764

MOUNT fuse block - Use W/ 1-piece rear door

61

6664828

SOCKET

62

6664041

SOCKET

63

6664585

CONNECTOR Also Order Ref. 61 & 62 as needed - Was 6665682 - A

64

6511720

PRE-HEATER

65

31H46

CLAMP

66

6671528

SEAL green square - Was 6671156 - D

67

6714434

HARNESS See BTI310 for 4 glow plug changeover

68

6646383

CONNECTOR fuel sender

68

6632946

TERMINAL female

69

6666405

WASHER seal

70

6714979

BRACKET harness

71

6715132

RETAINER cable clamp

72

6715197

CLAMP

73

6715131

BRACKET battery cable

74

17C540

BOLT

75

95D5

NUT

76

6684037

SENSOR RPM - Was 6658260 - B

77

6704319

MOUNT

78

17C416

BOLT

79

85D4

NUT 5

80

6716642

HARNESS filter - for M-44 pump

81

6717131

HARNESS

82

25F1

ELBOW

83

6679853

SENSOR RPM
