Запчасти Bobcat 800s MANIFOLDS POWER UNIT

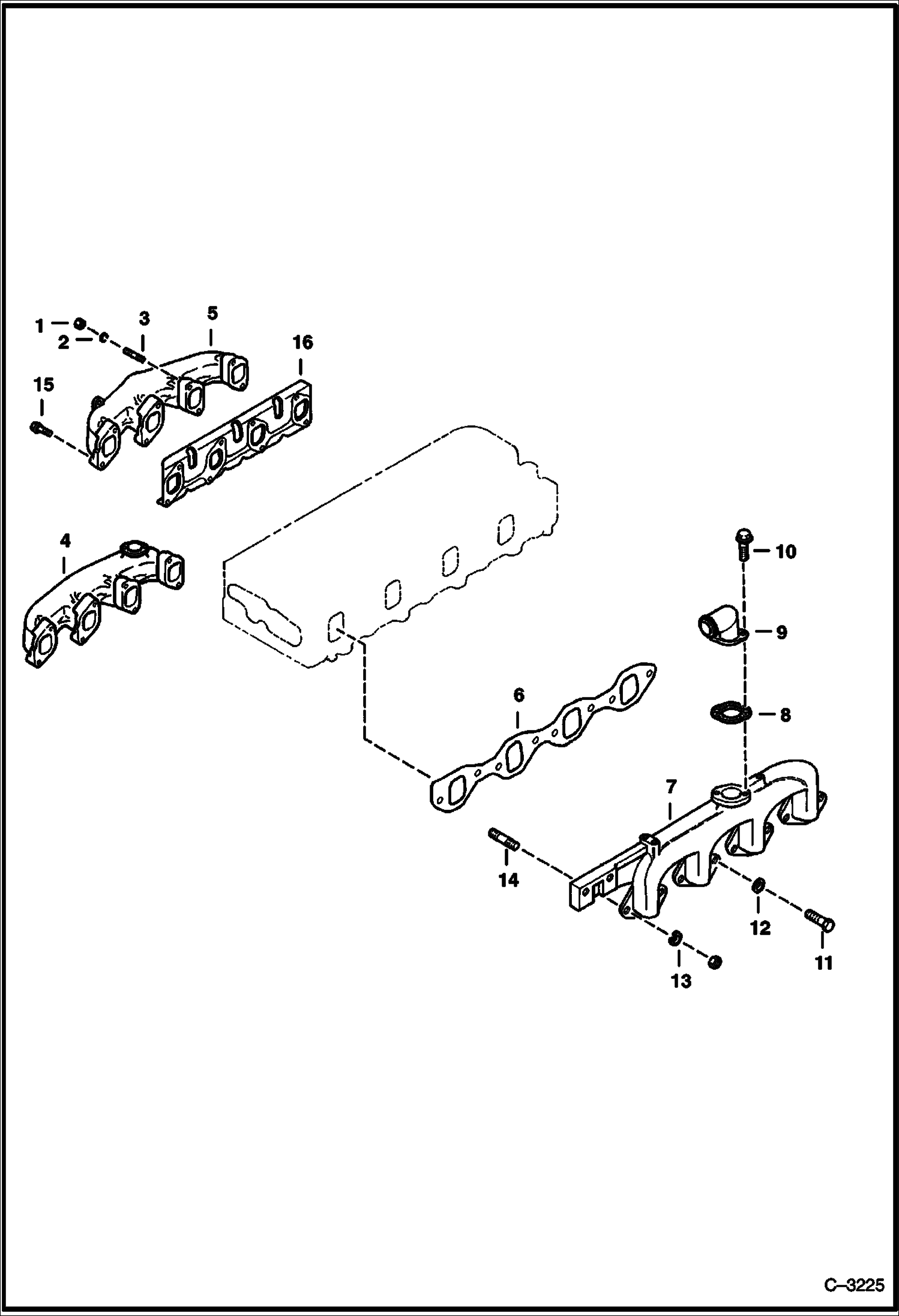

Схема запчастей Bobcat 800s - MANIFOLDS POWER UNIT

Артикул

Название

Примечание

Количество

1

6513035

NUT

2

6512736

WASHER

3

6631885

STUD Was 6658215 - A

4

6658201

MANIFOLD Exhaust - 2 bolt flange

5

6659933

MANIFOLD Exhaust - 4 bolt flange - Was 6659953 - D

6

6631802

GASKET Was 6661095 - D

7

6654908

MANIFOLD Intake

8

6664012

GASKET Was 6662954 - A

9

6655098

PIPE

10

909498

BOLT

11

6661091

BOLT Was 3676970B - A

12

3674002

WASHER

13

6667578

NUT Was 6631736 - A

14

6631884

STUD

15

6513049

BOLT

16

6660989

GASKET Was 6631801 - A

Выбрано товаров: 16
