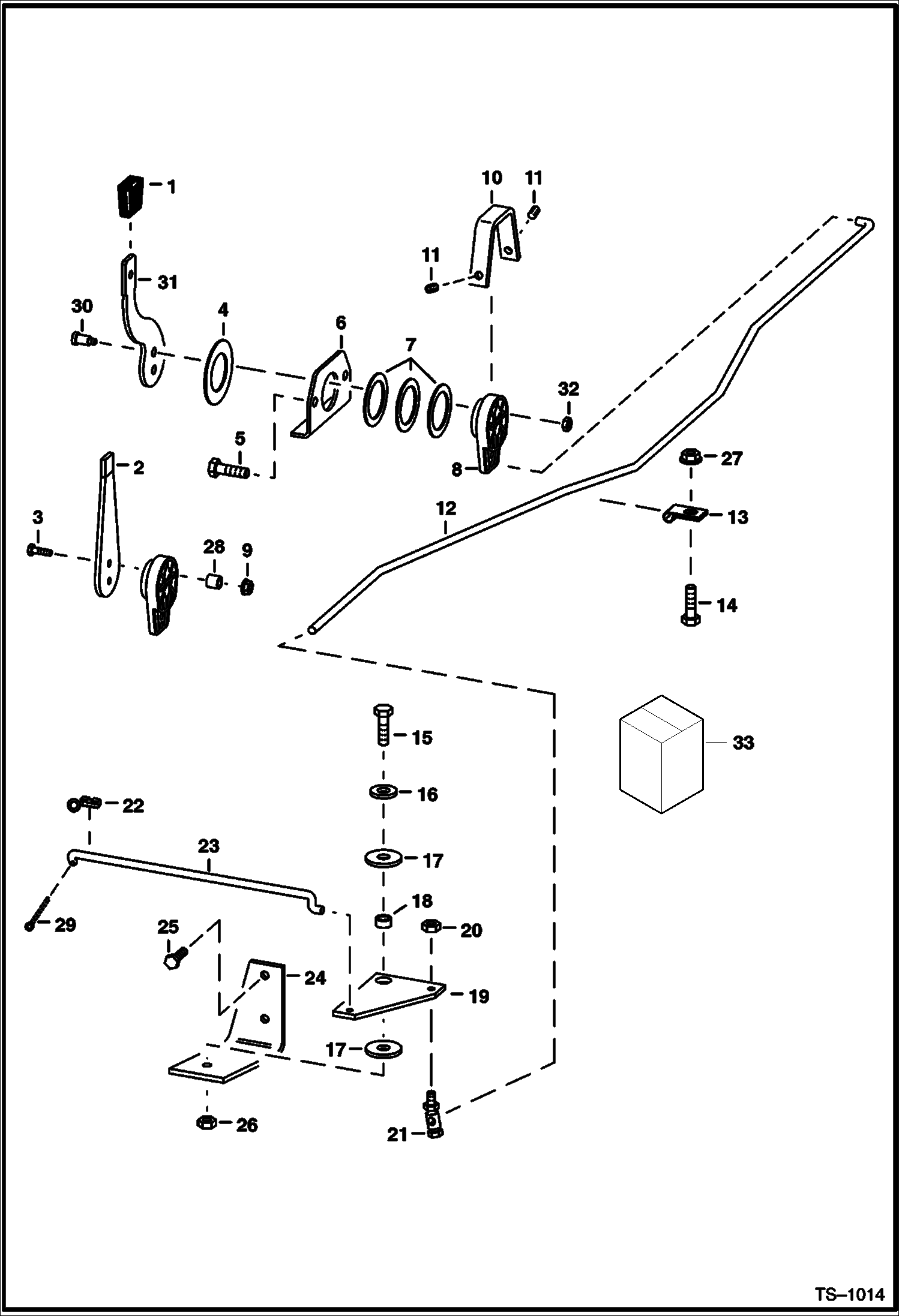

Запчасти Bobcat 800s THROTTLE POWER UNIT

1

6564452

GRIP

2

6567911

LEVER Was 6557291 - D

3

17C518

BOLT

4

6567962

WASHER

5

84G3724

BOLT

5

17C624

BOLT 5 Use W/ threaded side panel

6

6576262

MOUNT

7

6630945

WASHER

8

LEVER NLA - Order 6734416 Lever, Ref 31 & (2) each of Ref. 30 & 32 - Was 6705225 - C

8

LEVER NLA - 2-hole rod attachment - Order 6734416 lever - Was 6709022 - A

8

6734416

LEVER 3-hole rod attachment

9

57D5

NUT Was 85D000005B - A

10

6576261

COVER

11

6706572

SET SCREW Was 15G000512B - A

12

6579741

ROD

13

30H19

CLIP Was 30H000020B - B

14

17C512

BOLT 5 Was 84G003712B - A

15

84G3720

BOLT

16

25E18

WASHER

17

6700170

WASHER plastic - Was 6563152 - A

18

6564343

SPACER

19

6701187

BELLCRANK

20

85D4

NUT 5

21

6557291

BALL JOINT

22

6519480

CLIP

23

6579740

ROD

24

6579743

MOUNT

25

1CM820

BOLT

26

95D6

NUT Was 91D000006B - A

27

61D5

NUT

28

6703491

SPACER

29

6631418

RING, RETAINING

30

38C610

BOLT shoulder

31

6705452

LEVER

32

85D5

NUT 5
