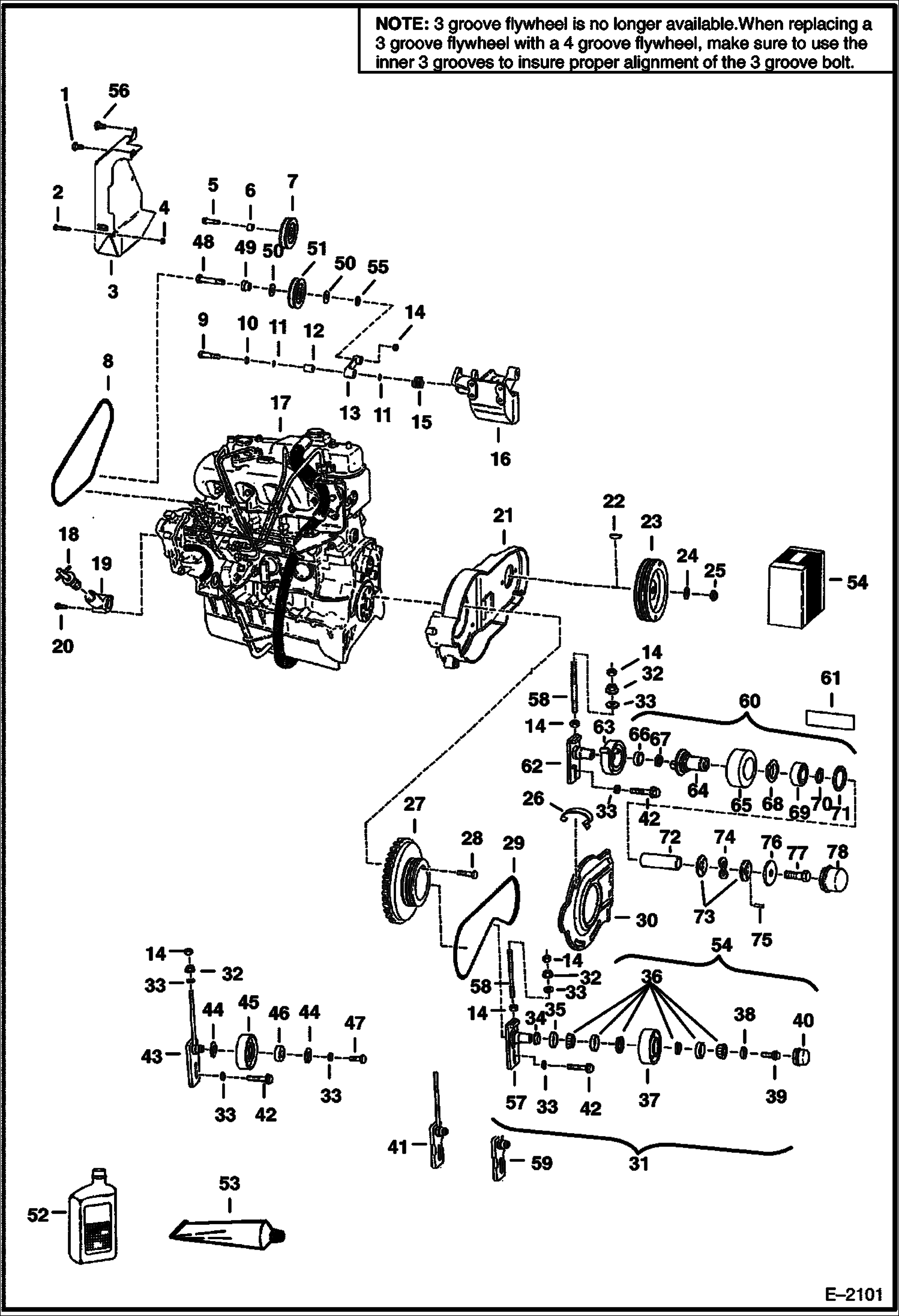

Запчасти Bobcat 800s ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

1CM812

BOLT Was 17C000812B - A

2

35C528

SCREW

3

6579759

SHIELD

4

61D5

NUT

5

35C628

BOLT

6

6578452

SPACER

7

PULLEY NLA - cooling fan drive idler - Order 6662997 Pulley-Was 6653253 - B

7

6662997

PULLEY, FAN DRIVE IDLER cooling fan drive idler

8

6701265

BELT, FAN cooling fan drive

9

38C820

SCREW Was 6577807 - A

10

6655781

BEARING thrust

11

6704820

O-RING Was 58K000014B

12

BEARING NLA - bronze - Was 6655780 - A

12

6670682

BEARING nylon

13

6725212

ARM W/Ref. 12 - Was 6703507 - A

14

61D6

NUT 5

15

6700722

SPRING

16

MOUNT NLA - engine, alt., & hyd. pump - Order 6706165 Mount, - REF. 48, 49, 55 & (2) of Ref. 50 - Was 6579358 - A

16

6706165

MOUNT engine, alt., & hyd. pump - with extra ear on left surface W/ 3/8'' dia. threaded hole

17

ENGINE See Illustration ENGINE & GASKET KITS/ B13269

18

6649962

OIL FILL CAP oil fill

19

6568956

OIL FILL TUBE

20

1CM650

SCREW Was 1CM-656 - B

21

6578951

MOUNT

22

6J807

KEY, WOODRUFF

23

6579333

PULLEY hyd. pump - 3 groove

23

6705807

PULLEY hyd. pump - 4 groove

24

6576033

WASHER

25

92D12

NUT Was 86D000012B - A

26

6701160

CLIP

27

FLYWHEEL NLA - 3 groove - order 6705805 Flywheel - & REF. 30, 6705808 shield - SEE NOTE - Was 6701888 - A

27

6705805

FLYWHEEL 4 groove

27

6513662

RING GEAR

28

6665036

BOLT Was 6631605 - A

29

6660766

BELT, DRIVE drive - 3 groove-Was 6658306 - A

29

6662855

BELT, DRIVE pump drive - 4 groove

30

6705808

SHIELD Was 6700605 - A

31

IDLER ASSY. NLA - FIXED - REF. 34-40 - 3 GROOVE - - ORDER REF. 60 & 61 - WAS 6705451 - A

31

IDLER ASSY. See BTI322 NLA - FIXED - REF. 14, 34-40, 57 & 58 - 4 GROOVE - - - ORDER REF. 60 - - WAS 6708606 - A

32

57D6

NUT 5

33

616783

WASHER

34

6661070

SLEEVE wear - Also Order Ref. 35

35

6661066

SEAL Also Order Ref. 34

36

BEARING NLA - Order Ref. 54 - Was 6661071 - A

37

6704416

PULLEY Also Order Ref. 54 - 3 groove

37

6707191

PULLEY Also Order Ref. 54 - 4 groove - Was 6705810 - A

38

6704484

WASHER

39

35C612

BOLT

40

6660967

CAP grease

41

BRACKET NLA - 3 GROOVE-ORDER 6708607 BRACKET, REF. 58 - 6708598 RED - & REF. 14 - 61D-6 NUT - WAS 6705450 - A

41

BRACKET NLA - 4 groove - ORDER REF. 14, 57 & 58 - Was 6705859 - A

42

17C620

BOLT

43

BRACKET NLA - Order Ref. 31 - Was 6703283 - A

44

6653758

SNAP RING

45

PULLEY NLA - idler - Order Ref. 31 - Was 6702951 - A

46

BEARING NLA - Order Ref. 31 - Was 6651452 - A

47

17C612

BOLT 5

48

17C636

BOLT Use W/Ref. 51

49

6704443

BUSHING spacer - Use W/Ref. 51

50

6660995

GREASE RING grease - Use W/Ref. 51 - Was 6660955 - D

51

6662997

PULLEY, FAN DRIVE IDLER cooling fan drive idler

52

6661405

OIL quart can - For Use W/Ref. 31

53

6633583

SEALANT, POLYURETHANE 300 ML Use W/Ref. 34 & 41 and W/Ref. 37 & 40

54

6722248

REPAIR KIT bearing - Ref. 34-36 & 40

55

6704444

WASHER Use W/Ref. 51

56

1CM870

BOLT

57

BRACKET See BTI322 NLA - Order Ref. 60 - Was 6708567 - A

58

6708598

ROD

59

6708607

BRACKET

60

6901216

IDLER, BELT DRIVE ASSY See BTI322 - SPRING LOADED - 3-GROOVE - TO REPLACE 3-GROOVE & 4-GROOVE FIXED IDLER - Also Order Ref. 58 & 61 - W/Ref. 62-78 - WAS 6711698 - A

61

6711905

DECAL Belt Tension - Spring Loaded Idler - Was 6709030 - B

62

6735883

BRACKET Was 6708767 - A

63

6705491

SPRING tension

64

HUB ASSY. NLA - ORDER REF. 60

65

6704391

PULLEY

66

6661112

SEAL

67

6703168

BEARING thrust

68

6664209

SEAL

69

BEARING NLA - Ball - ORDER REF. 60

70

6658536

RING

71

6658847

RING

72

6704393

BEARING bronze sleeve

73

6705231

WASHER

74

6710585

WASHER wave spring

75

6713370

PIN Was 14J-1808 - B

76

6705232 WASHER

77

17C-610 BOLT

78

6708770 COVER
