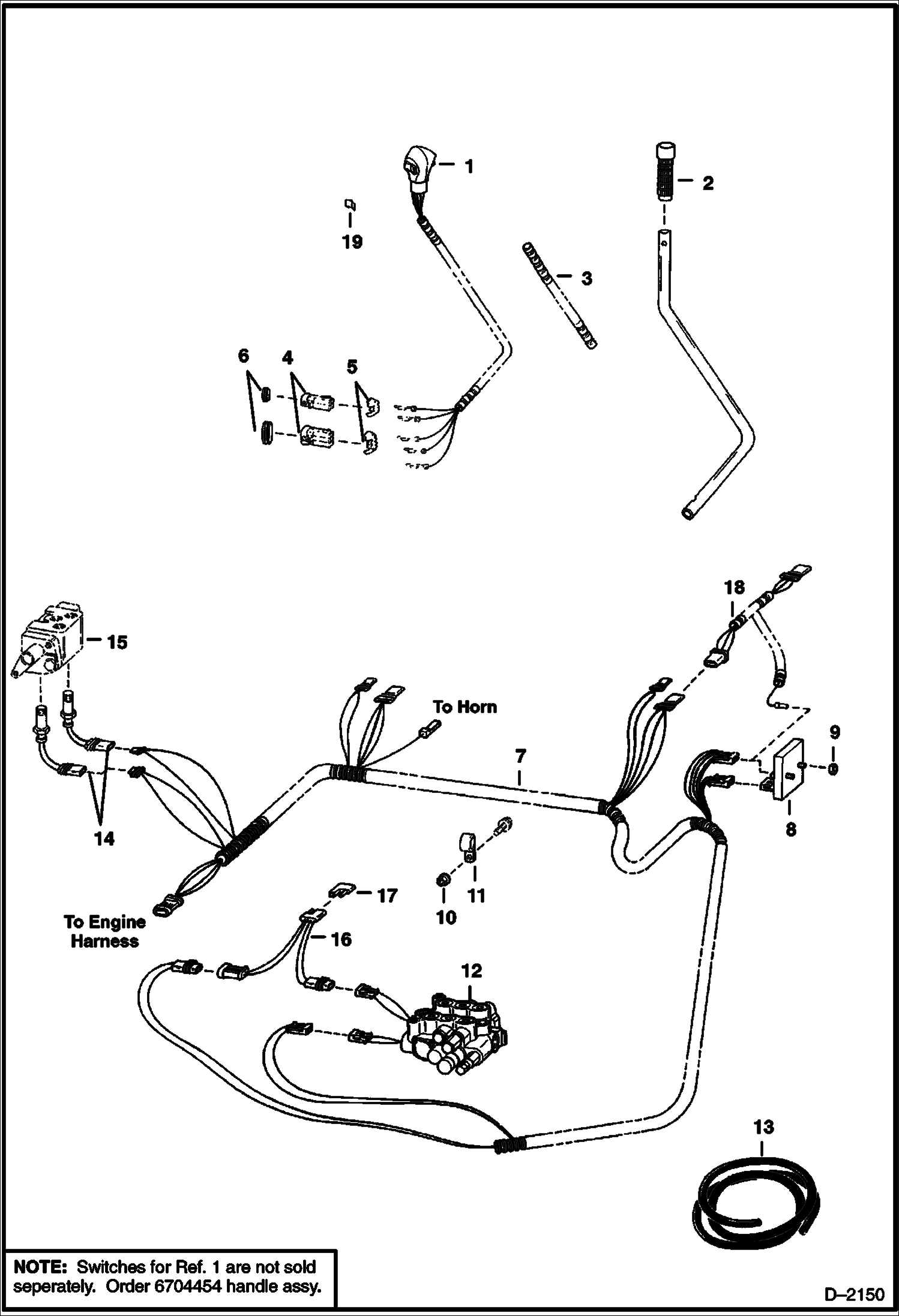

Запчасти Bobcat 800s CONTROLS ELECTRICAL (S/N 5084 11354 & Above) (S/N 5097 11001 & Above) ELECTRICAL SYSTEM

1

6704454

HANDLE ASSY. Cobra style - W/Ref. 3 - Also Order Ref. 4-6 - Was 6703845 - A

2

6702621

GRIP

3

CONDUIT NLA - 36'' (914,4 mm) long - Order Ref. 13

4

6641179

CONNECTOR 2-pin

4

6640699

CONNECTOR 3-pin

5

6641180

LOCK Use W/ 2-pin connector

5

6640700

LOCK 3-pin

6

6649683

SEAL for Use W/2 - pin connector

6

6659553

SEAL for Use W/3 - pin connector

7

6703005

HARNESS

7

6703005

HARNESS

7

HARNESS NLA - Order 6705283 Harness - Was 6703878 - A

7

7

6705283

HARNESS

7

6705283

HARNESS

8

6671669

MODULE, CONTROL AUX aux. control - Was 6706215 - C

9

85D4

NUT 5

10

89D6

NUT

11

30H42

CLAMP

12

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1051 See Illustration HYDRAULIC CONTROL VALVE/ TS1008

13

6584978

CONDUIT bulk - sold per foot - Was 6565528

14

6649018

SOLENOID Was 6659595 - A

15

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUX.

16

6703898

HARNESS See Illustration REAR AUXILIARY/ TS1036 853HHH ONLY & REAR AUX. KIT

17

6703899

DIODE See Illustration REAR AUXILIARY/ TS1036 853HHH ONLY & REAR AUX. KIT

18

6705284

HARNESS Use for momentary reverse flow

19

6664315

DECAL switch
