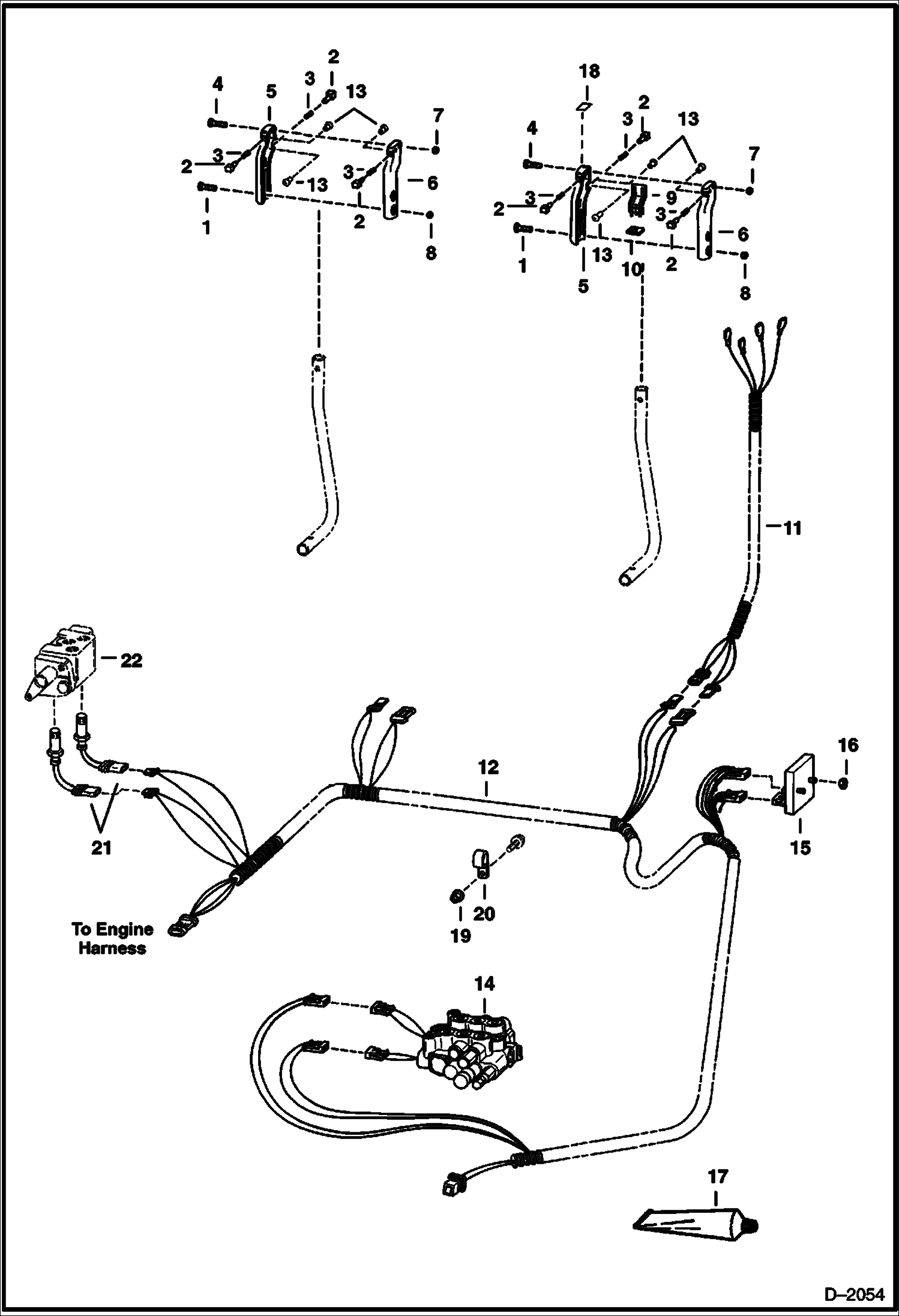

Запчасти Bobcat 800s CONTROLS ELECTRICAL (S/N 5084 11353 & Below) ELECTRICAL SYSTEM

1

85G820

SCREW

2

6700356

SWITCH See BTI248 push

3

6571977

SPRING

4

85G620

SCREW

5

6569444

HANDLE See BTI248 Also Order Ref. 2, 3 & 13

6

6569445

HANDLE See BTI248 Also Order Ref. 2, 3 & 13

7

12D6

NUT 10

8

12D8

NUT

9

SWITCH See BTI324 NLA - leaf - Was 6569451 - A

10

6572087

INSULATOR

11

6576323

HARNESS

12

6579881

HARNESS

12

6702634

HARNESS

13

6700354

RETAINER See BTI248

14

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1051 See Illustration HYDRAULIC CONTROL VALVE/ TS1008

15

6671669

MODULE, CONTROL AUX NLA - aux control - Was 6579880 - A

16

85D4

NUT 5 Was 12D000010B - A

17

6654216

ADHESIVE See BTI248 3 gr. tube

18

6577506

PLATE

19

89D6

NUT

20

30H42

CLAMP

21

6649018

SOLENOID Was 6659595 - A

22

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUX.
