Запчасти Bobcat 800s ENGINE ELECTRICAL SYSTEM (S/N 5084 11010 & Below) ELECTRICAL SYSTEM

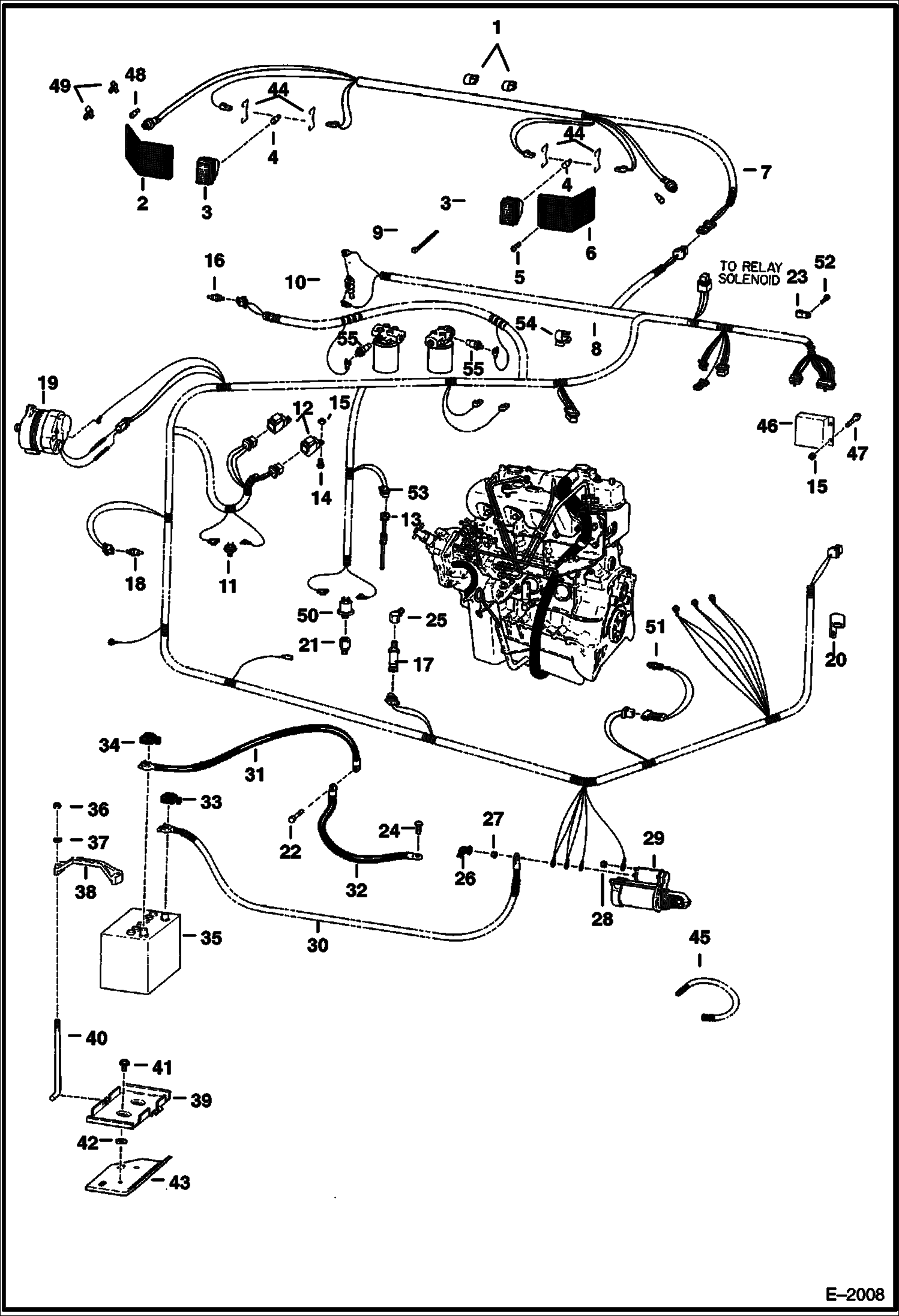

Схема запчастей Bobcat 800s - ENGINE ELECTRICAL SYSTEM (S/N 5084 11010 & Below) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

30H35

CLAMP 10 Was 30H000033B - D

2

6577504

LENS

3

6665922

LAMP W/Ref. 4 - Was 6661353 - A

3

6665431

SOCKET threaded bulb

4

898731

1156 BULB

5

6706517

SCREW Was 6579119 - A

6

6577505

LENS

7

6577648

HARNESS lights

8

HARNESS NLA - engine - Was 6579653 - A

9

6610510

TIE Was 1715312B - A

10

6648326

SWITCH coolant level

11

6660316

SWITCH vacuum - Was 6651570 - A

12

6651975

SWITCH relay

13

7216451

SENSOR, FUEL W/ O-ring - Was 6680453 - A

13

79K14

O RING 10

13

6658958

SENSOR Fuel - W/ Gasket

13

6717579

GASKET

14

17C412

BOLT 5

15

61D4

NUT 5

16

6654200

SENSOR hydro. temp

17

6660204

SENSOR eng. oil pressure-Was 6649476 - A

18

6654202

SENSOR eng. temp.

19

ALTERNATOR See Illustration ALTERNATOR/ D1760

20

30H46

CLIP

21

6563922

SNUBBER W/Filter

21

6563920

FILTER

22

1CM1016

SCREW Was 2CM01016B - A

23

30H57

CLAMP

24

84G3712

BOLT 5

25

6707040

ELBOW Was 6658634 - A

26

6560172

COVER

27

4DM10

NUT

28

4DM5

NUT

29

STARTER See Illustration STARTER/ D2119

30

CABLE NLA - pos. - 34'' (863,6mm) long - Order 6576188 Cable - W/30'' (762 mm) of Ref. 45 - Was 6579809 - A

30

6576188

CABLE pos. - 40'' (101,6mm) long

31

6579806

CABLE ground

32

6563025

CABLE ground

33

2356058

BOOT

34

6599652

BOOT

35

6665032

BATTERY, DRY 700 AMP Was 6631611 - A

35

6630153

BATTERY CAP

36

59D5

NUT 5

37

25E15

WASHER

38

6569203

CLAMP

39

6712536

PAN Was 6577809 - A

40

6576280

BOLT

41

84G3716

SCREW 5

42

6555455

WASHER

43

6579989

BRACKET

44

6701392

CLIP

45

6563505

CONDUIT bulk - Sold Per Foot

46

6667828

BOSS initialized - Was 6661214 - A

46

6666916

BOSS Not Initialized - Was 6722444 - A

46

6666918

BOSS backup - Was 6661110 - A

47

10C412

BOLT

48

6649481

LIGHT, WEDGE BASE

49

6649923

CLIP

50

SENDER See BTI271 NLA - one post - hyd. chg. pressure - Was 6655589 - A

50

6661518

SENSOR two post - hyd. chg. pressure

51

6679853

SENSOR RPM Counter - Was 6658260 - A

52

84G3116

SCREW

53

6646383

CONNECTOR fuel sender

53

6632946

TERMINAL female

54

6599698

CLIP

55

6660260

SWITCH See Illustration HYDROSTATIC OIL FILTER/ B20148 FILTER

Выбрано товаров: 66
