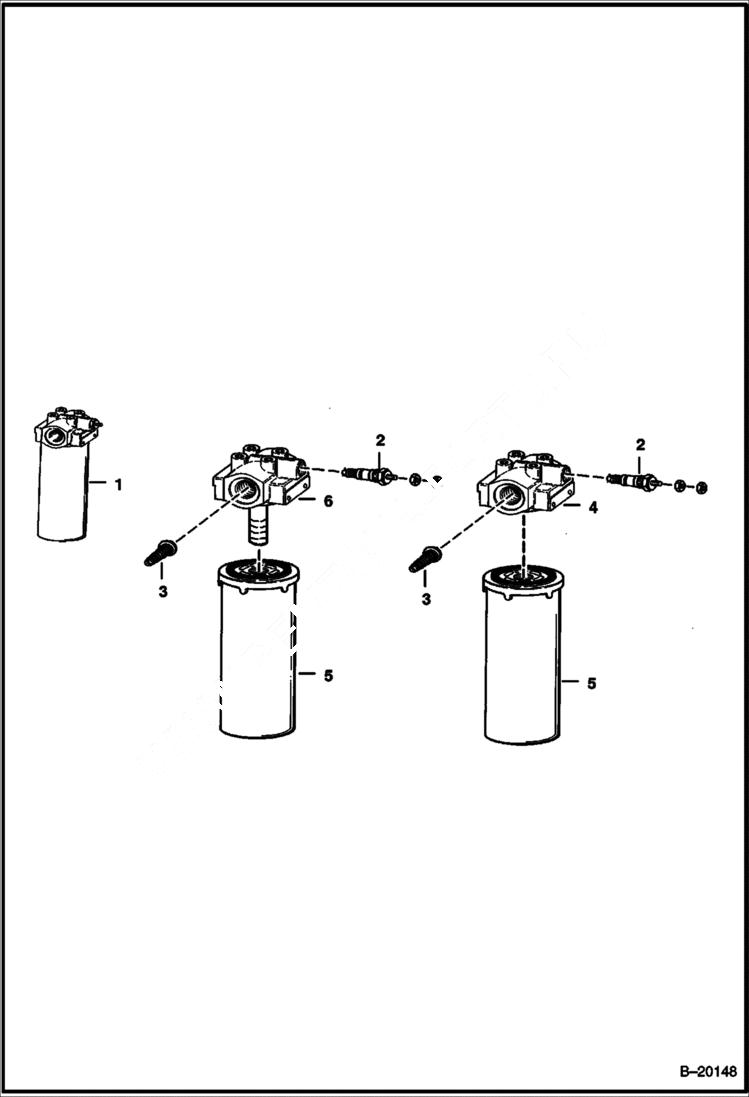

Запчасти Bobcat 800s HYDROSTATIC OIL FILTER HYDROSTATIC SYSTEM

1

6661247

FILTER W/Ref. 2-5 (50 PSI by-pass & switch) - Was 6648905 - A

1

6661282

FILTER ASSY. W/Ref. 2, 3, 5 & 6 (50 PSI by- pass, switch & internal check valve)

2

6660260

SWITCH pressure - Normally closed

2

6599365

KIT Nut, washer & o-rings for switch

3

VALVE NLA - by-pass (50 PSI - Order Ref. 1)

4

HEAD NSS - Order 6661247 Filter Assy.

5

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long - Was 6630977 - B

6

HEAD NSS - W/Internal check valve - Order 6661282 Filter Assy.
