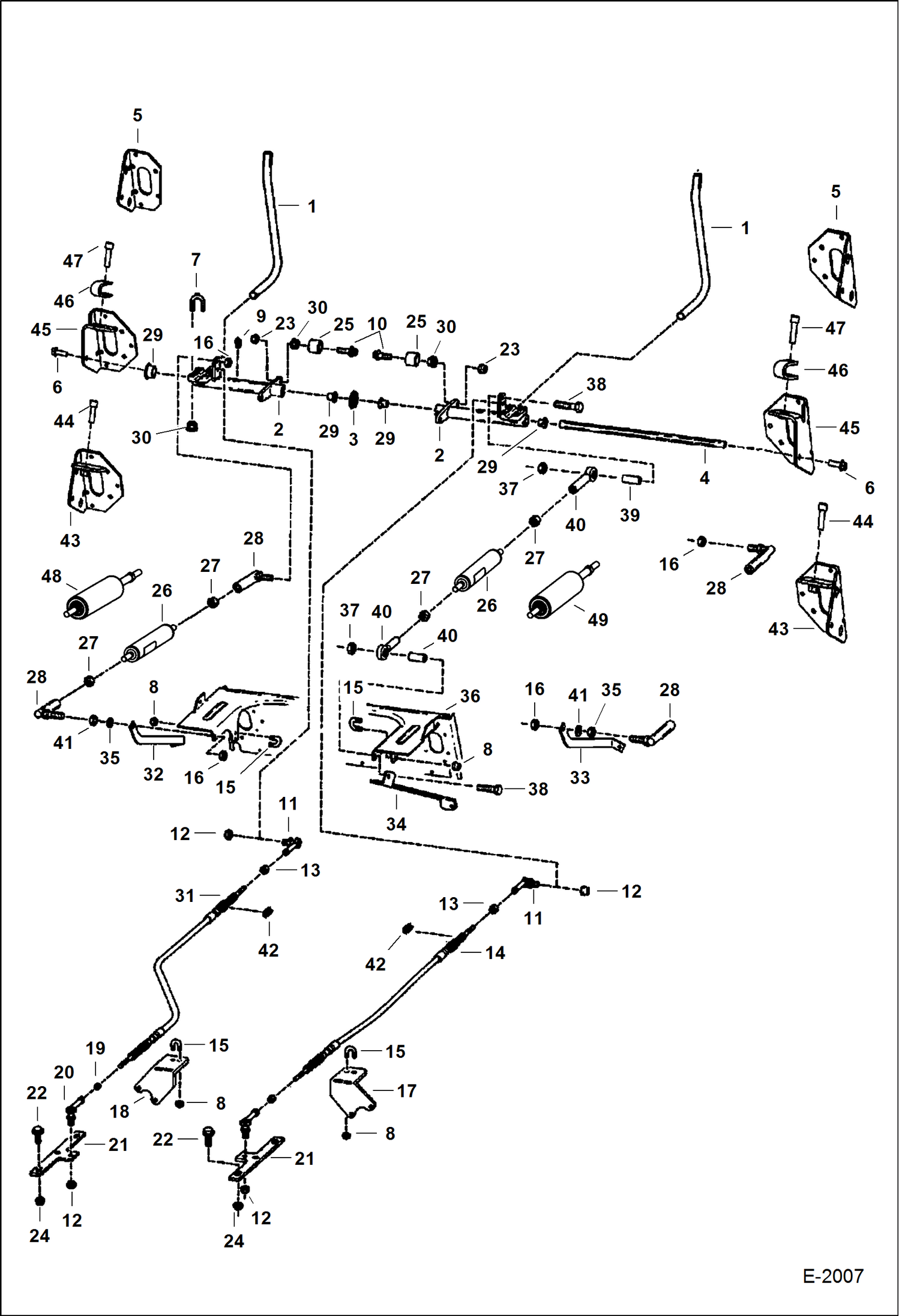

Запчасти Bobcat 800s HAND CONTROLS HYDROSTATIC SYSTEM

1

6576991

LEVER

1

6576991

LEVER

1

6702543

LEVER, STEERING for Cobra style handles

1

6702543

LEVER, STEERING

2

6702543

LEVER, STEERING NLA - W/O Notch for bushing tab - Order 6703881 Bellcrank & (2) of 6703879 Bushing - Was 6700197 - C

2

6702543

LEVER, STEERING

2

6703881

BELLCRANK W/ Notch for bushing tab

2

6703881

BELLCRANK

3

6599741

WASHER wave

4

ROD NLA - Use W/Ref. 6 (17C-616 Bolt) - Order 6716545 Rod & (2) 45C-620 Bolt - Was 6576250 - A

4

6716545

ROD Use W/Ref. 45C-620 Bolt - Was 6716945 - D

5

6577230

BRACKET

6

17C616

BOLT 5

6

45C620

BOLT Was 45C-624 - A

7

6732997

U-BOLT Was 6700768 - A

8

85D5

NUT 5

9

6518200

FITTNG, GREASE 10

10

6705966

BOLT Was 93G000628B - B

11

6631036

JOINT R.H. thread - I.D. only

12

86D4

NUT

13

8D4

NUT

14

6710273

CABLE W/Ref. 42 - 30'' (762mm) long - Was 6655825 - A

15

6592766

U-BOLT

16

62D6

NUT 5 Was 86D000006B - B

17

6703627

MOUNT Was 6700078 - A

18

6703626

MOUNT Was 6700077 - A

19

13D4

NUT L.H. thread

20

6652799

BALL JOINT L.H. thread - I.D. only

21

6704616

LEVER pintle - Was 6703633 - A

22

35C610

BOLT 5 Was 17C000610B - B

23

57D6

NUT 5 Was 61D000006B

24

95D6

NUT Was 91D000006B - A

25

6704435

WEAR CAM Was 6576200 - C

26

GAS SPRING NLA - Japan Option - Order Ref. 48 - Was 6649551 - A

27

8D6

NUT 5 Was 62D000006B

28

6599744

BALL JOINT

29

BUSHING NLA - W/O Tab - Order 6703881 Bellcrank & (2) of 6703879 Bushing -Was 6700348 - C

29

29

6703879

BUSHING, PLASTIC W/tab

29

6703879

BUSHING, PLASTIC W/tab

30

83D6

NUT 5

31

6710274

CABLE W/Ref. 42 - 32'' (812,8MM) LONG - WAS 6658251 - A

32

6703551

BRACE L.H.

32

6703551

BRACE

33

BRACE See Illustration PANELS/ TS1009 NLA - R.H. - Order Ref. 34 (2) ea. of Ref. 37-40 - WAS 6703546 - A

33

34

6708064

BRACE R.H.

35

25E18

WASHER

36

6579459

PANEL See Illustration PANELS/ TS1009

37

95D6

NUT Was 91D000006B - A

38

17C636

BOLT

39

6708314

BUSHING, SPACER

40

6512954

ROD END R.H. threads

41

62D6

NUT 5

42

6666534

SEAL

43

BRACKET NLA - R.H. - Order Ref. 45-47 - Was 6733022 - A

43

BRACKET NLA - L.H. - Order Ref. 45-47 - Was 6733024 - A

44

93G824

BOLT Was 73G824 - A

45

7128600

BRACKET RH

45

7128601

BRACKET LH

46

7121779

PAD

47

73G828

BOLT

48

7188108

GAS SPRING
