Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

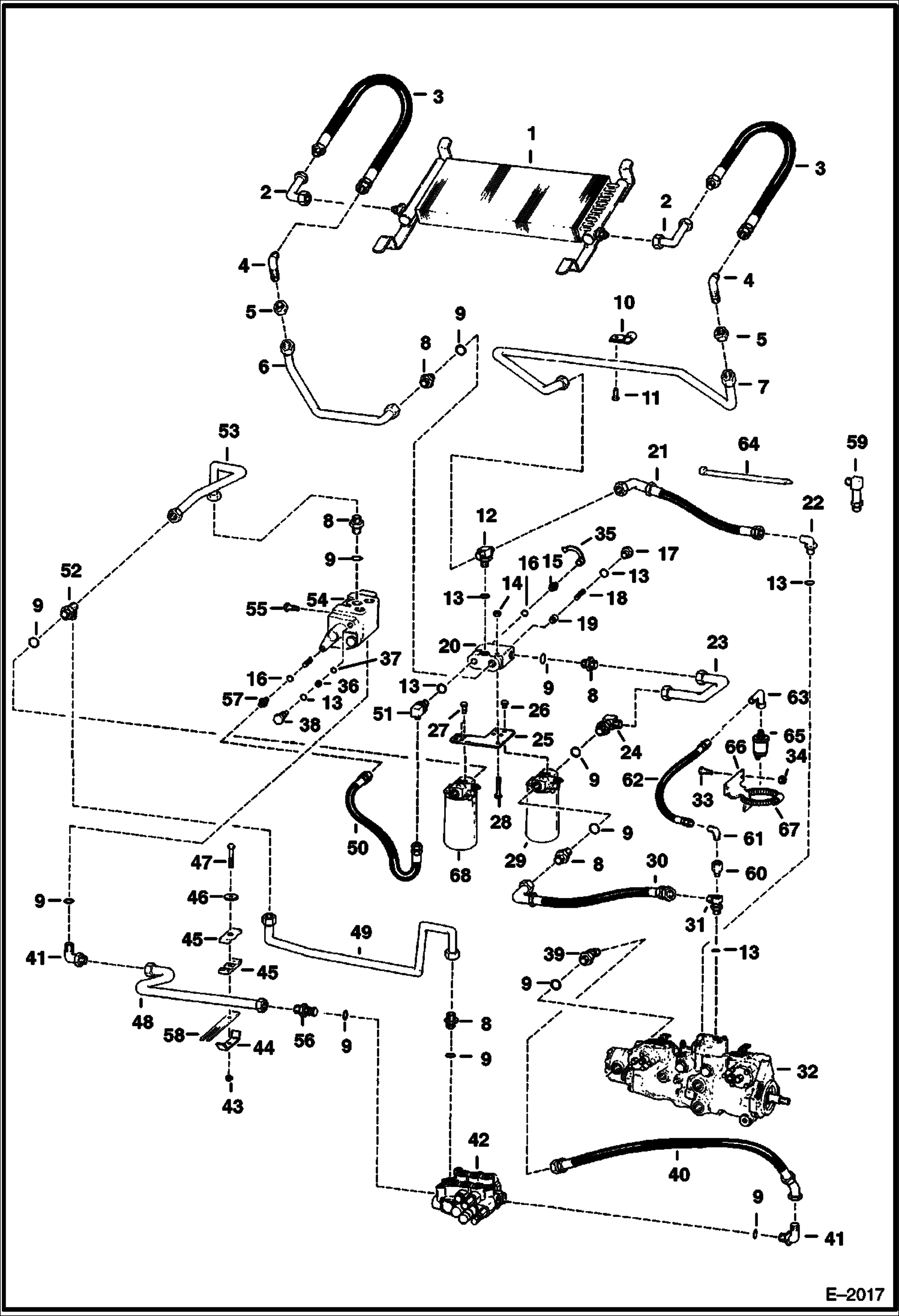

Схема запчастей Bobcat 800s - HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6662948

COOLER oil - Was 6659359 - A

2

6703012

TUBE Was 6700920 - A

3

6654205

HOSE

4

88F8

FITTING

5

86F8

NUT 5

6

6579665

TUBE

7

6579664

TUBE

8

15K8

FITTING W/Ref. 9

9

79K12

O RING 10

10

6H18

CLIP

11

84G3712

BOLT 5

12

6700209

TEE

13

79K10

O RING 10

14

85D6

NUT, 5

15

6630168

COUPLER W/Ref. 16

16

79K6

O RING 10

17

6561811

PLUG filter by-pass - W/Ref. 13

18

6567020

SPRING

19

6565620

POPPET poppet

20

6579689

PORT BLOCK

21

6705981

HOSE Was 6700232 - A

22

17K7

ELBOW W/Ref. 13 - for Use W/M91- 46907 & 46909 pumps only

23

6579663

TUBE

24

6700599

ELBOW W/Ref. 9

25

6579693

MOUNT

26

35C610

BOLT 5 Was 17C000608B - B

27

17C614

BOLT

28

17C640

BOLT 5 Was 17C000636B

29

6661247

FILTER See Illustration HYDROSTATIC OIL FILTER/ B20148 WAS 6648905 - A

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long - Was 6630977 - B

30

6707464

HOSE Was 6700233 - A

31

6579651

ELBOW W/Ref. 14

32

PUMP See Illustration HYDROSTATIC PUMP/ E2011

33

17C416

BOLT

34

85D4

NUT 5

35

6630367

CAP dust

36

80K14

BACK-UP WASHER Was 73K000014B - B

37

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

38

6592720

PLUG W/Ref. 13, 36 & 37

39

18K8

FTG W/Ref. 9

40

6700239

HOSE

41

17K8

FITTING W/Ref. 9

42

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1051 See Illustration HYDRAULIC CONTROL VALVE/ TS1008

43

85D5

NUT 5

44

6502203

CLAMP

45

6701892

CLAMP Was 6577696 - A

46

872229

WASHER

47

17C544

BOLT Was 17C000540B

48

6579879

TUBE

49

6579877

TUBE

50

6617708

HOSE

51

1300913

ELBOW W/Ref. 13

52

21KB1212

FITTING, HYD TEE W/Ref. 9 - Was 21K-8 - A

53

6579878

TUBE

54

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUX.

55

17C720

BOLT

56

6534917

ADAPTER W/Ref. 9, 58K000018B O-Ring & 73K000018B Back-up Washer W/Ref. 16

57

15K5

FITTING W/Ref. 16

58

6702548

PAD

59

6519195

ELBOW W/Ref. 13 - for Use W/M91- 46910 & 46911 pumps

60

6563922

SNUBBER W/Filter

60

6563920

FILTER

61

83F3

ELBOW 5

62

6530901

HOSE

63

85F3

ELBOW

64

6610510

TIE Was 30H000031B

65

SENDER See Illustration ENGINE ELECTRICAL SYSTEM/ E2008 HYD. CHG. PRESS.

66

6704319

MOUNT

67

42H16

CLAMP, HOSE 5 Was 42H000024B

68

FILTER ASSY. See BTI267 NLA - Was 6648905 - A

68

68

6661282

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ B20148 W/INTERNAL CHECK VALVE - WAS 6660451 - A

68

6661282

FILTER ASSY.

68

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long - Was 6630977 - B

Выбрано товаров: 74
