Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5084 11290 & Below) HYDROSTATIC SYSTEM

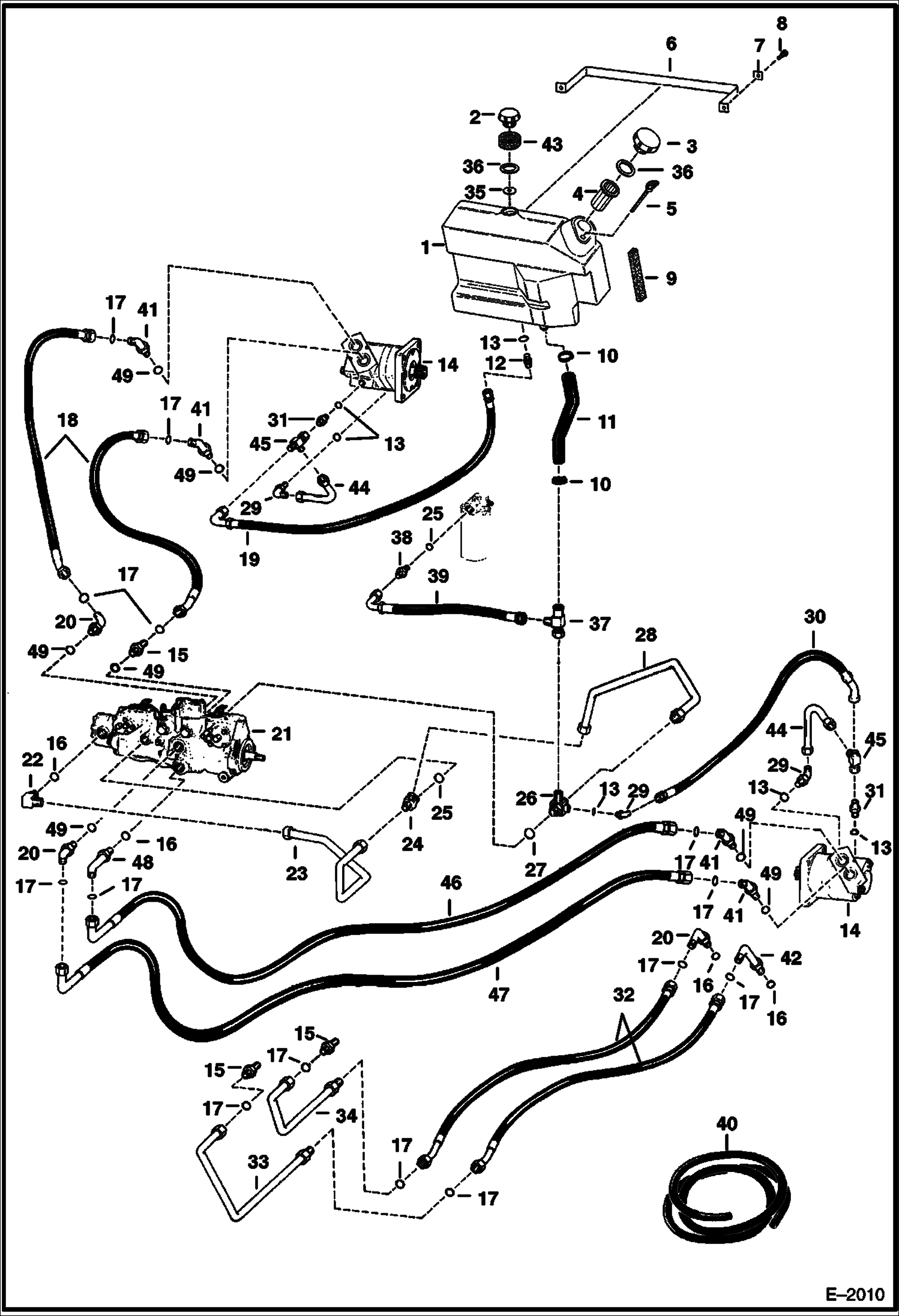

Схема запчастей Bobcat 800s - HYDROSTATIC CIRCUITRY (S/N 5084 11290 & Below) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6704551

TANK Was 6700459 - A

2

6727475

CAP, OIL HYD Breather - Also Order Ref. 40 - Was 6577785 - A

3

6728149

CAP , HYD NON VENTED Hyd. Oil - Also Order Ref. 36 - Was 6532508 - A

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6577459

DIPSTICK

5

25K20010

O RING 10

6

6579939

BAND

7

6559447

WASHER square

8

84G3712

BOLT 5

9

FOAM NLA - 16''(406 MM) long - Order Ref. 40

10

44H20

CLAMP Was 6666864 - A

11

6579685

HOSE

12

15K5

FITTING W/Ref. 13

13

79K6

O RING 10

14

MOTOR See Illustration HYDROSTATIC MOTOR/ B20147

15

41E1616

ADAPTER W/Ref. 17 & 49 - Was 52E000016B - A

16

79K16

O RING 10

17

58K21

O RING 10

18

6700240

HOSE

19

6703013

HOSE Was 6706754 - B,D

20

42E1616

ELBOW W/Ref. 17 & 49 - Was 55E000016B - A

21

PUMP See Illustration HYDROSTATIC PUMP/ E2011

22

6702096

ELBOW W/Ref. 16

23

6579662

TUBE

24

6700089

TEE W/Ref. 25

25

79K12

O RING 10

26

6702095

TEE W/Ref. 27

27

79K20

O RING 10

28

6579661

TUBE

29

17K5

ELBOW W/Ref. 13

30

6578327

HOSE Was 6577891 - B

31

RELIEF VALVE NLA - inline (225 PSI) - W/Ref. 13 - fWas 6658676 - A

32

6700236

HOSE Was 6701377 - A

33

TUBE NLA - Order Ref. 20, 41 & 47 - Was 6579679 - A

34

TUBE NLA - Order Ref. 41, 46, & 48 - Was 6702293 - A

35

6701552

BAFFLE

36

6700631

GASKET

37

6702001

TEE

38

6659459

CHECK VALVE W/Ref. 25 - Was 6655572 - A

39

6707464

HOSE Was 6700233 - A

40

6511855

SEAL self adhesive - bulk - sold per foot

41

6665206

ELBOW W/Ref. 49 - Was 69E000016B - B

42

ELBOW See BTI272 NLA - Order 6722528 Hose Kit - Was 77E000016B - B

43

6703427

FOAM FILTER

44

6703815

TUBE

45

13K5

TEE

46

6704548

HOSE

47

6704547

HOSE

48

77E1616

ELBOW

49

75K16

O RING 10

Выбрано товаров: 50
