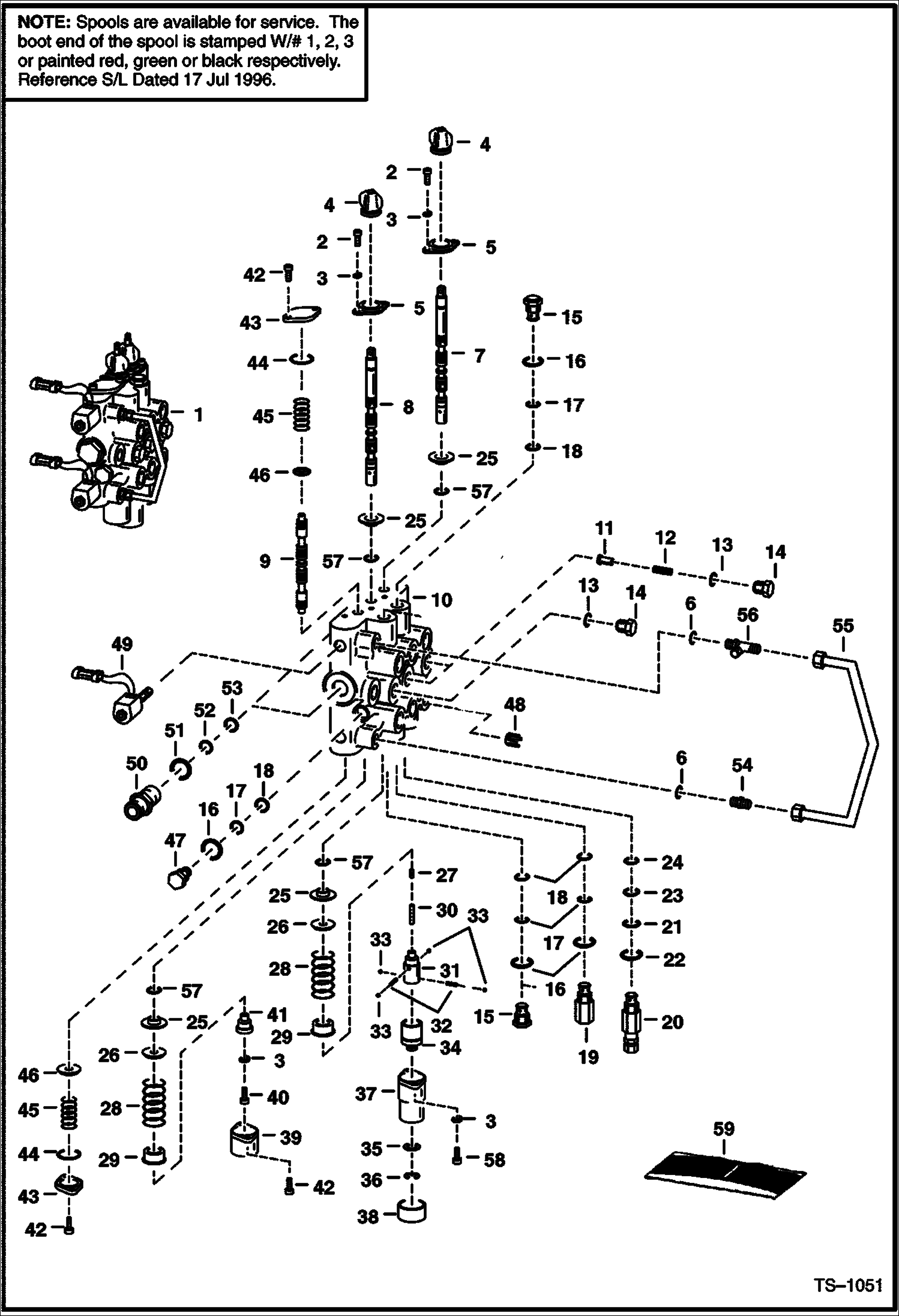

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Control Valve) HIGH FLOW HYDRAULICS

1

VALVE See BTI281 See BTI295 NLA - REF. 2-57- W/LONG SPOOLS - WAS 6587054 - A

1

VALVE See BTI295 NLA - REF. 2 - 57 - W/LONG SPOOLS - W/MOTORING SPOOL - SEE NOTE PRIOR TO PAGE 118 - WAS 6586520 - A

1

VALVE See BTI295 NLA - REF. 2 - 57 - W/LONG SPOOLS - W/MOTORING SPOOLS - WAS 6588768 - A

2

6588165

SCREW Was 73G000410B - B

3

22E4

WASHER

4

6587763

BOOT rubber - Was 6583727 - A

5

6592123

RETAINER

6

79K6

O RING 10

7

6666576

SPOOL lift - #1 or red - SEE NOTE

7

6666577

SPOOL lift - #2 or green - SEE NOTE

7

6666578

SPOOL lift - (3) black - SEE NOTE

8

6666579

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666580

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666581

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588190

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18 - Was 6661345 - A

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING BACK-UP WASHER NOT REQUIRED

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18

20

VALVE NLA - Main Relief - W/Ref. 21-24 - Pressure Preset At Factory - Was 6658838 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10 Was NSS - D

22

6665569

WASHER back-up - Was NSS - D

23

25K20016

O RING 10 Was NSS - D

24

6665570

RING glide - Was NSS - D

25

6538466

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

PLUG NLA - Order 6596807 Plug & 54K020002B O-Ring - Was 6592752 - A

27

6596807

PLUG plastic - 0.46'' long

27

54K20002

O'RING 10

28

6587580

SPRING Was 6592106 - A

29

6592100

COLLAR

30

6586918

SCREW Was 6535747 - A

31

6587575

ADAPTER Was 6592099 - A

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

BONNET NLA - .25'' FLANGE - ORDER 6589226 BONNET, Ref. 57 (2) OF 6588982 SCREW- WAS 6592094 - A

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP Was 6631704 - A

39

BONNET NLA - .25'' flange - Order 6587633 Bonnet, 6662848 Cap & (2) of 6588164 Bolt - Was 6592097 - A

39

7101345

BONNET, DETENT HYD VALVE W/.50'' flange - Was 6587633 - C

40

74G416

SCREW

40

6588166

SCREW

41

6592109

ADAPTER

42

6588163

SCREW Was 69G000412B - A

42

6588164

SCREW

43

6538574

END CAP

44

58K124

O RING 10

45

6530899

SPRING

46

6537096

WASHER

47

6592720

PLUG W/Ref. 16-18

48

6532633

RESTRICTOR .153''

49

6653395

VALVE, SOLENOID

49

6665758

VALVE W/O-Ring

49

79K7

O RING 10

49

6717708

COIL, 14 VOLT 14 Volt - Was 6665759 - A

49

6586459

SEAL KIT Was 6534559 - A

50

6534917

ADAPTER W/Ref. 51-53

51

79K12

O RING 10

52

80K18

RING back-up

53

58K018

O-RING 10 Was 25K24 - A

54

15K7

FITTING W/Ref. 6

55

6702507

TUBE

55

6588770

TUBE

56

21K5

TEE W/Ref. 6

56

TEE NLA - W/Ref. 6 - W/O Flared End O-Rings - Was 6587889 - A

56

6805243

TEE W/Ref. 6 - W/ Flared End O-Rings

56

97K6

O RING Flared End

57

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

58

6588163

SCREW 7/8'' lomg

58

6588982

SCREW 1'' long

59

6816250

KIT, SEAL One Spool - Ref. 4, 57 & 58 - Was 6595856 - A

59

6589861

SEAL KIT complete - Ref. 4, 13, 16-18, 21-24, 42, 44, 57 & 58- Was 6586466 - A

59

6632279

KIT, SEAL Ref. 21-24

59

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A
