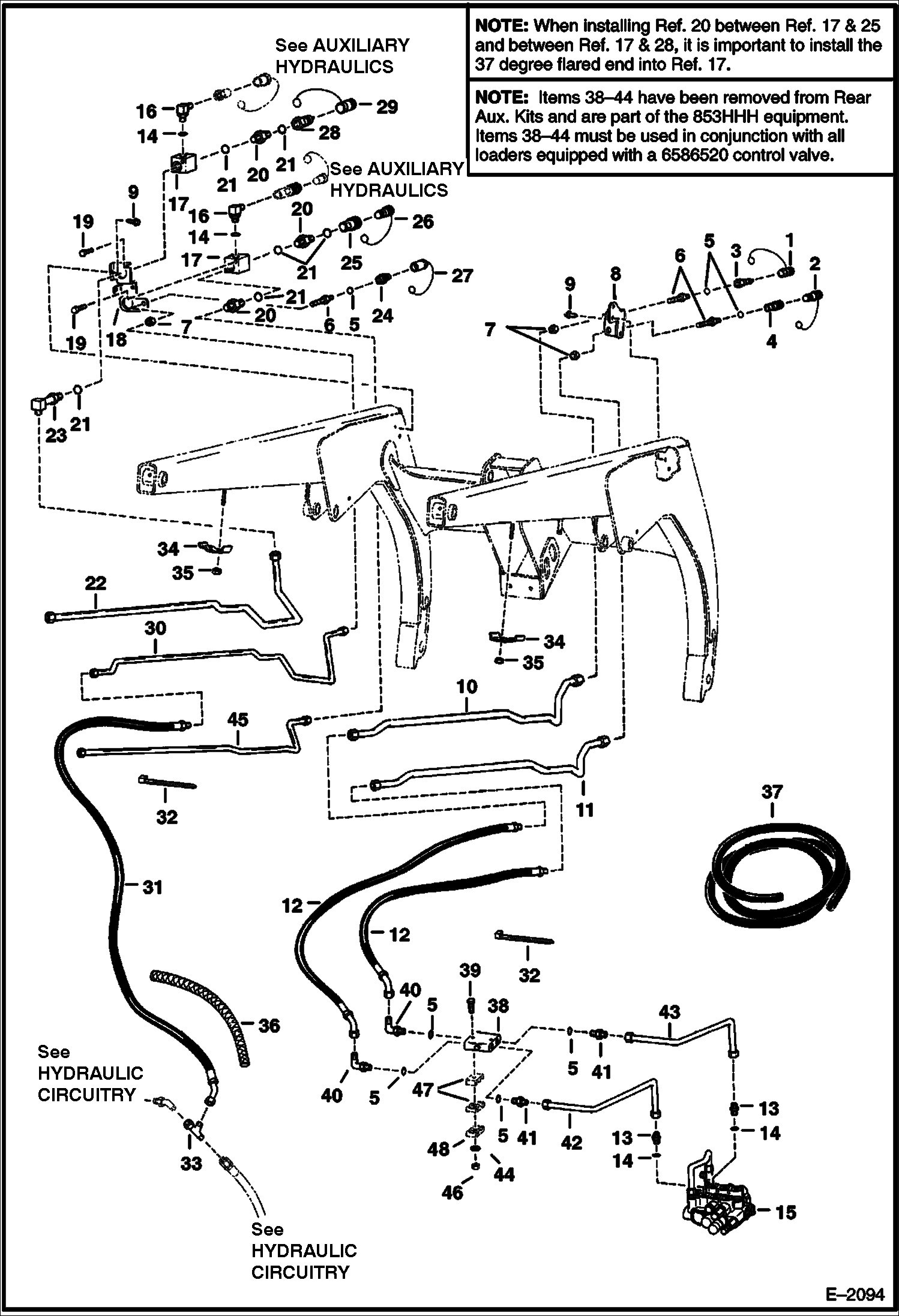

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Auxiliary Hydraulics) HIGH FLOW HYDRAULICS

1

1513549

CAP

2

1519324

PLUG

3

6648969

QUICK COUPLER male

4

6648967

QUICK COUPLER female

4

6655795

SEAL KIT

5

79K6

O RING 10

6

45K5

FITTING

7

86F5

NUT

8

6706750

BRACKET Was 6703411 - A

9

84G3112

BOLT 5 5/16'' dia.

9

84G3716

SCREW 5 3/8 in. Dia. - Was 84G-3712 - B

10

6703413

TUBE

11

6703412

TUBE

12

6703430

HOSE

13

731795

CONNECTR W/Ref. 14

14

79K10

O RING 10

15

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1051

16

6704013

ELBOW W/Ref. 14 - Was 6703395 - C

17

6704010

BLOCK Was 6703396 - C

18

6706752

BRACKET Was 6704011 - A

19

17C612

BOLT 5

20

15K8

FITTING W/Ref. 21

21

79K12

O RING 10

22

6704109

TUBE

23

6519187

ELBOW W/Ref. 21

24

6658253

QUICK COUPLER male - thread together - shown

24

6658252

QUICK COUPLER female-thd. together- not shown

25

6648968

QUICK COUPLER female

25

6655796

SEAL KIT

26

6515598

PLUG

27

3679001

CAP Was 6658255 - A

28

6648970

QUICK COUPLER male

29

6515599

CAP

30

6704110

TUBE Was 6703414 - C

31

6703429

HOSE

32

6624289

STRAP, TIE Was 6512052 - A

33

13K5

TEE

34

6703216

CLAMP

35

59D6

NUT

36

COVER NLA - 35''(889,0 mm) long - Order Ref. 37

37

6651436

HOSE COVER bulk - Sold Per Foot

38

6630527

VALVE

38

6660645

SEAL KIT

39

17C560

BOLT

40

17K5

ELBOW W/Ref. 5

41

15K5

FITTING W/Ref. 5

42

6702511

TUBE

43

6702512

TUBE

44

25E15

WASHER

45

6704108

TUBE

46

85D5

NUT 5

47

6701892

CLAMP See Illustration HYDRAULIC CIRCUITRY/ TS1011

48

6502203

CLAMP See Illustration HYDRAULIC CIRCUITRY/ TS1011
