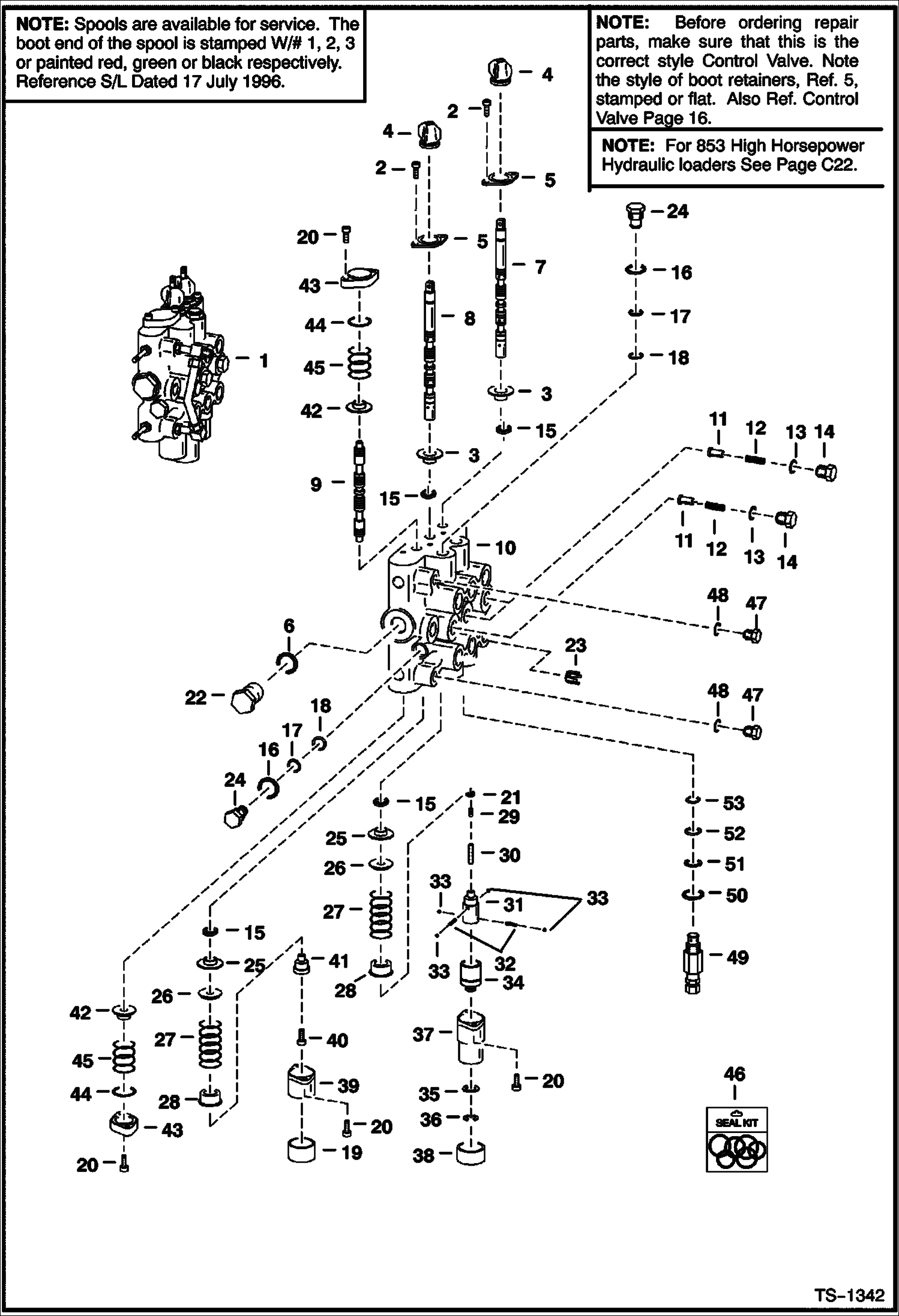

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE, CONTROL SERVICE See BTI295 Ref. 2 - W/short spools - Was 6596095 - A

1

7229299

VALVE, CONTROL SERVICE See BTI295 Ref. 2-53

2

29G412

BOLT

3

6589565

BUSHING seal

4

6587763

BOOT rubber

5

6589564

RETAINER flat

6

79K6

O RING 10

7

6666588

SPOOL lift - # 1 or Red - SEE NOTE

7

6666589

SPOOL lift - # 2 or Green-SEE NOTE

7

6666590

SPOOL lift - # 3 or Black - SEE NOTE

8

6666591

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666592

SPOOL tilt - # 2 or Green-SEE NOTE

8

6666593

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING BACK-UP WASHER NOT REQUIRED

19

6662848

CAP

20

29G416

BOLT

21

54K20002

O'RING 10

22

24K8

PLUG W/Ref. 21 - flat boss face

22

90K8

PLUG tapered boss face - W/Ref. 21 - Was 90KV00008B - A

23

6532633

RESTRICTOR 0.153

24

6592720

PLUG W/Ref. 16-18

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

PLUG NLA - plastic - order 6596807 Plug & 54K020002B O - RingWas 6592752 - B

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6537096

WASHER

43

6588981

END CAP .625'' thick

44

58K124

O RING 10

45

6588197

SPRING

46

6816250

KIT, SEAL One Spool - Ref. 2, 4 & 15 - Was 6803605 - A

46

6816715

KIT, SEAL See BTI374 - Ref. 2, 4, 6, 13, 15-18, 20, 21, 29, 42, 44 & 48 - Was 6596311 - A

46

6632279

KIT, SEAL main relief - Ref. 4-13

46

6809425

SEAL KIT Ref. 13 & 16-18 - Was 6586461 - A

47

47K5

PLUG W/Ref. 48 - flat boss face

47

90KV5

PLUG W/Ref. 48 - tapered boss face

48

79K6

O RING 10 flat boss face

48

95K6

O'RING tapered boss face

49

VALVE NLA - Relief - W/Ref. 50-53 - Pressure Set At Factory

49

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

49

6659574

SEAL KIT W/Ref 50-53

50

O-RING NSS

51

WASHER NSS

52

WASHER NSS

53

O-RING NSS
