Запчасти Bobcat 800s LIFT CYLINDER HYDRAULIC SYSTEM

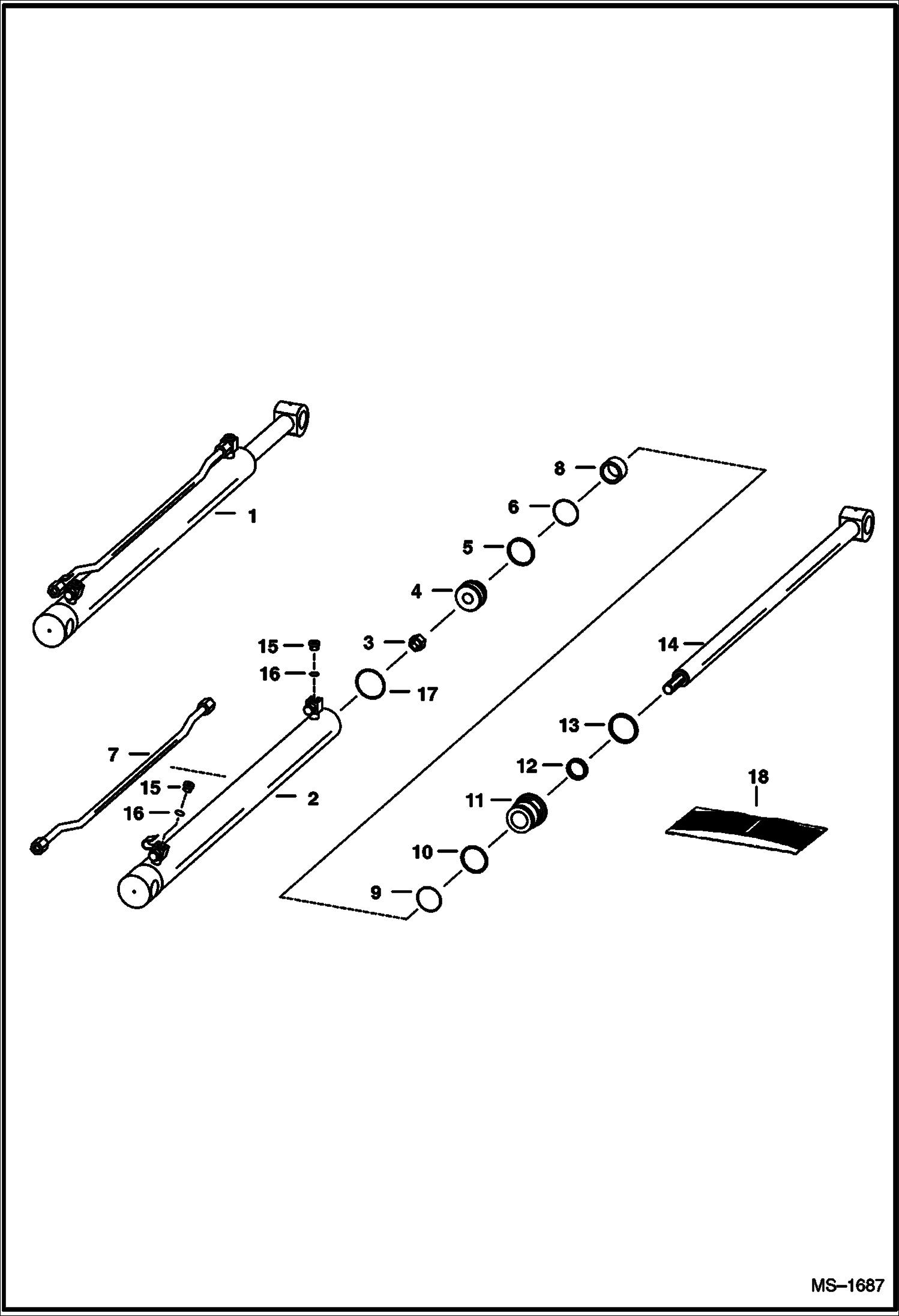

Схема запчастей Bobcat 800s - LIFT CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6587125

CYLINDER, LIFT Ref. 2-17

2

6587133

CASE

3

92D16

NUT

4

6661820

PISTON W/Ref. 5 & 6 - W/Non-Replaceable Wear Sleeves - Was 6665207 - A

5

6519328

SEAL Was NSS - D

6

25K30126

O RING 10 Was NSS - D

7

6532739

TUBE

8

6587134

SPACER

9

25K60128

O RING 10 Was 54K60128 - A

10

80K328

BK UP RG back-up - Was NSS - D

11

6539236

HEAD

12

6667326

SEAL rod - Was NSS - D

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

6587126

ROD

15

PLUG NLA - W/Ref. 16 - Flat boss face - Was 47K000005B - A

15

90KV5

PLUG W/Ref. 16 - Tapered boss face

16

79K6

O RING 10 Flat boss face

16

95K6

O'RING Tapered boss face

17

58K140

O-RING

18

6586915

SEAL KIT Ref. 3, 5, 6, 9, 10, 12, 13 & 17

Выбрано товаров: 20
