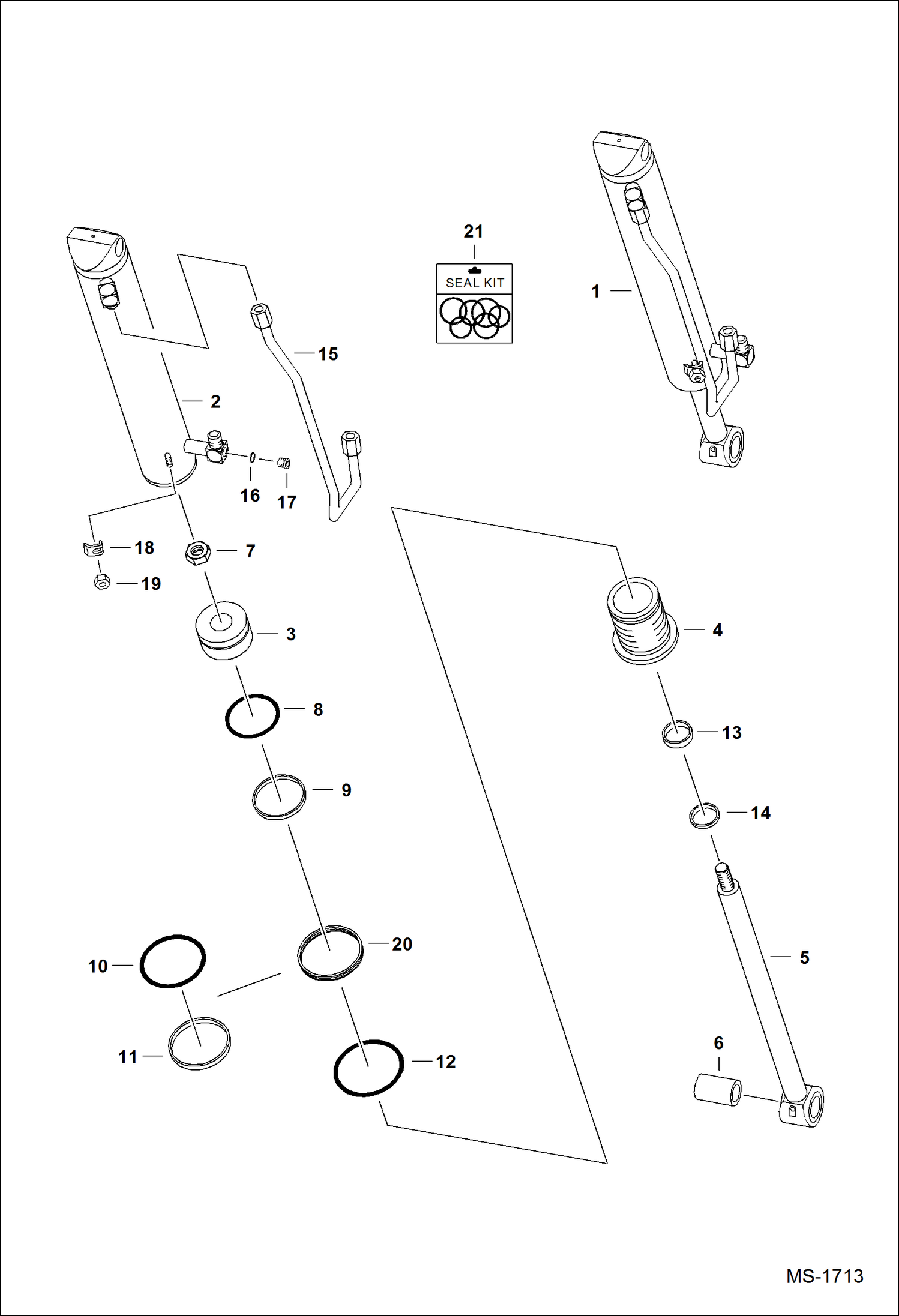

Запчасти Bobcat 800s TILT CYLINDER HYDRAULIC SYSTEM

1

6586991

CYLINDER, TILT tilt - Ref. 2 - 19

2

6586997

CASE 3.25'' (82,6 mm) I.D.

3

6586996

PISTON

4

6539185

HEAD, CYL TILT

5

6586993

SHAFT, ROD CYL TILT

6

6589665

BUSHING Was 6534387 - A

7

6810539

NUT Was 6804592 - A

8

25K30226

O RING 10 Was 54K30226 - B

9

6513466

PISTON RG Piston - Was NSS - D

10

58K234

O RING 10 Was 54K40300 - B

11

73K234

BACK-UP RING back-up - Was 80K234 - A

12

82K236

O-RING Was 58K-236 - A

13

6667326

SEAL Was NSS - D

14

6690707

WIPER, ROD CYL Was 6665086 - A

15

6532590

TUBELINE, HYD

16

79K6

O RING 10 Flat boss face

16

95K6

O'RING Tapered boss face

17

PLUG NLA - Flat boss face - Was 47K000005B - A

17

90KV5

PLUG Tapered boss face

18

6562266

CLAMP

19

95D6

NUT Was 91D000006B - A

20

7008354

SEAL, QUAD

21

7135551

KIT, SEAL Ref. 7-9, 12-14, & 20 - Was 6804605 - A
