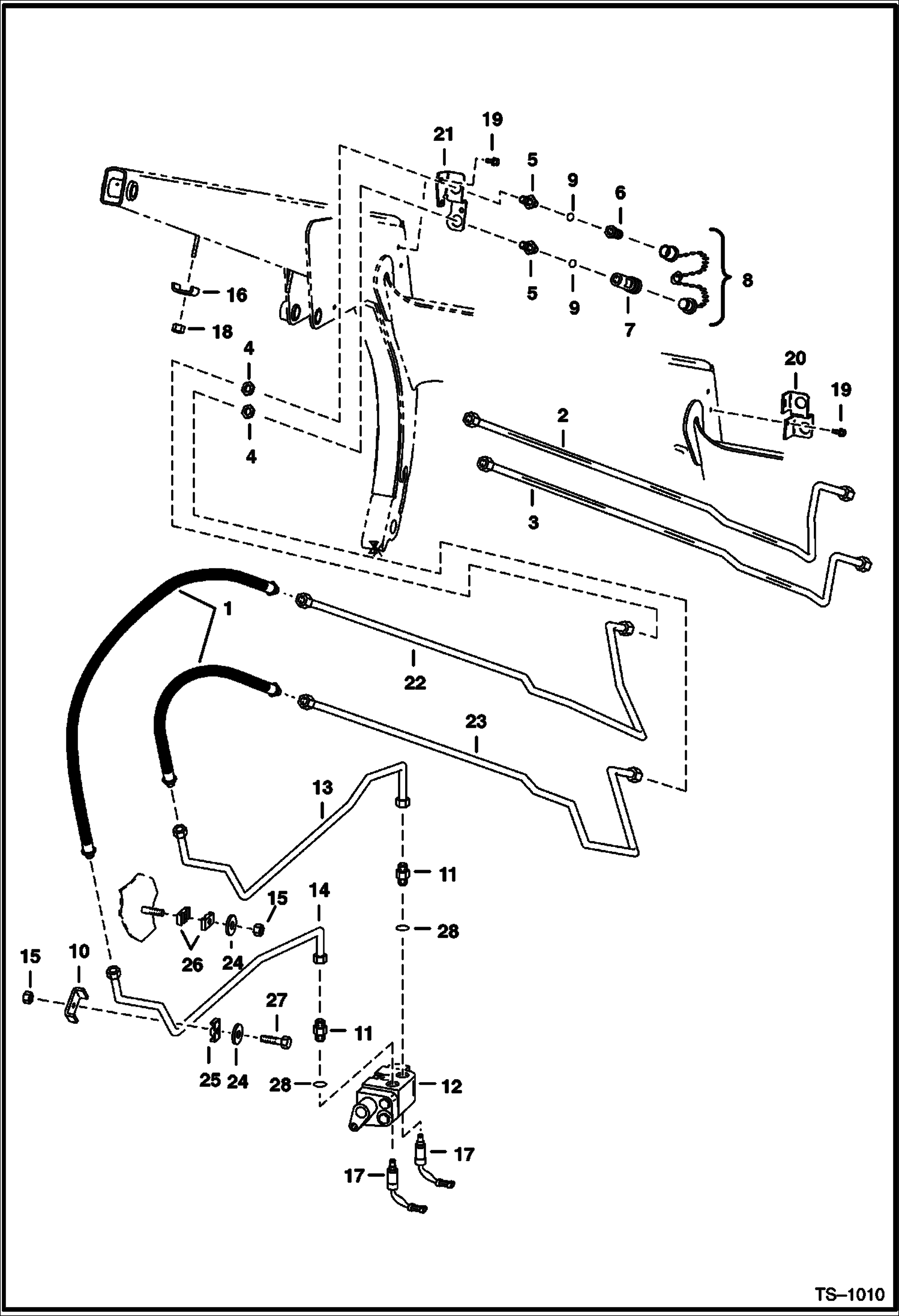

Запчасти Bobcat 800s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6708253

HOSE Was 6530780 - A

2

TUBE NLA - Order Ref. 21-23 - Was 6700961 - A

2

TUBE NLA - Order Ref. 21-23 - Was 6703416 - A

3

TUBE NLA - Order Ref. 21-23 - Was 6700962 - A

3

TUBE NLA - Order Ref. 21-23 - Was 6703415 - A

4

86F8

NUT 5

5

6579875

CONNECTOR

6

6598757

COUPLER, POPPET MALE straight

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

7

6665430

BACKUP RING

8

6513709

CAP PLUG W/Plug Assy. - Rubber

8

6515167

PLUG steel

8

6515168

CAP steel

9

79K10

O RING 10

10

6568476

CLAMP

11

15K8

FITTING W/Ref. 28

12

VALVE See Illustration FRONT AUXILIARY VALVE/ C3266 FRONT AUX.

13

6705178

TUBE Was 6579867 - A

14

6705177

TUBE Was 6579868 - A

15

85D6

NUT, 5

16

6502203

CLAMP Was 6703216 - B

17

6649018

SOLENOID See Illustration FRONT AUXILIARY VALVE/ C3266

18

59D6

NUT

19

84G3112

BOLT 5 5/16'' dia.

19

84G3716

SCREW 5 3/8 in. Dia. - Was 84G-3712 - B

20

6703409

BRACKET See Illustration HIGH HORSEPOWER HYDRAULICS/ E2094 Ref. 18 for 853H Bracket

21

BRACKET NLA - Order 6706751 Bracket & (2) of 84G003712B Bolts-Was 6704113 - A

21

6706751

BRACKET See Illustration HIGH HORSEPOWER HYDRAULICS/ E2094 Ref. 18 for 853H Bracket

22

6704140

TUBE See Illustration HIGH HORSEPOWER HYDRAULICS/ E2094 Ref. 18 for 853H Tube

23

6704108

TUBE See Illustration HIGH HORSEPOWER HYDRAULICS/ E2094 Ref. 47

24

872229

WASHER

25

6701892

CLAMP

26

6592506

CLAMP

27

17C640

BOLT 5

28

79K12

O RING 10
