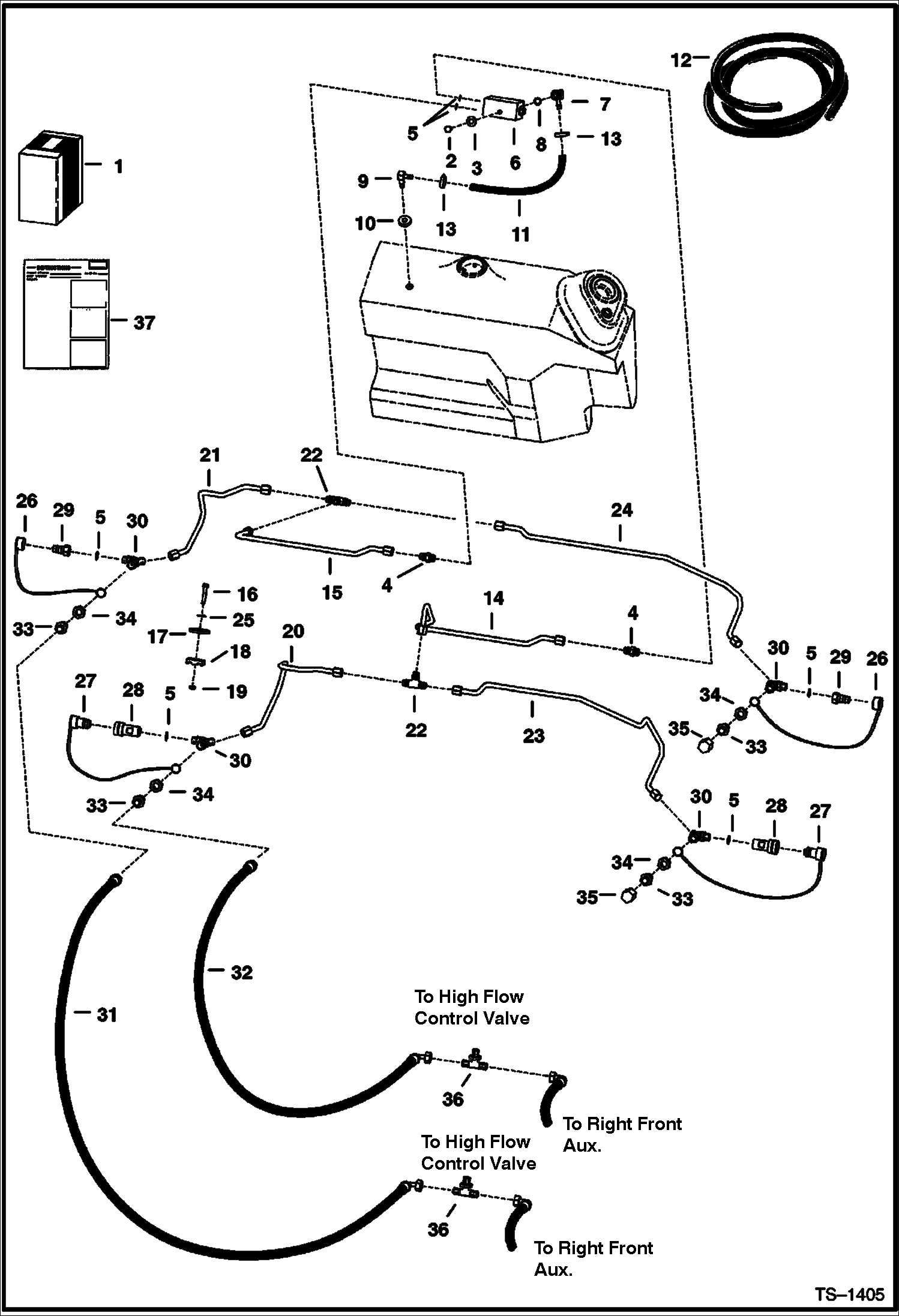

Запчасти Bobcat 800s PRESSURE RELEASE KIT (High Horsepower Hydraulics) ACCESSORIES & OPTIONS

1

6709951

KIT pressure release - Ref. 2 - 36

2

17C512

BOLT 5

3

25E17

WASHER 5

4

15K5

FITTING W/Ref. 5

5

79K6

O RING 10

6

6666611

VALVE pressure release

7

ELBOW NLA - Flat Boss Face - W/ Ref. 8 - Was 6657083 - A

7

6715183

ELBOW W/ Ref. 8 - Check Boss Face To Determine Correct Replacement O-Ring

8

79K5

O RING 10 Flat Boss Face

8

99K5

O-RING Tapered Boss Face

9

6598908

ELBOW

10

6553411

BUSHING

11

HOSE NLA - 9''(228,6 mm) long - Order Ref. 12

12

6577821

HOSE bulk - sold per foot

13

42HS04

CLAMP, HOSE Was 6515575 - A

14

6709952

TUBE

15

6709953

TUBE

16

17C428

BOLT

17

872229

WASHER

18

6578870

CLAMP

19

85D4

NUT 5

20

6709957

TUBE

21

6709956

TUBE

22

10K5

TEE

23

6709955

TUBE

24

6709954

TUBE

25

25E14

WSHR

26

1513549

CAP

27

1519324

PLUG

28

6648967

QUICK COUPLER female

28

6655795

SEAL KIT

29

6648969

QUICK COUPLER male

30

6706220

TEE

31

6706395

HOSE

32

6706396

HOSE

33

51E0404

ADAPTER

34

61E04

NUT

35

63E04

CAP

36

90F5

TEE

37

6724393

INSTRUCTIONS
