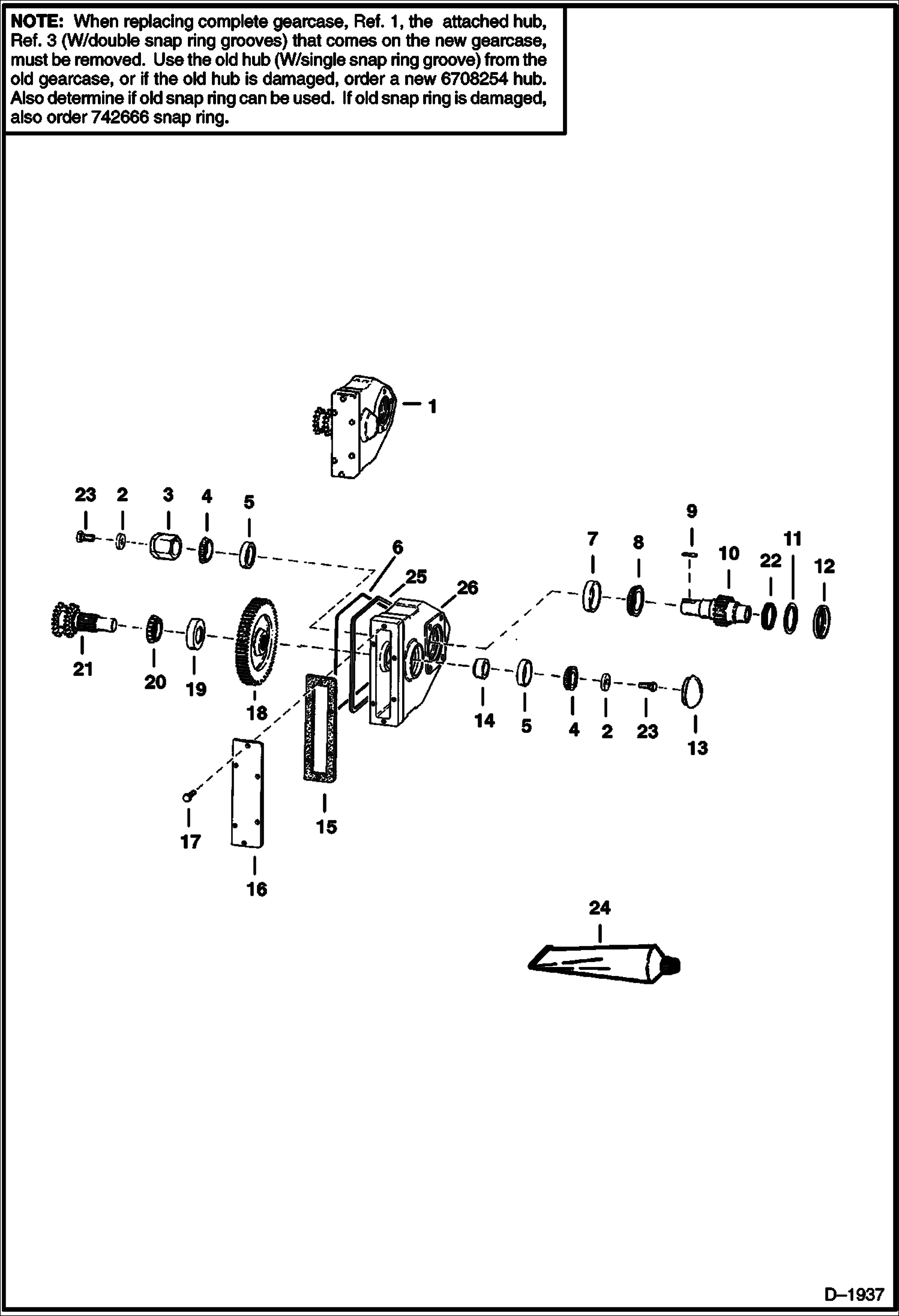

Запчасти Bobcat 800s GEARCASE DRIVE TRAIN

1

GEARCASE NLA - Ref. 2-23 Order 6708266 Gear- case, Ref. 6 & 25 - SEE NOTE

1

6708266

HOUSING, GEAR ASSY Ref. 2 - 5, 7 - 23 & 26-SEE NOTE Was 6578781 - A

2

6558234

WASHER

3

6708254

HUB single snap ring groove - Was 6703055 - A

4

6648774

BEARING Was 743778B - A

5

6648776

RACE Was 743777B - A

6

6558518

O-RING

7

1320905

CUP

8

1320904

CONE

9

6708255

KEY Was 7J006012B - B

10

6558271

SHAFT, GEARBOX INPUT

11

6559619

WASHER back-up

12

6513588

SEAL, OIL

13

6565289

CAP

14

6558276

COLLAR

15

6558273

GASKET

16

6558274

COVER

17

17C512

BOLT 5

18

6558270

GEAR, DRIVE

19

660181

CUP

20

731284

BEARING

21

6558278

SHAFT Was 6658278 - D

22

6515195

SEAL quad ring

23

17C1220

BOLT

24

6561395

SEALANT bore tite

25

6563574

RETAINER

26

HOUSING NLA - Order 6708266 Gearcase, Ref. 6 & 25 - Was 6563577 - A
