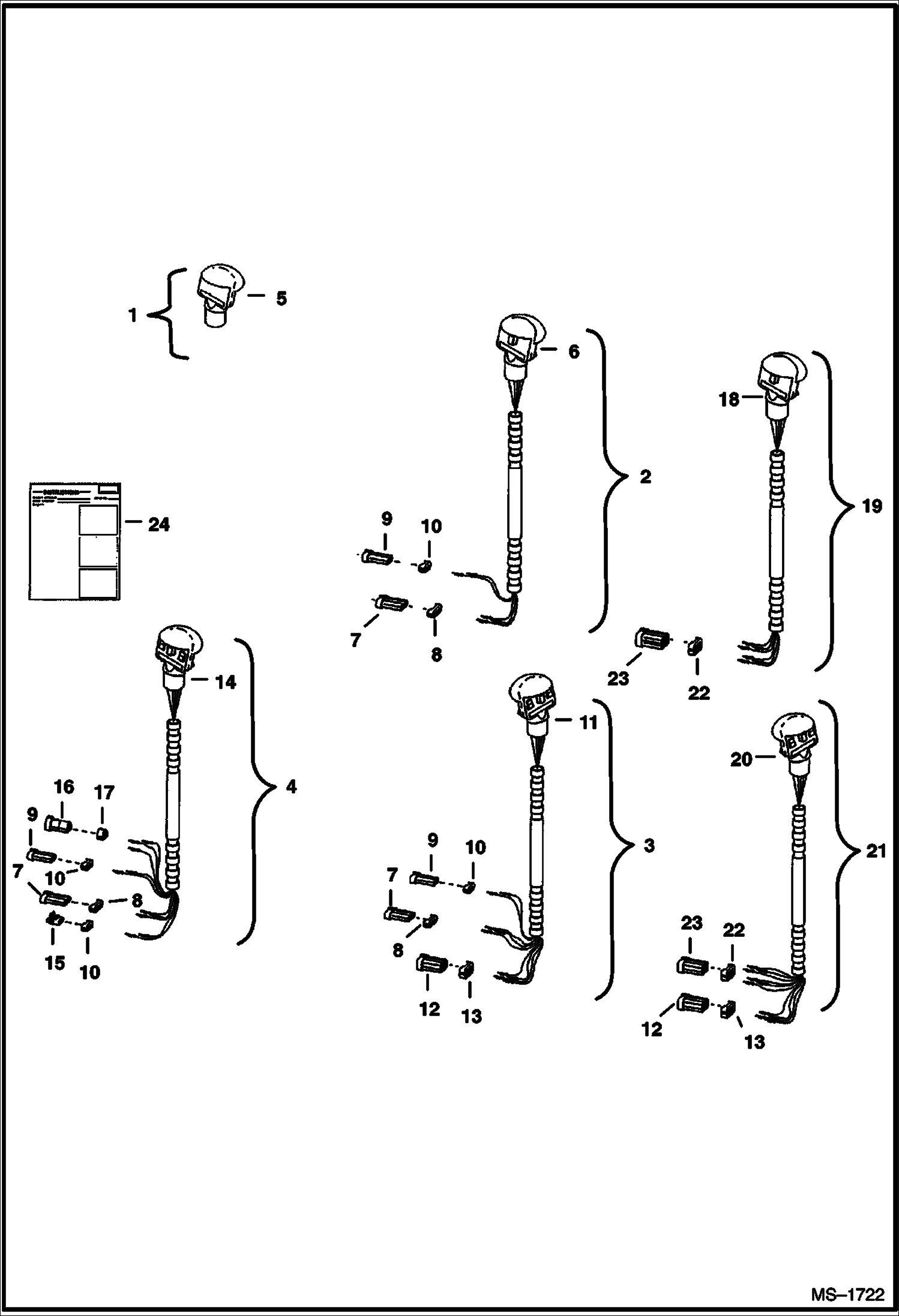

Запчасти Bobcat 800s HANDLE KITS ACCESSORIES & OPTIONS

1

6706565

KIT Ref. 5 & 24

2

6706566

KIT Ref. 6 - 10 & 24

3

6706567

KIT Ref. 7 - 13 & 24

4

6706568

KIT Ref. 7 - 10 & 14 - 24

5

6680415

HANDLE blank - Was 6705920 - A

6

6680414

HANDLE ASSY. 2-switch - Was 6705921 - A

7

6640699

CONNECTOR 3-pin

8

6640700

LOCK 3-pin

9

6641179

CONNECTOR 2-pin

10

6641180

LOCK Use W/ 2-pin connector

11

6680413

HANDLE ASSY R.H. deluxe - multi switch - Was 6706340 - A

11

6640690

PIN

11

6641176

SEAL

12

6641173

CONNECTOR 6-pin

13

6641181

LOCK 6-pin

14

6680412

HANDLE ASSY Was 6707976 - A

14

6640690

PIN

14

6640691

PIN

14

6641176

SEAL

14

6662257

PIN

14

6680447

DECAL Was 6677370 - A

15

6641178

CONNECTOR 2-pin

16

6664599

CONNECTOR 3-pin triangle

17

6664800

LOCK 3-pin triangle

18

6680456

HANDLE, 2-SWITCH PWM 2 - switch - PWM - Was 6705922 - A

19

6706734

KIT 2 - switch handle - Ref. 18 & 22 - 24

20

6680457

HNDL/4 SWITCH PWM R.H. deluxe - multi switch - PWM - Was 6705924 - A

20

6640690

PIN

20

6641176

SEAL

20

6662257

PIN

21

6706735

KIT R.H. deluxe - multi switch - Ref. 12, 13, 20 & 22 - 24

22

6662252

LOCK 6 - pin

23

6662246

CONNECTOR 6 - pin

24

6722759

INSTRUCTIONS
