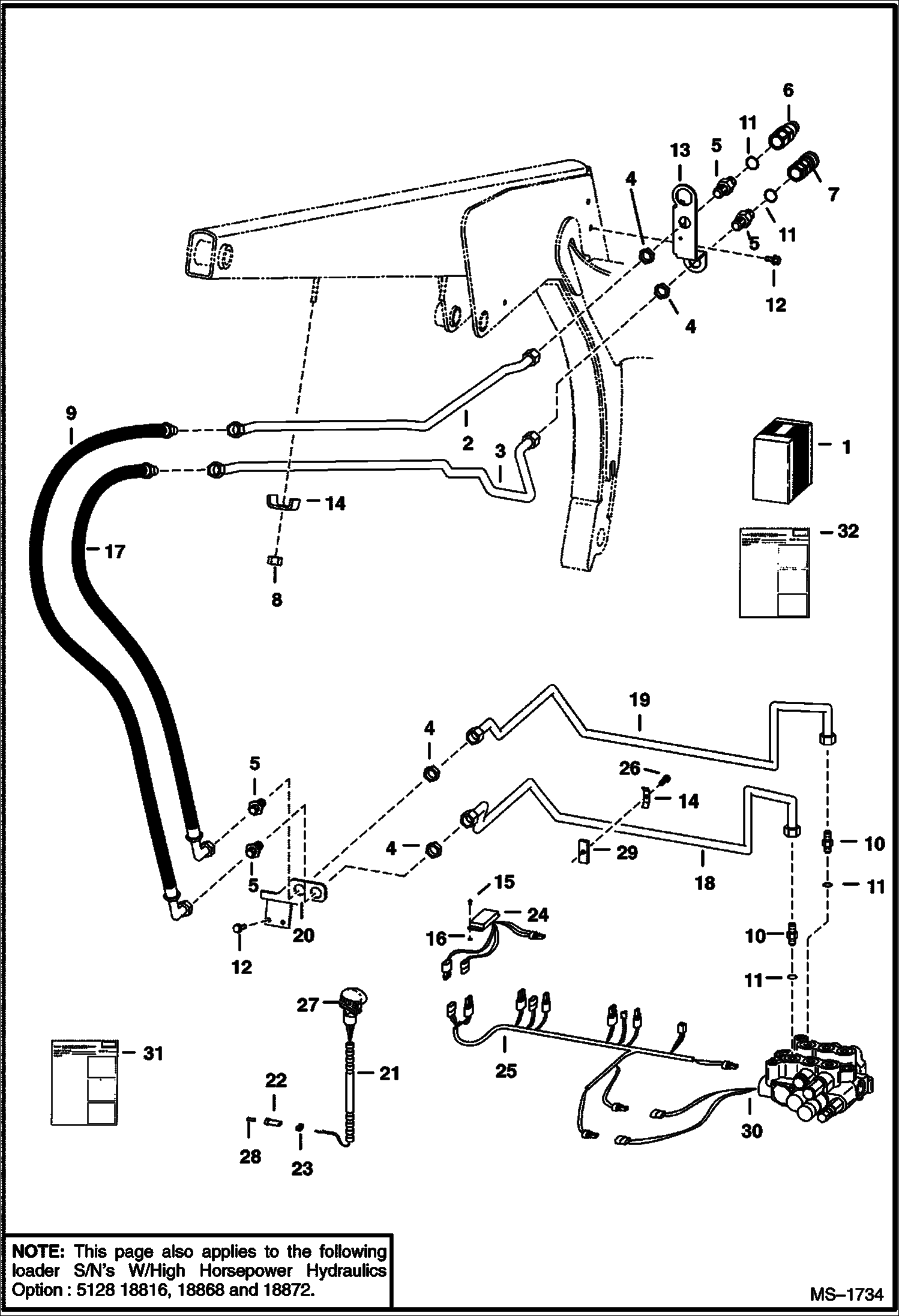

Запчасти Bobcat 800s FRONT AUXILIARY KIT (For Proportional Auxiliaries) (W/F.F. Couplers) (S/N 5128 21868 & Above, 5084 18260 & Above & 5097 18393 & Above-SEE NOTE) ACCESSORIES & OPTIONS

1

KIT NLA - Order Components - front aux. hyd. - Ref. 2-9 & 12-30 - Was 6712354 - A

2

6711914

TUBE See Illustration HIGH HORSEPOWER HYDRAULICS/ B20405 Ref. 22 FOR 853H TUBE

3

6711915

TUBE

4

86F8

NUT 5

5

45K8

ADAPTOR

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

6

6679841

SEAL Was 6672026 - A

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

8

59D6

NUT

9

6706151

HOSE

10

15K8

FITTING W/Ref. 11 - Not in Kit

11

79K12

O RING 10 Not in Kit

12

84G3716

SCREW 5 Was 84G003112B - B

13

6711912

BRACKET See Illustration HIGH HORSEPOWER HYDRAULICS/ B20405 Ref. 18 FOR 853H BRACKET

14

6502203

CLAMP

15

10C412

BOLT

16

61D4

NUT 5

17

6706938

HOSE

18

6705950

TUBE

19

6705949

TUBE

20

6705948

BRACKET

21

6680456

HANDLE, 2-SWITCH PWM R.H. - PWM - Was 6705922 - A

22

6662246

CONNECTOR 6 - pin

23

6662252

LOCK 6 - pin

24

6673757

CONTROLLER Was 6668773 - A

25

6710330

HARNESS

26

17C544

BOLT

27

6706734

KIT handle - Ref. 21 - 23 & 28 - not in kit

28

6665370

PLUG

29

6702548

PAD

30

6717706

COIL, 10 VOLT 10 volt - not in kit - Was 6666547 - A

30

6676566

NUT

31

6722759

INSTRUCTIONS for Ref. 31 - not in kit

32

6724289

INSTRUCTIONS for Ref. 1
