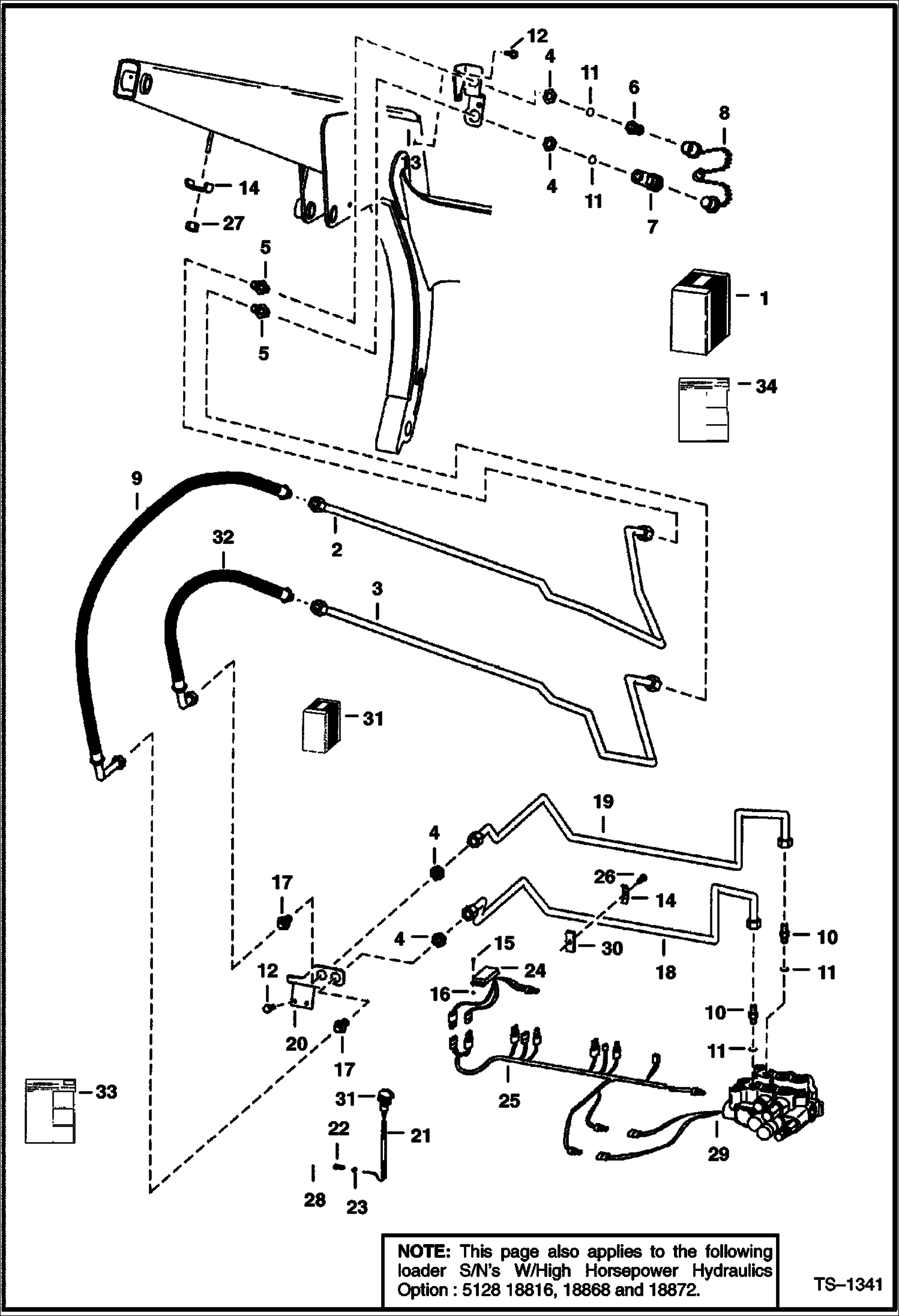

Запчасти Bobcat 800s FRONT AUXILIARY KIT (For Proportional Auxiliaries) (W/Poppet Couplers) (S/N 5128 18874-21867, 5084 18086-18259 & 5097 18113-18392 - SEE NOTE) ACCESSORIES & OPTIONS

1

KIT NLA - front aux. hyd. - Ref. 2-9 & 12-30 - Order 6712354 -Was 6709087 - A

2

6704140

TUBE See Illustration HIGH HORSEPOWER HYDRAULICS/ B20405 Ref. 22 FOR 853H TUBE

3

6704108

TUBE

4

86F8

NUT 5

5

6579875

CONNECTOR

6

6598757

COUPLER, POPPET MALE straight

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

7

6665430

BACKUP RING

8

6513709

CAP PLUG W/Plug Assy. - Rubber

8

6515167

PLUG steel

8

6515168

CAP steel

9

6706151

HOSE

10

15K8

FITTING W/Ref. 11 - Not in Kit

11

79K12

O RING 10 Not in Kit

12

84G3716

SCREW 5 Was 84G003112B - B

13

6706751

BRACKET See Illustration HIGH HORSEPOWER HYDRAULICS/ B20405 Ref. 18 FOR 853H BRACKET

14

6502203

CLAMP

15

10C412

BOLT Was 35C000412B - B

16

61D4

NUT 5 Was 85D000004B - B

17

45K8

ADAPTOR

18

6705950

TUBE

19

6705949

TUBE

20

6705948

BRACKET

21

6680456

HANDLE, 2-SWITCH PWM R.H. - PWM - Was 6705922 - A

22

6662246

CONNECTOR 6 - pin

23

6662252

LOCK 6 - pin

24

6673757

CONTROLLER Was 6668773 - A

25

6710330

HARNESS Was 6706247 - A

26

17C544

BOLT

27

59D6

NUT

28

6665370

PLUG

29

6717706

COIL, 10 VOLT 10 volt - Was 6666547 - A

29

6676566

NUT

30

6702548

PAD

31

6706734

KIT handle - Ref. 21 - 23, 28 & 34

32

6706938

HOSE

33

6722759

INSTRUCTIONS for Ref. 31

34

6724289

INSTRUCTIONS For Ref. 1 - Was 6724287 - B,D
