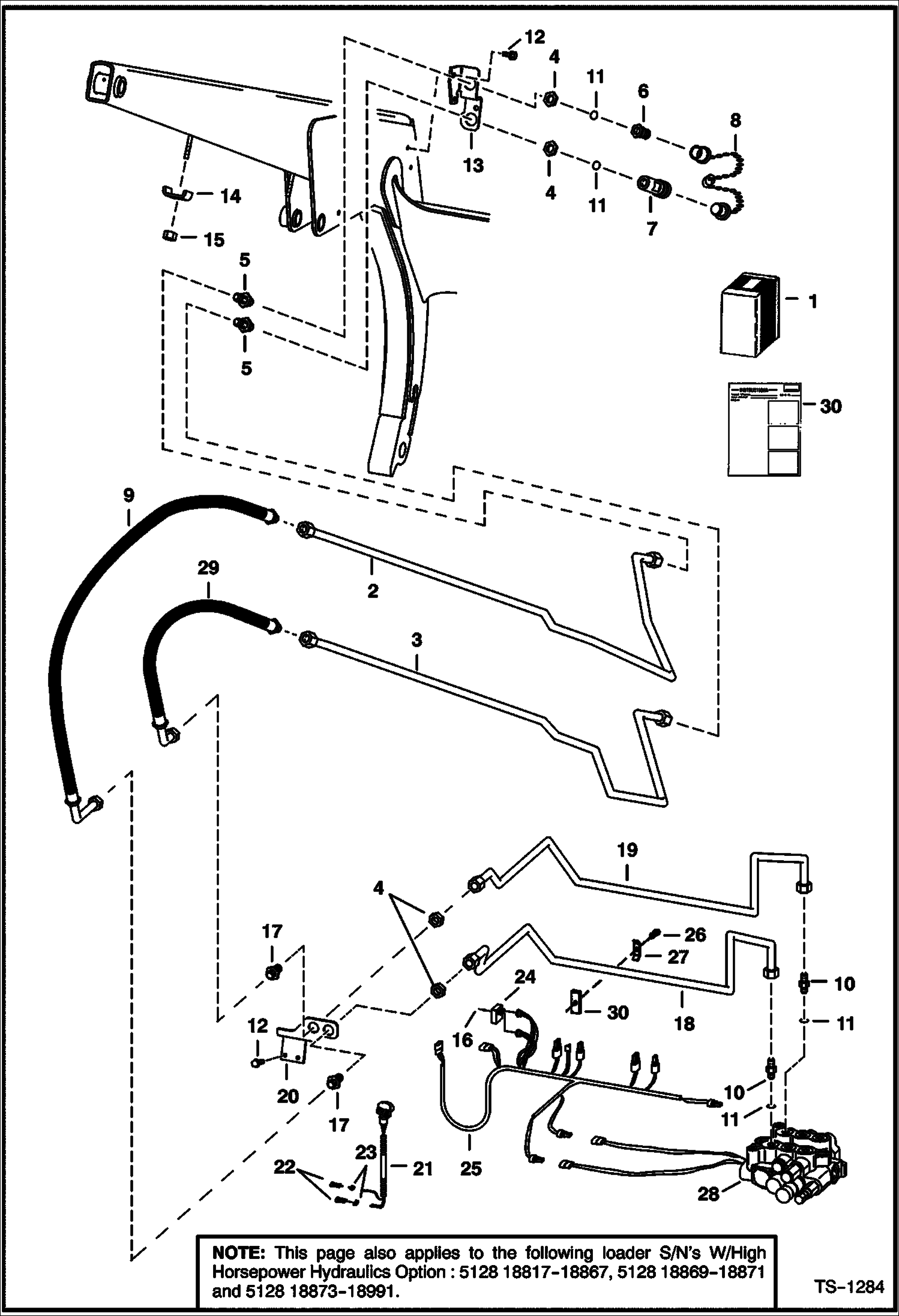

Запчасти Bobcat 800s FRONT AUXILIARY KIT (W/Poppet Couplers) (S/N 5128 16001-18873, 5084 18001-18085, 5097 18001-18112 - SEE NOTE) ACCESSORIES & OPTIONS

1

6709079

KIT front aux. hyd.- Ref. 2-9, 12-27, 29 & 30

2

6704140

TUBE See Illustration HIGH HORSEPOWER HYDRAULICS/ B20405 Ref. 22 FOR 853H TUBE

3

6704108

TUBE

4

86F8

NUT 5

5

6579875

CONNECTOR

6

6598757

COUPLER, POPPET MALE straight

7

6598758

COUPLER, POPPET FEMALE straight

7

48K16

O RING 10

7

6665430

BACKUP RING

8

6513709

CAP PLUG W/Plug Assy. - Rubber

8

6515167

PLUG steel

8

6515168

CAP steel

9

6706151

HOSE

10

15K8

FITTING W/Ref. 11 - Not in Kit

11

79K12

O RING 10 Not in Kit

12

84G3716

SCREW 5 Was 84G3112B - B

13

6706751

BRACKET See Illustration HIGH HORSEPOWER HYDRAULICS/ B20405 Ref. 18 FOR 853H BRACKET

14

6502203

CLAMP

15

59D6

NUT

16

85D4

NUT 5

17

45K8

ADAPTOR

18

6705950

TUBE

19

6705949

TUBE

20

6705948

BRACKET

21

6680414

HANDLE ASSY. Was 6705921 - A

22

6641179

CONNECTOR 2-pin

22

6640699

CONNECTOR 3-pin

23

6641180

LOCK Use W/ 2-pin connector

23

6640700

LOCK 3-pin

24

6671669

MODULE, CONTROL AUX Was 6669529 - A

25

6708076

HARNESS

26

17C544

BOLT

27

6702548

PAD

28

6717708

COIL, 14 VOLT 14 volt - Not in Kit - Was 6665759 - A

29

6706938

HOSE

30

6724287

INSTRUCTIONS
