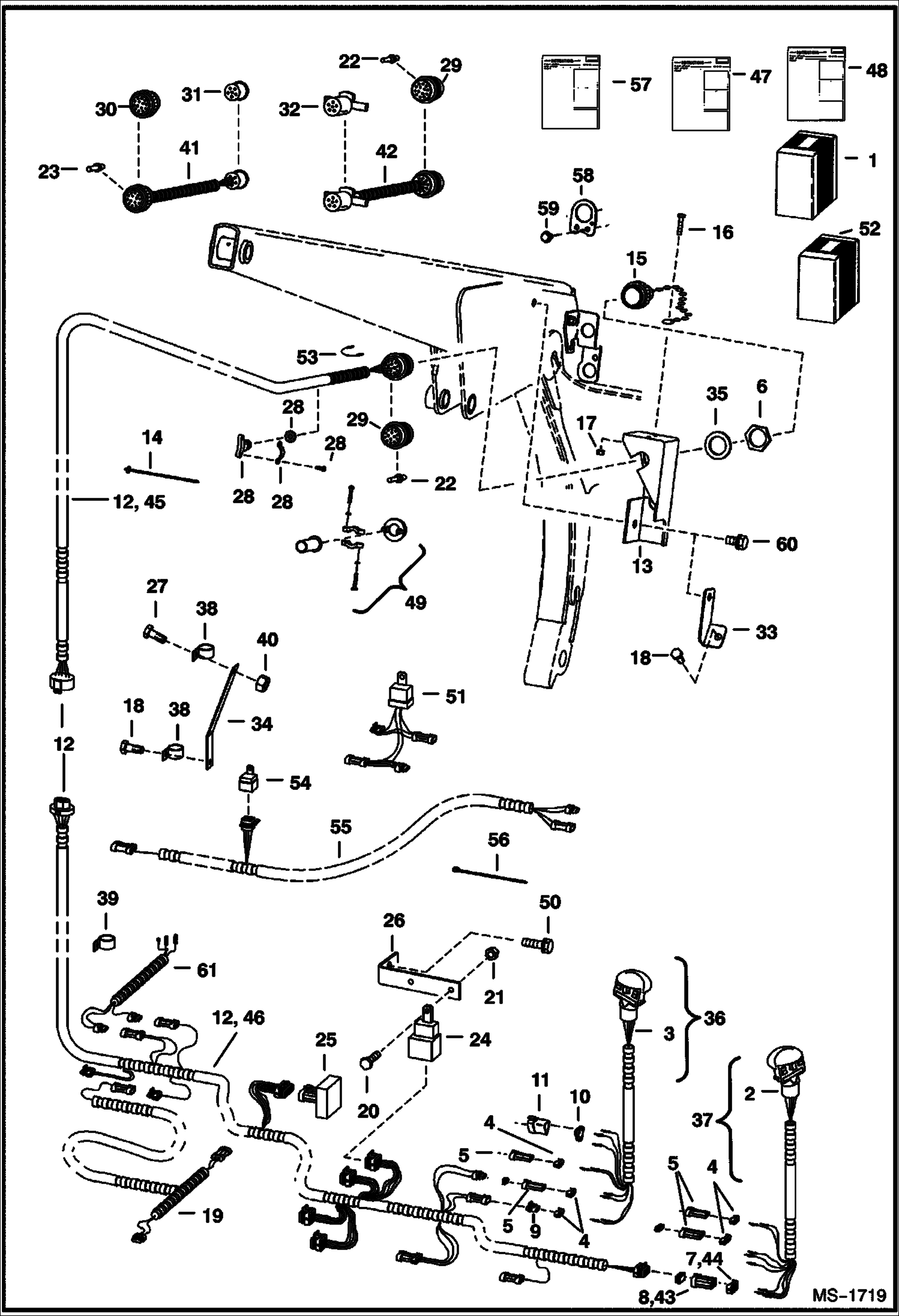

Запчасти Bobcat 800s ELECTRICAL CONTROLS KIT (Attachments) (For Proportional Auxiliaries) (S/N 5128 18874 & Above, 5084 18086 & Above & 5097 18113 & Above) ACCESSORIES & OPTIONS

1

KIT NLA - controls - AHC - Order Ref, 13-18, 20, 21, 25, 26, 39, 45, 46, 48, 54, 56, 58, and 59 - Was 6713013 - A

1

6712820

KIT Controls - W/ Handles - Ref. 2-29, 33-40, and 43-48 - Was NLA - A

2

6680457

HNDL/4 SWITCH PWM R.H. - Also Order Ref. 4, 5, 7, 8, 43. and 33 - Was 6705924 - A

2

6640690

PIN

2

6641176

SEAL

2

6662257

PIN

3

6680412

HANDLE ASSY L.H. - Also Order Ref. 4, 5, and 9-11 - Was 6707976 - A

3

6640690

PIN

3

6640691

PIN

3

6641176

SEAL

3

6662257

PIN

3

6680447

DECAL Was 6677370 - A

4

6641180

LOCK Use W/ 2-pin connector

4

6640700

LOCK 3-pin

5

6641179

CONNECTOR 2-pin

5

6640699

CONNECTOR 3-pin

6

6664036

NUT

7

6641181

LOCK 6-pin

8

6641173

CONNECTOR 6-pin

9

6641178

CONNECTOR 2-pin

10

6664800

LOCK 3-pin triangle

11

6664599

CONNECTOR 3-pin triangle

12

HARNESS NLA - One piece - Order Ref. 45, 46, 6711621 Mount & (4) of 6665005 Solenoid - Was 6705901 - A

13

6706753

MOUNT Use W/Ref. 12

13

6711621

MOUNT Use W/Ref. 45

14

6624289

STRAP, TIE Was 6610510 - A

15

6664035

CAP

16

45G508

BOLT

17

50D5

NUT

18

84G3712

BOLT 5

19

6706552

HARNESS for grader

20

45G1212

BOLT

21

50D12

NUT

22

6664040

PIN

23

6664041

SOCKET

24

6651975

SWITCH relay - Use W/Ref. 12

24

6670312

SWITCH, MAGNETIC relay - Use W/Ref. 45 - Was 6665005 - A

25

6664388

DIODE memory

26

6702650

MOUNT

27

17C612

BOLT 5

28

6649028

CLAMP

29

6667569

CONNECTOR, RECEPTACLE W/Ref. 49 - Also Order (14) of Ref. 22 - Was 6664039 - A

30

6665001

CONNECTOR, ELECTRICAL W/Ref. 49 - not in kits - also order (6) of Ref. 23 - Was 6664034 - A

31

6664181

CONNECTOR Not in Kits

32

6664182

CONNECTOR Not in Kits

33

6709176

BRACKET

34

6709177

BRACKET

35

6664037

WASHER

36

6706568

KIT handle - Ref. 3-5, 9 - 11 & 47

37

6706735

KIT handle - W/Ref. 2, 4, 5, 7, 8, 43, 44 & 47

38

30H46

CLIP

39

30H49

CLAMP

40

85D6

NUT, 5

41

6706391

HARNESS Not in Kits - connects new loader harness to old attachment harness - W/Ref. 30 & 31

42

6706392

HARNESS Not in Kits - connects old loader harness to new attachment harness - W/Ref. 29 & 32

43

6662246

CONNECTOR 6 - pin

44

6662252

LOCK 6 - pin

45

6710299

HARNESS, ATTACHMENT PWM lift arm

46

6710300

HARNESS chassis

47

6722759

INSTRUCTIONS FOR REF. 3 - 36

48

6724569

INSTRUCTIONS for elec. control kit - for HHH option

48

6724569

INSTRUCTIONS

48

6724569

INSTRUCTIONS

48

6724594

INSTRUCTIONS for elec. control kit - for HHH option

48

6724594

INSTRUCTIONS

48

6724594

INSTRUCTIONS

49

6669286

CLAMP W/Saddles

50

84G3708

SCREW

51

6669201

ADAPTER jumper harness - not in kit - See 6724569 instructions

51

6669201

ADAPTER

51

6669201

ADAPTER

52

6716799

KIT dual function aux. - Ref.

53

6716844

HARNESS jumper

54

6670312

SWITCH, MAGNETIC relay

55

6716798

HARNESS KP diverter

56

6624289

STRAP, TIE

57

6900601

INSTRUCTIONS

58

6714999

MOUNT

59

84G3112

BOLT 5

60

84G3716

SCREW 5

61

6706446

HARNESS
