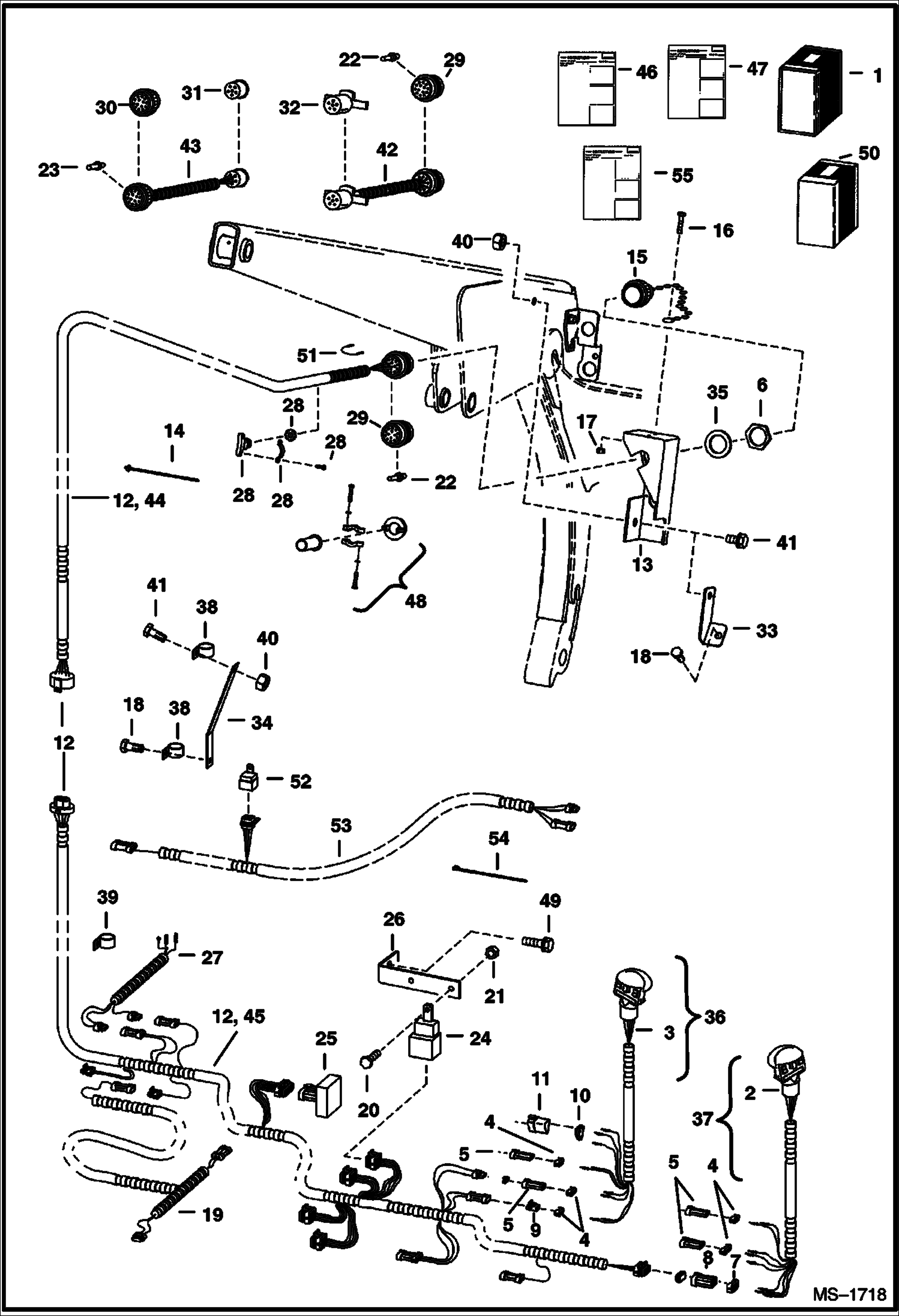

Запчасти Bobcat 800s ELECTRICAL CONTROLS KIT (Attachments) (S/N 5128 16001-18873, 5084 18001-18085 & 5097 18001-18112) ACCESSORIES & OPTIONS

1

KIT SALES - controls - W/handles -Ref. 2-29, 33-41 & 44-47 -Order attachment controls kit from Gwinner Sales 6709228 -also Order R.H. handle assy. 6706567 from Chicago parts

2

6680413

HANDLE ASSY R.H. - Also Order Ref. 4, 5, 7, and 8 - Was 6706340 - A

2

6640690

PIN

2

6641176

SEAL

3

6680412

HANDLE ASSY L.H. - Also Order Ref. 4, 5, &9-11 - Was 6707976 - A

3

6640690

PIN

3

6640691

PIN

3

6641176

SEAL

3

6662257

PIN

3

6680447

DECAL Was 6677370 - A

4

6641180

LOCK Use W/ 2-pin connector

4

6640700

LOCK 3-pin

5

6641179

CONNECTOR 2-pin

5

6640699

CONNECTOR 3-pin

6

6664036

NUT

7

6641181

LOCK 6-pin

8

6641173

CONNECTOR 6-pin

9

6641178

CONNECTOR 2-pin

10

6664800

LOCK 3-pin triangle - Was 6664186 - B

11

6664599

CONNECTOR 3-pin triangle - Was 6664184 - B

12

HARNESS NLA - One piece - Order Ref. 44, 45, 6711621 Mount & (4) of 6665005 Solenoid - Was 6705901 - A

13

6706753

MOUNT Use W/Ref. 12

13

6711621

MOUNT Use W/Ref. 44

14

6624289

STRAP, TIE Was 6610510 - A

15

6664035

CAP

16

45G508

BOLT

17

50D5

NUT

18

84G3712

BOLT 5 Was 84G003716B - B

19

6706552

HARNESS for grader

20

45G1212

BOLT

21

50D12

NUT

22

6664040

PIN male

23

6664041

SOCKET female

24

6651975

SWITCH relay - Use W/Ref. 12

24

6670312

SWITCH, MAGNETIC relay - Use W/Ref. 44 - Was 6665005 - A

25

6664388

DIODE memory

26

6702650

MOUNT

27

6706446

HARNESS

28

6649028

CLAMP

29

6667569

CONNECTOR, RECEPTACLE W/ Ref. 48 - Also Order (14) of Ref. 2 - Was 6664039

30

6665001

CONNECTOR, ELECTRICAL W/ Ref. 48 - lso Order (6) of Ref. 23 - Not in Kits - Was 6664034

31

6664181

CONNECTOR trailer style - Not in Kits

32

6664182

CONNECTOR trailer style - Not in Kits

33

6709176

BRACKET

34

6709177

BRACKET

35

6664037

WASHER

36

6706568

KIT handle - Ref. 3 - 5 & 9 - 11 & 46

37

6706567

KIT handle - W/Ref. 2, 4, 5, 7, 8 & 46

38

30H46

CLIP

39

30H49

CLAMP

40

85D6

NUT, 5

41

17C612

BOLT 5

42

6706392

HARNESS connects old loader harness to new attachment harness - W/Ref. 29 & 32 - Not in Kits

43

6706391

HARNESS connects new loader harness to old attachment harness - W/Ref. 30 & 31 - Not in Kits

44

6710299

HARNESS, ATTACHMENT PWM lift arm

45

6710300

HARNESS chassis

46

6722759

INSTRUCTIONS FOR REF. 3 - 5 & 9 - 11

47

6722758

INSTRUCTIONS for control elec. kit

48

6669286

CLAMP W/Saddles

49

84G3708

SCREW

50

6716799

KIT dual function aux. - Ref.

51

6716844

HARNESS jumper

52

6670312

SWITCH, MAGNETIC relay

53

6716798

HARNESS KP Deverter

54

6624289

STRAP, TIE

55

6900601

INSTRUCTIONS
