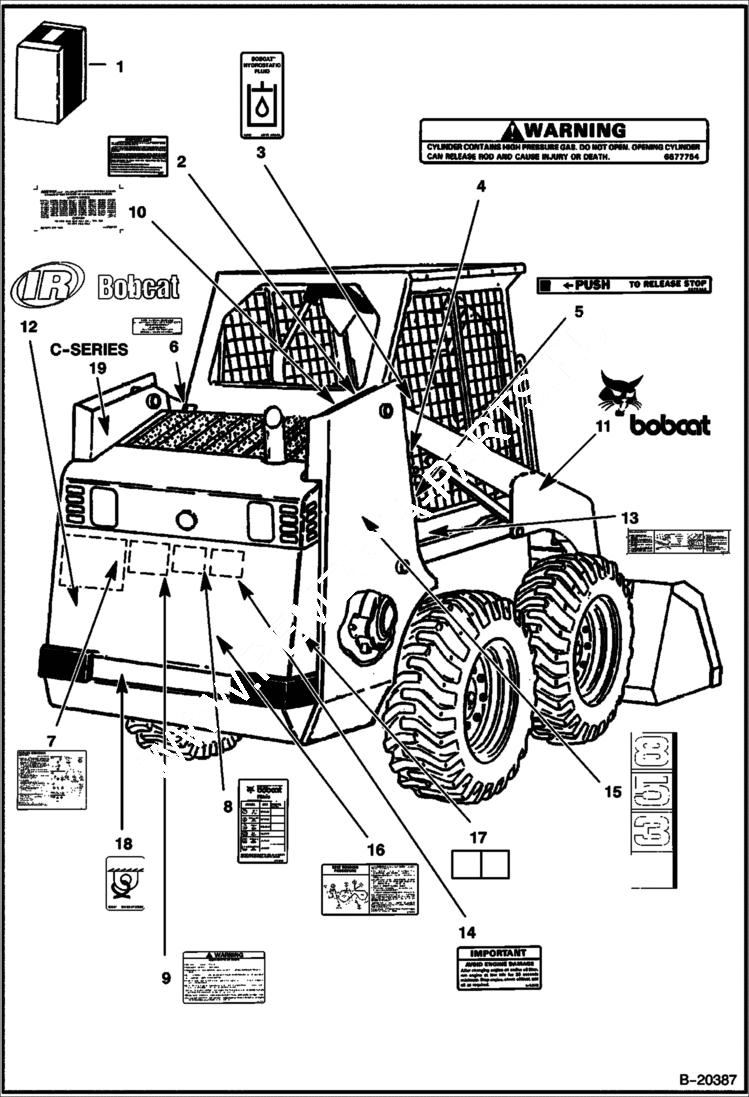

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

6900506

KIT decal

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6708929

DECAL, COOLANT propylene glycol

7

6708212

DECAL service - Was 6578218 - A

8

6703329

DECAL filters

9

6579511

DECAL warning

10

DECAL NLA - patent - Was 6557224 - C

11

6559070

DECAL R.H. - Bobcat head - 25 in x 12 in (635mm x 304,8mm)

11

6727309

DECAL, LOGO RH R.H. - Bobcat head - 20in x10 in (508mm x 254mm) - Was 6702826 - A

11

6559071

DECAL L.H. - Bobcat head - 25in x 12in (635 mm x 304,8 mm)

11

6727308

DECAL, LOGO BOBCAT LH - W/Bobcat head - 20'' x 10'' (508 mm x 254 mm) - Was 6702827 - A

12

DECAL NLA - Bobcat Logo - Was 6727307 - A

13

6706558

DECAL, OPERATION lift arm support

14

6702942

DECAL See Illustration ENGINE & ATTACHING PARTS/ B20383 WARNING

15

6702854

DECAL model no. 853 R.H.

15

6703291

DECAL model no. 853H R.H. - Not in Kit

16

6705221

DECAL belt tension

17

6715991

DECAL fuse - Was 6707786 - A

18

6727595

DECAL Was 6595014 - B

19

6708207

DECAL ''c'' series
