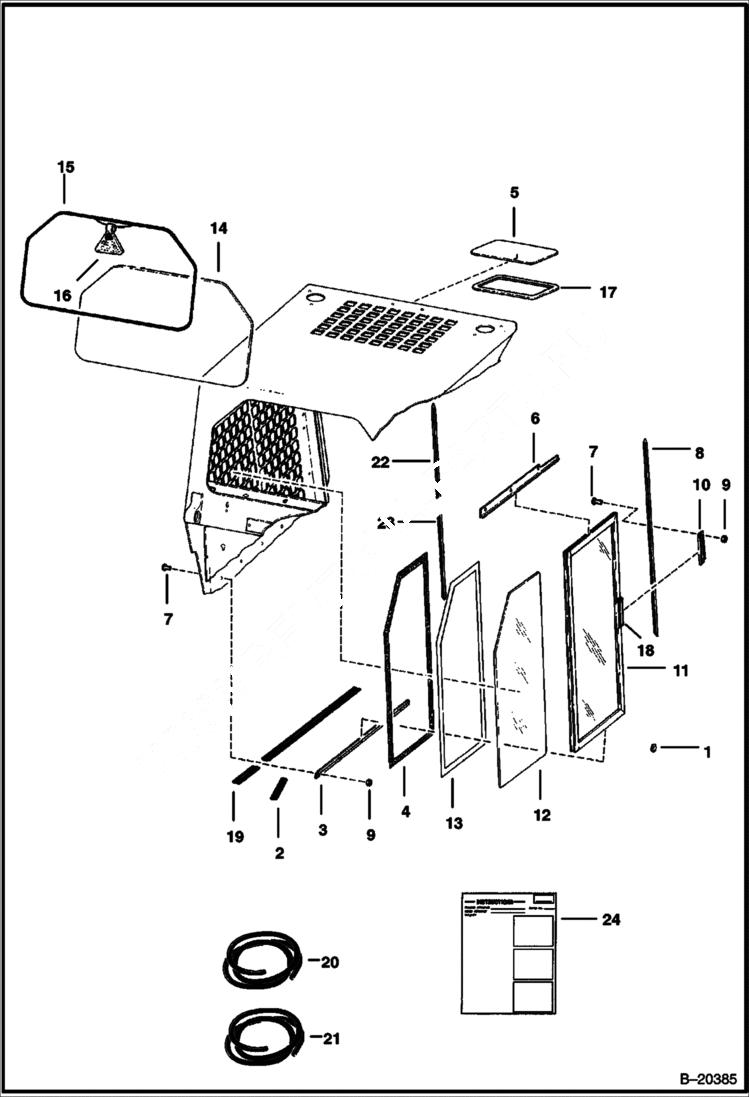

Запчасти Bobcat 800s CAB WINDOWS ACCESSORIES & OPTIONS

1

6632265

PLUG button

2

6513152

SEAL bulk - sold per foot

3

6661689

TRACK LH

3

6661690

TRACK RH

4

6631549

HOOK scotchmate

5

6705735

WINDOW

6

6703160

TRACK LH

6

6703159

TRACK RH

7

35C410

BOLT 5

8

6630919

TRACK R.H.

9

83D4

NUT 10

10

6630924

BRACKET

11

6658143

WINDOW LH

11

6658142

WINDOW RH

12

6702731

WINDOW, CAB

13

6631548

LOOP scotchmate

14

WINDOW NLA - rear - .25 in Thick safety glass - 15 in X 27.5 in - Order 672970 and Ref. 25 Extrusion - Was 6701651 - A

14

6729730

WINDOW Rear - 25 in. thick safety glass - 26.84 in X 14.4 in

15

EXTRUSION NLA - 81.5''(2070 mm) long - Order Ref. 21

15

CORD NLA - 81.5''(2070 mm) long - Order Ref. 21 - Also Order Ref. 16 (6731478)

16

6731478

EXIT TAG Was 6559515 - A

17

6664351

SEAL Use W/cab headliner

17

6665012

SEAL Use W/O cab headliner

18

6659949

LATCH

19

SEAL NLA - 24.5''(622mm) long - Order Ref. 20

20

6555351

SEAL bulk - sold per foot

21

6665568

EXTRUSION bulk - Sold Per Foot - Use W/6701651 WINDOW - Was 6658352 - B

21

6554149

CORD, BULK/FT bulk - sold per foot

21

6675387

EXTRUSION bulk - sold per foot - Use W/Ref. 14 (6729730 window)

21

6554149

CORD, BULK/FT bulk - sold per foot

22

6706744

TRACK LH - top half

23

6706745

TRACK LH - bottom half

24

6566957

INSTRUCTIONS Side Windows

24

6720320

INSTRUCTIONS rear window

24

6720598

INSTRUCTIONS top window
