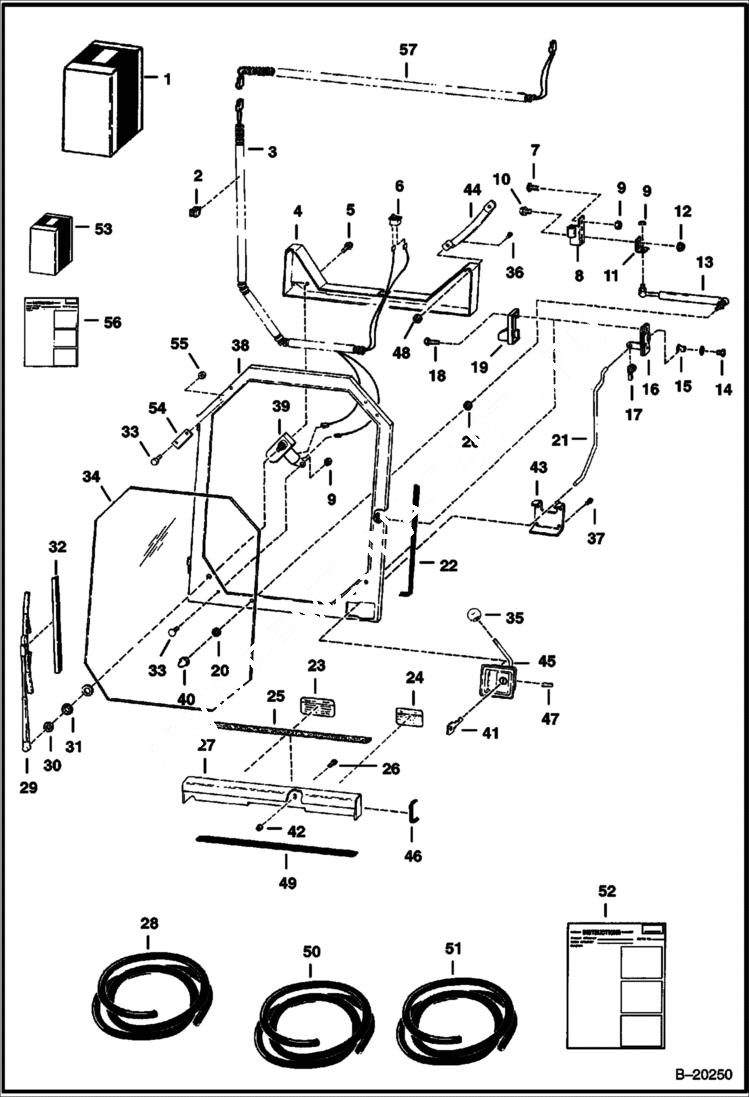

Запчасти Bobcat 800s CAB DOOR (R.H. Hinged) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2 - 57-Order 6708973 Door Kit,6708975 Shield Kit & 6708225 Harness - Was 6579342 - A

2

30H37

CLAMP

3

6568739

HARNESS

4

6704428

SHIELD

5

84G3112

BOLT 5

6

6631009

SWITCH

7

10C512

BOLT Was 5663808 - B,D

8

6571715

HINGE

9

83D5

NUT 5

10

35C412

BOLT

11

6568055

BRACKET

12

83D4

NUT 10

13

6630797

GAS SPRING

13

6632221

STUD ball

13

2756257

CLIP spring

14

17C712

BOLT

15

6568047

NUT bushing

16

6660932

LATCH

17

6519480

CLIP Was 6512274 - D

18

35C416

BOLT

19

6568728

SHIELD

20

25E16

WSHR

21

6704425

ROD

22

SEAL NLA - 100''(2540 mm) long - Order Ref. 51

23

6579510

DECAL

24

6563410

DECAL

25

6564833

SAFETY TREAD

26

35C616

BOLT 5

27

6579324

SHIELD

28

6555351

SEAL bulk - sold per foot

29

6631008

ARM

30

NUT NSS

31

SEAL NSS

32

6630943

BLADE wiper

33

25G510

BOLT

34

6568705

WINDOW See BTI293 1/4'' Plastic - - Was NSS - D

35

6647635

KNOB

36

7G416

BOLT

37

45G1008

BOLT

38

6704431

DOOR W/Ref. 34

39

6620642

MOTOR wiper - W/Ref. 30 & 31

39

GEAR NLA - Was 6631927 - A

39

961528

PK PARTS

39

6631928

SHAFT W/spline

40

46D5

NUT

41

6632560

KEY

42

57D6

NUT 5

43

6704426

RETAINER

44

6631935

HANDLE

45

6641274

LATCH

46

SEAL NLA - 6'' (152mm) long - Order Ref. 28

47

6662834

SPRING

48

7160765

NUT Was 6660988 - A

49

SEAL NLA - 28'' (711mm) long - Order Ref. 50

50

6513152

SEAL bulk - sold per foot

51

6568704

MOULDING bulk - Sold Per Foot

52

6570929

INSTRUCTIONS

53

6708990

KIT window retainer-Ref. 33 & 54-56

54

6708850

RETAINER

55

61D5

NUT

56

6724279

INSTRUCTIONS

57

6708225

HARNESS
