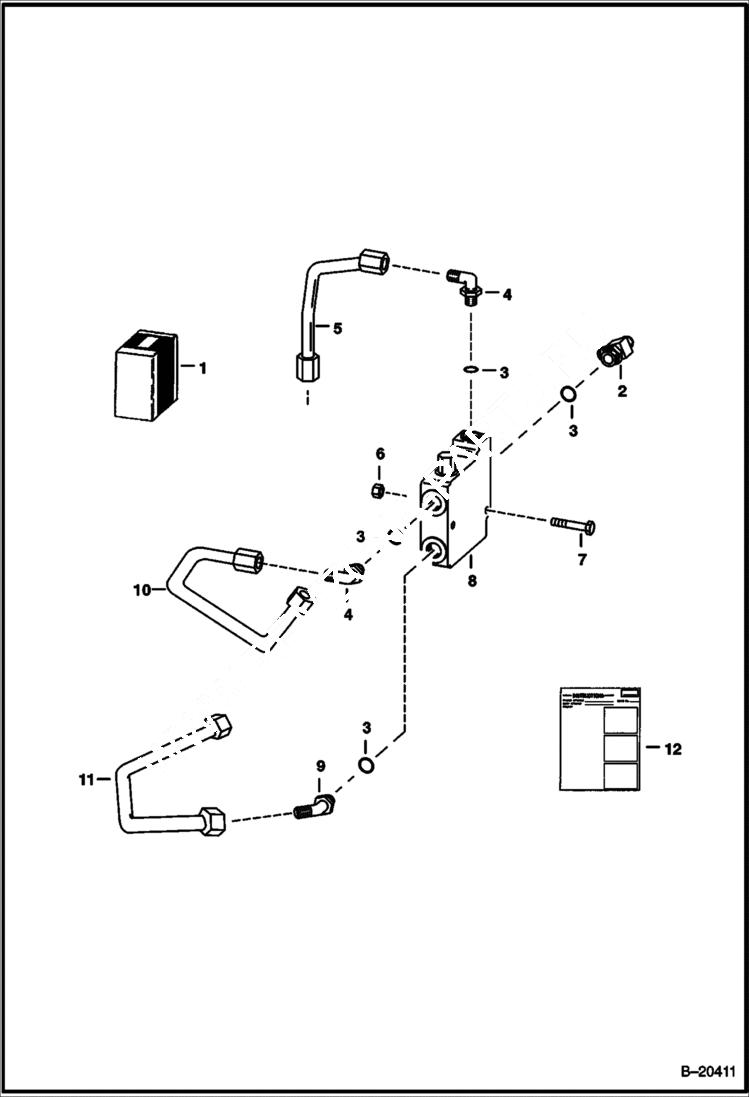

Запчасти Bobcat 800s BUCKET POSITIONING VALVE KIT ACCESSORIES & OPTIONS

1

6708156

KIT Ref. 2-12 - BPV equipped w/solenoid - See Installation Instruction 6720321 for other parts required for on/off function

2

6578183

TEE W/Ref. 3

3

79K10

O RING 10

4

17K7

ELBOW W/Ref. 3

5

6707741

TUBE

6

85D5

NUT 5

7

17C540

BOLT

8

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - Order 6673959 valve- If loader is not equipped with an on/off switch, also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 load

9

18K7

FITTING W/Ref. 3

10

6707025

TUBE

11

6707022

TUBE

12

6724042

INSTRUCTIONS
